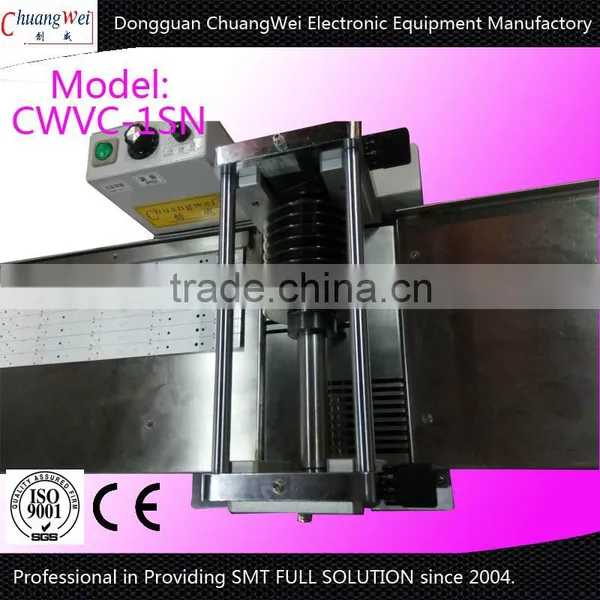

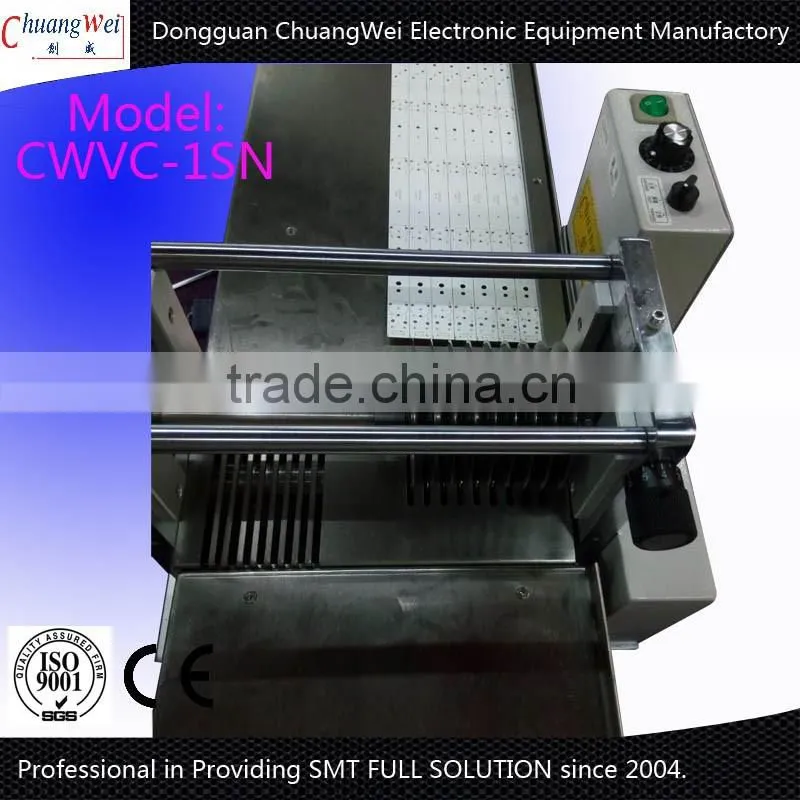

V-cut PCB plate Machine
V-cut PCB plate Machine features:
1. 9 pairs of blades is available
2. Configuration of the blades is adjusted toindividual PCB
3. Sensors are used to monitor the separating process
4. The PCBs are placed either by hand or they feed automatically
by a loading station
5. Easy operating
6. Could be adjusted according to PCB sizes and customers'
requirements
7. Could be customized made as customers' request
V-cut PCB plate Machine video:
/watch?v=yXh6U4maLEs
V-cut PCB plate Machine sepecification:
Max cutting length | No limit |
Min cutting length | 100mm |
Cutting width | 8-225mm |
Blade quantity | max 9 sets |
Min PCB width | 8mm |
PCB thickness | 0.8-3.5mm |
Feeding speed | 0-500mm/s |
Blade material(auto-lock function) | Imported high precision steel |
Voltage | 110-220V |
Dimension | 1155*405*330mm |
Packaging weight | 70kgs |
V-cut PCB plate Machine details:
Production flow:
