*Blade Rolling Type V-CUT PCB Depanelizer***depaneling Short or Long Rigid PCB **CWVC-1S

Dongguan Chuangwei Electronic Equipment Manufactory
*Blade Rolling Type V-CUT PCB Depanelizer***depaneling Short or Long Rigid PCB **CWVC-1S thumbnail-1
*Blade Rolling Type V-CUT PCB Depanelizer***depaneling Short or Long Rigid PCB **CWVC-1S photo-1
US$ 1 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Chuangwei
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Chuangwei
Model Number CWVC-1SJ **professional in PCB depanelizer
Voltage 110V/220V
Power(W) 60W
Weight 25KG
Dimension(L*W*H) 420X 280 X 400mm
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

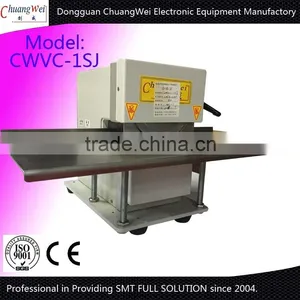

*Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S

Chuangwei motor-driven V-CUT PCB depanelizer machine
1.Max. PCB depaneling length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use




Chuangwei motor-driven V-CUT PCB  depanelizer machine specifications:


ModelCWVC-1SJ
Max. PCB depaneling lengthunlimited
PCB depaneling thickness1.0-3.5mm
Blade amountup and down 2 circular blades
PCB depaneling modedown circular blade with motor-driven
PCB depaneling speed0~400mm/s
Voltage and Power110/220V   60W
Machine Size420X 280 X 400mm
Machine Weight25Kg
workbenchoptional(can make different length according to your board)





Chuangwei motor-driven V-CUT PCB  depanelizer machine features :

1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.





 *** Chuangwei motor-driven V-CUT  PCB  depanelizer machine  video please see below:   ***

/watch?v=ssiEW4hqQxo

/edit?ns=1&video_id=_KHLRBnb7rs
/v_show/id_XNTkwMTM0NDc2.html





***Chuangwei PCB   depanelizer machine***
 ***From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB depaneling machine base your actual requires.
***PCB depaneling machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB depanelizer machine***











 *Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S

*Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S

*Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S*Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S





  seaworthy plywood case,safe, no need to fumigated  (free):





*Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S







ChuangWei more PCB depanelizer machine Products List:

*Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S





ChuangWei PCB depanelizer machine CE Certificate:

 *Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S







*Any interest please contact us freely.
***Chuangwei PCB depanelizer machine***





  **************************************************
Website:
Company:  Dongguan Chuangwei Electronic Equipment Manufactory

 *Blade rolling type V-CUT PCB depanelizer***depaneling short or long rigid PCB **CWVC-1S
