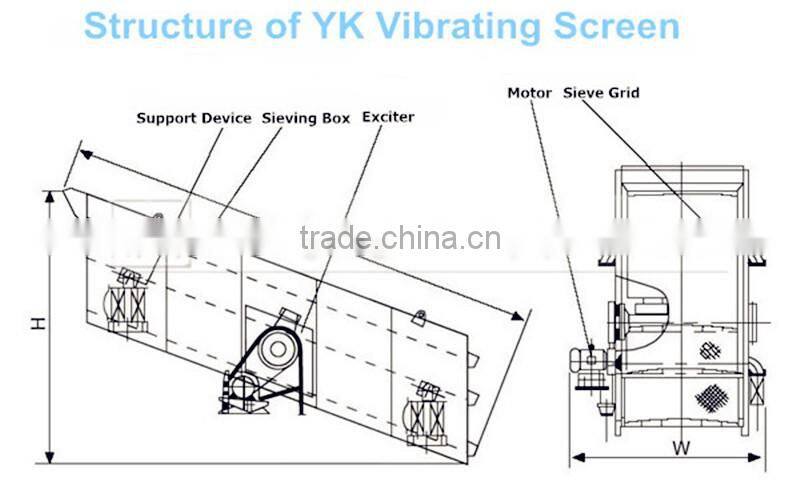

Dingli YK Vibrating Screen consists of the screening box, exciter, suspension (or supporting) device and motor, etc. The motor drives the exciter axis through the triangle belt. With the effect of the centrifugal inertia force caused by the imbalance of weight, the screening box of the round vibrating screen starts vibrating. By changing the eccentric weight, different amplitudes can be achieved.

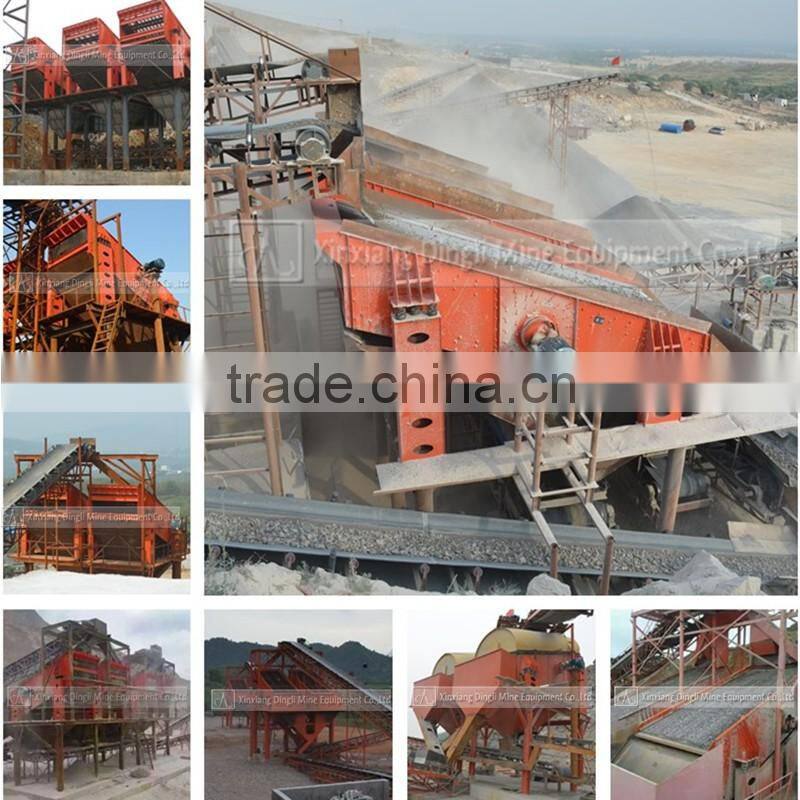

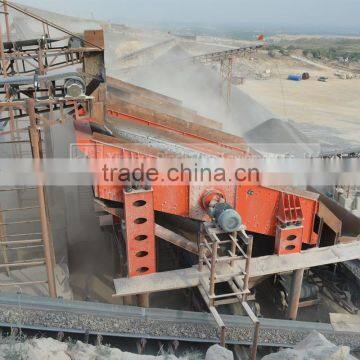

It is widely used in quarry screening aggregate, coal, mining, mineral processing, building materials, electricity and chemical etc. industries for grading application.
Compared to the regular vibrating screen, YK Vibrating Screen has many advantages as following:
(1) Simple and dependable Eccentric type system.
(2) High screening capacity.
(3) High durability. quality steel structure and manganese steel material sieve grid
(4) No transmission of screen panels.
(5) Ready changing of screen plates.
(6) Rigid and vibrating resistance screen body.
YK Vibrating Screen Specifications
Model |
Layer |
Net Area |
Vibrating Frequency |
Double Amplitude |
Power |
Capacity |
Weight |
(m2) |
(r/min) |
(mm) |
(KW) |
(T/h) |
(T) |
||
YK1860 |
1 |
10.8 |
960 |
5-8 |
7.5 |
120-240 |
2.4 |
YK2260 |
1 |
13.2 |
7.5 |
180-280 |
3 |
||
YK2460 |
1 |
14.4 |
7.5 |
210-300 |
3.3 |
||
2YK1860 |
2 |
10.8 |
11 |
120-240 |
4 |
||
2YK2060 |
2 |
12 |
11 |
150-260 |
4.1 |
||
2YK2460 |
2 |
14.4 |
11 |
210-300 |
4.7 |
||
3YK1860 |
3 |
10.8 |
15 |
120-240 |
5 |
||
3YK2260 |
3 |
13.2 |
15 |
180-280 |
5.2 |
||
3YK2460 |
3 |
14.4 |
15 |
210-300 |
5.3 |
||
4YK1860 |
4 |
10.8 |
18.5 |
120-240 |
5.7 |
||
4YK2060 |
4 |
12 |
18.5 |
150-260 |
5.8 |
||
4YK2260 |
4 |
13.2 |
18.5 |
180-280 |
6 |
||
4YK2460 |
4 |
14.4 |
22 |
210-300 |
6.2 |
||
5YK1560 |
5 |
8 |
15 |
80-200 |
5.2 |
||
5YK1860 |
5 |
10.8 |
15 |
120-240 |
5.4 |
||
5YK2060 |
5 |
12 |
15 |
150-260 |
5.6 |
Dingli has the year production capacity of 1000 sets YK vibrating screen. During the past 20 years, we have more than 2000 clients home and abroad. Now quality Dingli vibrating screen has been the prefered option for the related industry.

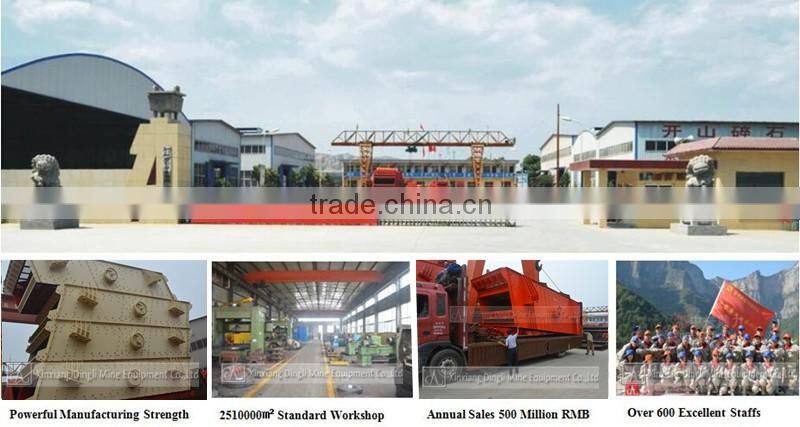

Xinxiang Dingli Mine Equipment CO., LTD. is the leading manufacturer of limestone crusher, vibrating screen,vibrating feeder,sand making and washing machine, belt conveyor etc. mining equipments.
Beginning from one stone aggregate plant, Dingli covers an area of 2.51 million square meters, owns more than 600 employees now. In 2015, Dingli annual sales reached eighty million dollars.
“ZHONGYU DINGLI” has been recognised as Henan province famous trademark. "Growth-oriented enterprises in Henan Province", "AAA credit enterprise" and other honorary titles.
Focus on limestone crushing industry, we aim to supply the best crusher for our clients.
Clients' success is our business.
1.Vibrating scree installation,debugging.
Provide installation files, technical data and related soft copies or videos etc
2. Vibrating screen warranty
The provider guarantee the vibrating screen could meet production technical standard and performance requirements indicated in the agreement.
Warranty: 12 months for the machine after delivery.
3. Vibrating Screen technical support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4. 24 hours website hot line service.
For big vibrating screen order or project,to dispatch technician is negotiable.
1. Q: What's the application of YK vibrating screen?
A: Dingli Vibrating Screen is professional designed for sieving sand and gravels in mining industry.
2. Q: What is the advantges of your vibrating screen?

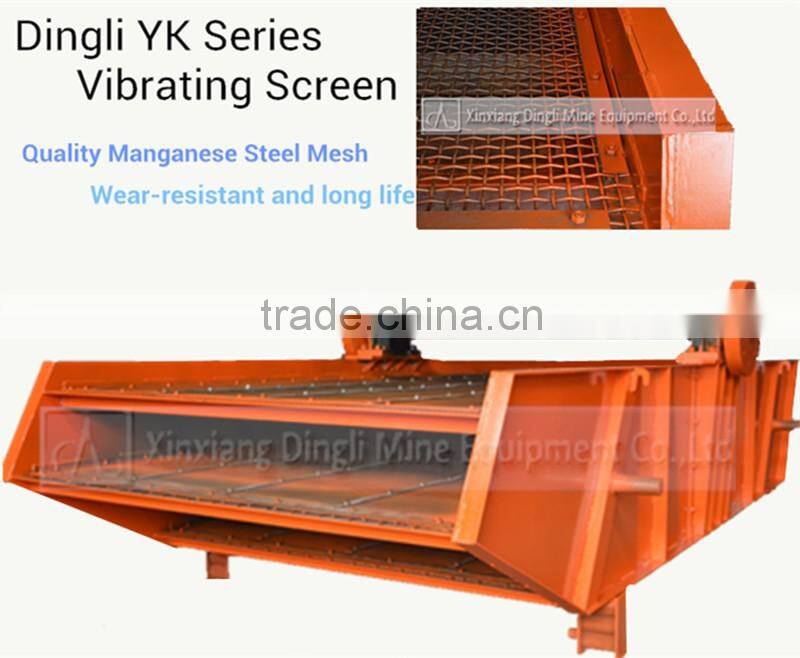

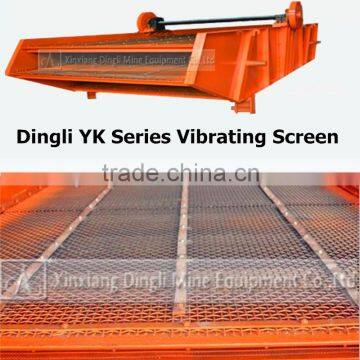

A: Dingli YK Series vibrating screen has the simple structure,low energy consumption and easy operation etc. features. We use manganese steel material sieve mesh grid. It well improves the service life of the whole vibrating screen.
3. Q: What is required for submitting a quotation?
A: Please tell us your raw materials, capacity per hour, number of layers and mesh size. Then we can submit you a formal quotation.
