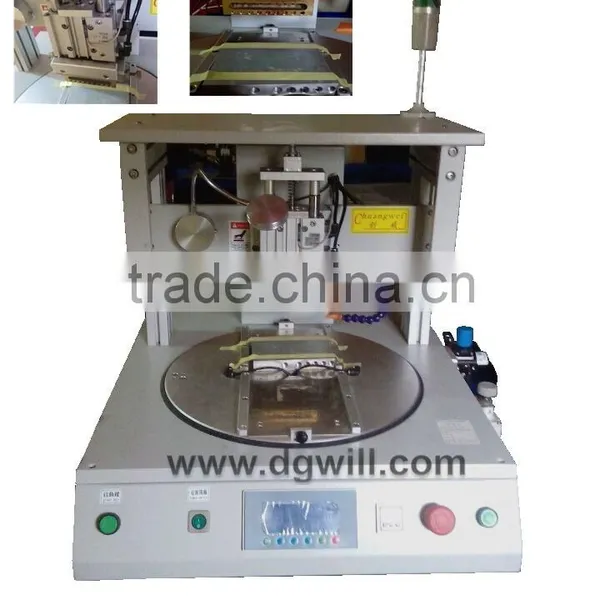

Soldering Machine for Electronic Appliances Production Line
- shenzhen/hongkong
- L/C D/P D/A Credit Card PayPal
You May Like
-
Soldering Robot for Electronic Appliances Production Line
-
Screwdriver Machine for Electronic Appliances Production Line
-
Welding Robot for Electronic Appliances Production Line Quality Choice
-
Auto XYZ Desktop Robotic Screw Driving Machine
-
Industrial Robot for Electronic Appliances Production Line
-
Cnc Machine Shop Durostone/smt Pallet
Product Details
| Place of Origin | Guangdong, China | Brand Name | chuangwei | |
| Model Number | CWPP-1A |
Product Description
soldering robot for Electronic Appliances Production Line , soldering machine for electronic appliances production line
Sepcification :

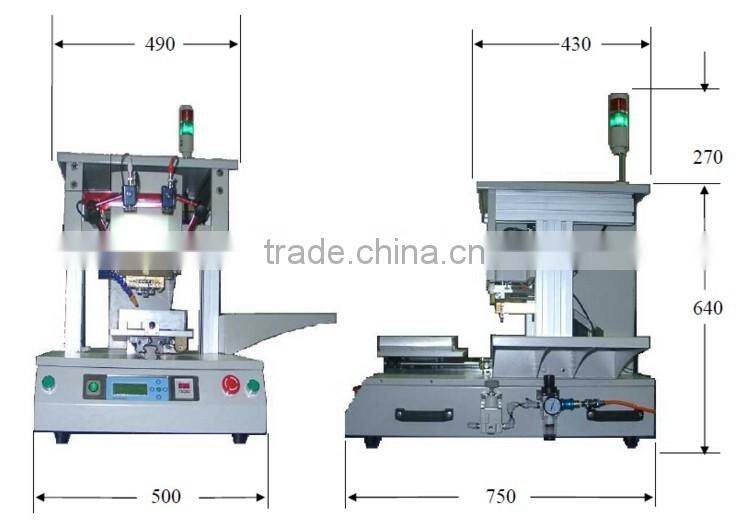

| Machine size: | 660×660×700mm | Pressing time: | 1~99.9s |
| Working area: | Max 200*170mm | Welding precision: | pitch 0.2mm |
| Machine weight: | 89Kg | Thermode head size: | Max 60*3mm |

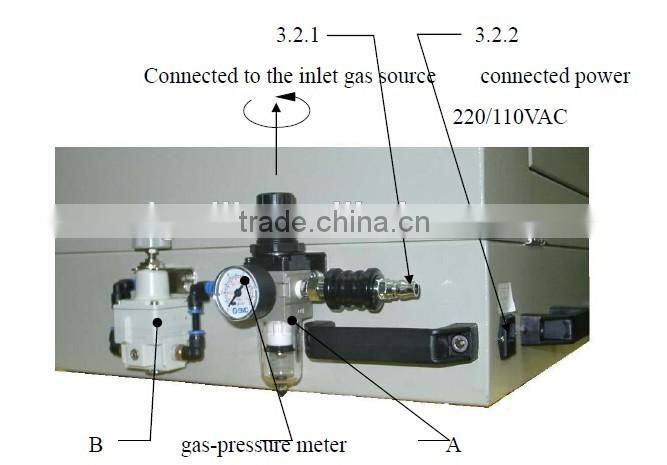

| Working air pressure: | 0.6-0.8Mpa | Fixture quantity: | 1 |

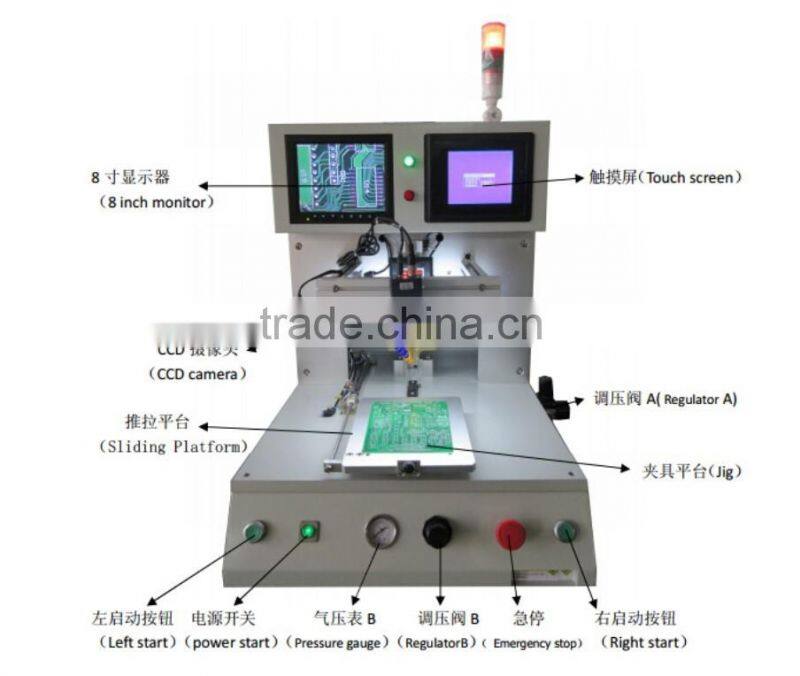

| Power supply: | AC220V±10% 50HZ,2200W | Alignment mode: | CCD + LCD Monitor |
| Temperature settings: | Two | Feeding mode: | Manual |
| Working environment: | 10-60℃,40%-95% | Starting mode: | Press two start buttom |
| Welding pressure: | 1~20Kg | Heating mode: | heating pulse rise time of 1-2 seconds |
| Temperature settings: | RT~500℃ tolerance ±5℃ | Rotation Platform: | Cylinder control,tolerance<0.02mm |
Soldering machine features:
1. According to different products, optional temperature for your choice.
2. Unique material thermode head, ensure the average pressure
3. Has vacuum function, easier for adjustment and positioning.
4. NC temperature, clear and high precision
5. With digital pressure gauge, pressure range can be preset.
6. Microcomputer control, high accuracy and stable.
7. Programmable curve Including pre-heating and reflow soldering temperature.
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
9. Precise PID control, phase angle replace pulse drive.
10. Less Libration, less noise, avoiding voltage fluctuate
11. Real-time display temperature curve and temperature data.
12. Touch screen input data, simplify the operation.
Application:

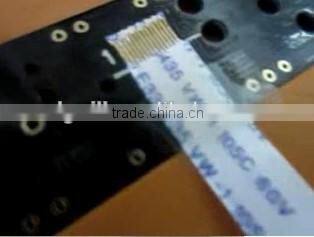

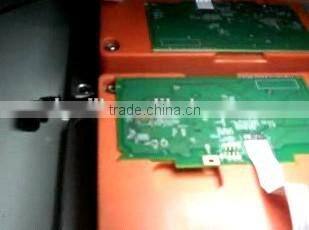

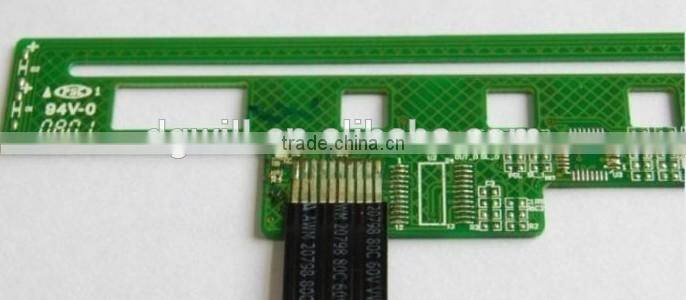

For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp.

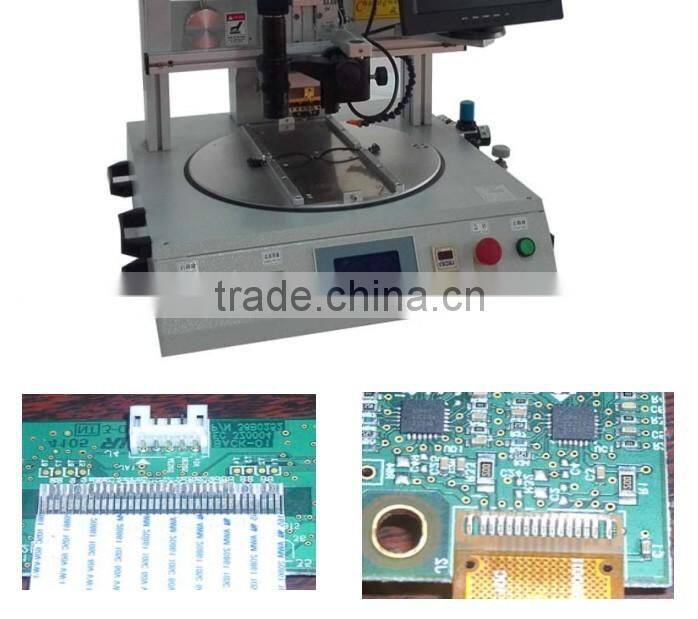

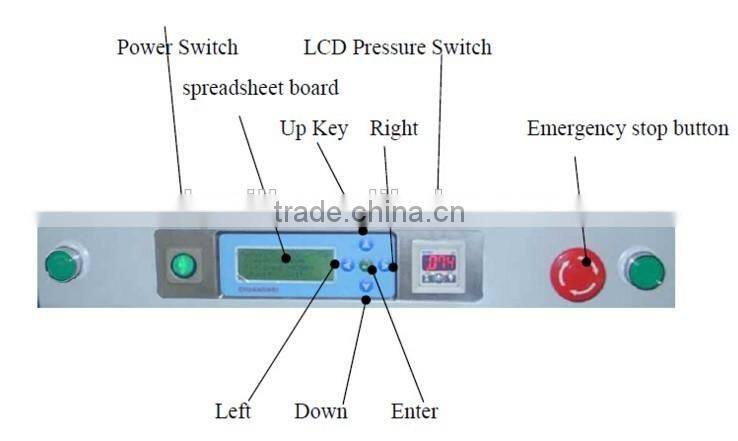

Detail image:
OUR processing:
