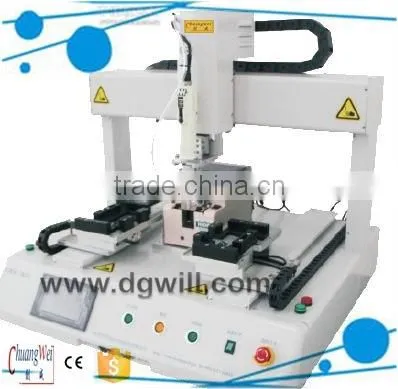

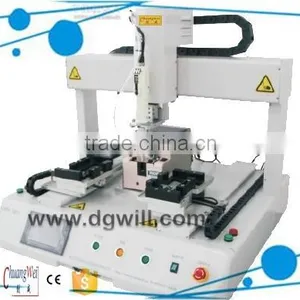

Auto XYZ Desktop Robotic Screw Driving Machine
Features:auto feed screwdriver
1,Auto-intelligent detection for screw loose, screw missing,screw unstable.K576
2,Automatic feeding and lock screws, Any screw hole point and location data can
be stored in the system at any time.auto feed screwdriver
3,Excellent commonality and easy replace Screw M2.0—M5.0
4,Using X,Y,Z axis operation movement system control.
Technical Parameters :
Machine size : 500 * 620 * 630 (L * W * H)
Screwing range : 200 * 390 * 70mm (X * Y * Z)
Drive mode: 4-axis precision stepper drive
Positioning accuracy : ± 0.02mm
Control system : PLC + touch screen control system
Screw delivery method: draw style
Screw feeding quantity :1 -2 group
Screw delivery method: Teach-
Efficiency : Min <1.5s
Program storage capacity : 100 groups , 100 points / group
Communication port : USB
Power supply : 220VAC, 50HZ
Air source : 0.4Mpa
Total Weight : 60kg
Advantages
- One machine can reduce 30% human power, you can reduce two screwing workers.
- can be set through the touch screen coordinate value and the product of the screw , can be applied to a variety of common products . If the screw on the product specification is basically the same , you only need to replace the fixtures they can use the product , the entire process is completed in less than 10 minutes .
- monitor the entire quality of the equipment lock screw , in the event of bad touch will alarm and display the type of defective products .
- Automatic clutch after the screwdriver reach the torque, ensure that each lock screws Vice torque control ± 10%.
- main parts are die steel production , abrasion resistant plastic deformation , equipment, body spray paint , oil and scratch resistant .
- humane touch -screen operation and ease of operation , external technical parameters and manual test function can be directly adjusted by technicians.
- The machine are small, save production line pace, easy moving.
Package : plywood case ,
