Manufacturing Professional ESD workbenchs
workbenches
1.Hot popular and Durable Antistatic.
2. 8 year Professional ESD processed tech.
3.Multifunction use to handle the machine parts.
4.Double-sides Antistatic and Special Design Customized.
About Detall
Detall is a Professional workbenches manufacturer . We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses.
We Produce advanced Static dissipative/ Anti-static Workbench ,Tables, Chairs, Storage Rack ,Trolleys and other Furniture for Electronics manufacturing, Assembly, test & repair, Lab and Computer, automotive workshop and school
We also offer the Electric height adjustable Anti-static Workbench
We also offer the Customized, OEM and ODM Anti-static Workbench
Why Detall
1. Professional workbenches manufacturer for workbench and chairs at Best prices and customer service
2. Detall Anti-static Workbench Adopt the Modular design, Stable structure, durable, strong and easy assembly. Various of functional parts are optional by customer’s need.
3. Drop-shipped direct from the factory at a discount.
4. Detall workbenches use material of Cold rolled Steel with ESD powder coated, ESD laminate top board, Customized ESD workbench has permanent ESD property.
Detail Speicifications:

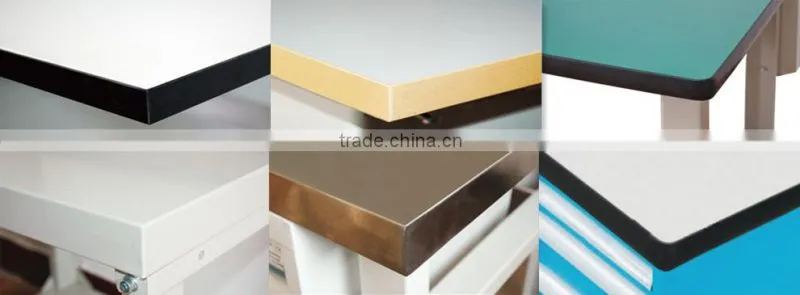

1.Table Top Board:
Detall workbenches Adopt the Permanent ESD property laminate for both table top and bottom side. Fire-proof and durable.
Thickness 25mm and 50mm. Side sealing color : Yellow, Black and Gray
Standard size:Length: 1.2m,1.5m.1.8m ; width: 0.6m, 0.75m, 0.9m
Various material of table top for different using. ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless steel and Durable macromolecule Table top.

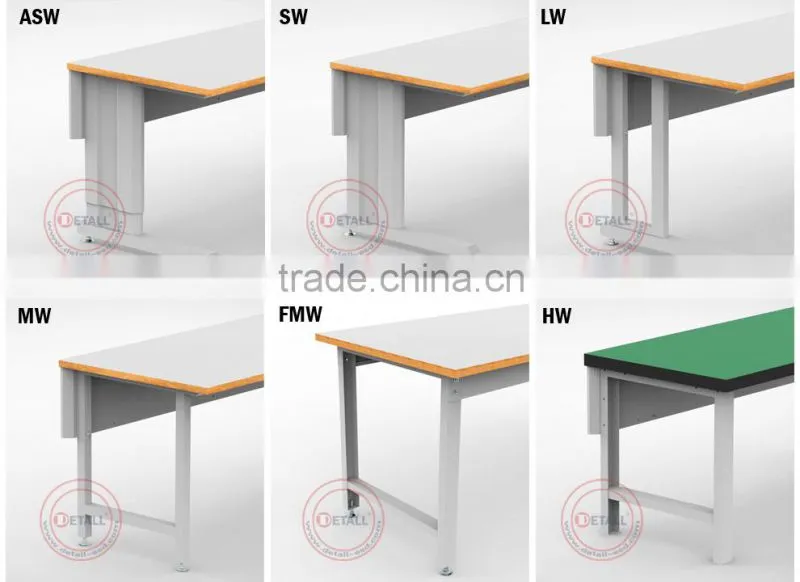

2.Table Top Support
Workbenches support adopt the Cold rolled Steel with ESD powder coated. Highly Precise processed by Automatic Numerical control bending and punching machine. Has permanent ESD property
3.Other Optional Parts with different functions
As a Professional workbenches manufacturer , We have various of Functional Parts that are optional choosed by customer’s need.
| PARTS | ESD Workbenches Standard Specification | Marks | |
| ADJUSTABLE TABLE SUPPORT | Height adjustable 670-1120mm | Length 1800, 1500,1200mm; Deepth:600,750,900mm | Light duty:300kg, Medium Duty:500kg, L type :500kg, Heavy duty:600kg |
| FixedTABLE SUPPORT | Height 760mm | ||
| ANTI-STATIC TABLE TOP | Thickness 25mm or 50mm | Length:1200,1530,1830mm, Width:600,750,900mm | Steel covered, Stainless Covered, Durable top board Optional |
| ANTI-STATIC UPPER SHELF | ESD Laminate or Non-ESD board | Length:1200,1530,1830mm, Width:380mm | Weight loading:50kg |
| Steel Shelf | Also can be installed 15 degree slant | Length:750,900,1200mm. Width:300,400mm | weight loading: 30kg |
| Adjustable Steel shelf | Double Brackets optional | Length"750,900mm. Width:650mm | weight loading: 50kg |
| SUSPENSION RAIL For picking Bins | Also can be installed 15 degree slant | Length:750,900,1200mm. | weight loading: 30kg |
| Panel | Blue, Gray color optional | Length:750, 900, 1200mm. Width:240, 390mm | Placing Drawing paper |
| Perforated panel | Perforated Hole 9*9mm | Length"750, 900, 1200mm. Width:390mm | Using for Tool hooks |
| louvre blade panel | Blue, Gray color optional | Length"750, 900, 1200mm. Width:390mm | Using for Picking Bins |
| Light Brackets | slant LIGHT BRACKET , | Length 1800, 1500,1200mm; Deepth:380mm | LED light optional |
| right-angled Light Bracket | LED light optional | ||
| Simple Light Bracket | LED light optional | ||
| Drawer | Singler Layer | 350×450×125mm | weight loading: 15kg |
| Double Layer | 350×450×250mm | weight loading: 15kg | |
| Triple Layer | 350×450×375mm | weight loading: 15kg | |
| Drawer Cabinet | 350×450×500mm | weight loading: 15kg | |
| Advanced Triple Lyaer | 372×486×500mm | weight loading: 35kg | |
| PARTS OF ENERGY RAIL | Slant type, Vertical Type | length:750,900,1200,1500,1800mm | Europe, UK, Australia and America Standard |

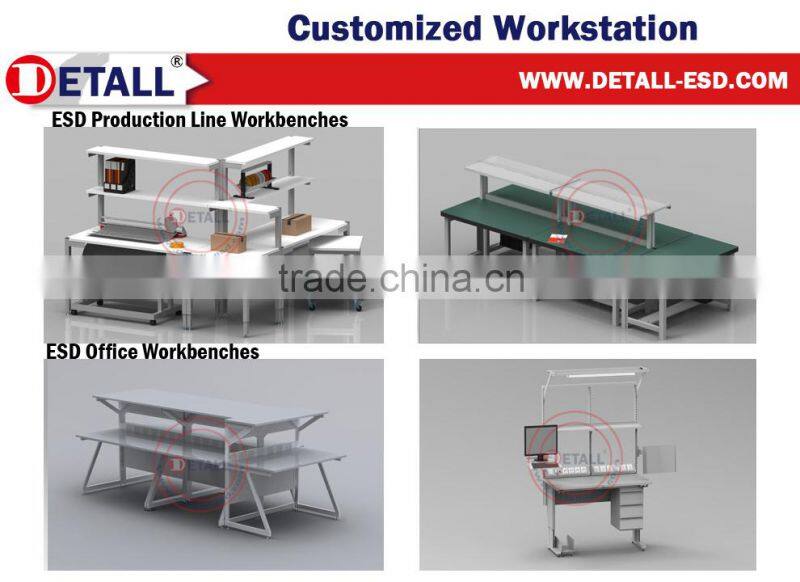

Customized Products
We have great teams that professional trained and experienced to Develop, design, produce and service the customer. We can Highly Customized for Special Size, Configuration and special functional ESD Workbenches for clients.
workbenchs
Packing & Transportation

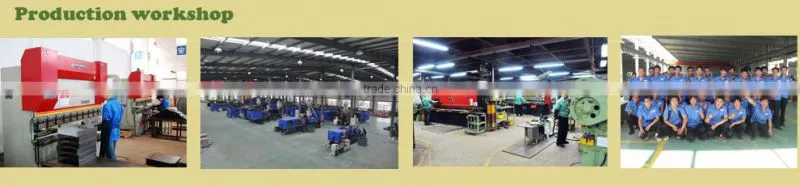

We have the advanced Automatic Numerical control bending and punching machine, and Automatic Spray Coating Line. Products have high accuracy processing such as cutting, punching and bending.
ESD surface coating adhesion force is more than 2H, permanent ESD property
workbenchs
Packing & Transportation
Carton box for standard size Parts.
Outside Export standard plywood packing for Air and Sea shipping.
Lead time: 7 working days for stock items, For higher quantities, add 1 day for every 20pcs ESD workbenches for Customized workbench 15-20 workding days.
Certificate
We have a completed system of R&D, design, Produce, quality supervise,quality testing and customer service.
ISO9001 Quality system, Every production steps checked by QC and passed with a stamped card. and the stamped report card shipped in packing box.
Test Standard and Test reading
| Surface Static Dissipative Specification |
| PHYSICAL PROPERTIES |
| ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department. |
| Surface Finish: Standard textured finish |
| Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha. |
| Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates. |
| Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate. |
| ELECTRICAL PROPERTIES | ||
| Test | Relative Humidity | Electrical Results |
| Point to Point Resistance | 60% - 40% | 106 to 1 x 107 ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10% | 108 to 109ohms | |
| Point to Ground Resistance | 60% - 40% | 106 to 1 x 107ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10%* | 108 to 109 ohms | |
| Volume Resistance | 60% - 30% | 107 to 1 x 108 ohms |
| 30% - 10% | 108 to 109 ohms | |
| StaticDecay | 50% | 0.01 sec |
| 10% | 0.02 sec | |
| 1 Per EOS/ESD - S 4.1 | ||
| 2 Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) | ||
| 3 FTMS 101C, Method 4046 | ||
