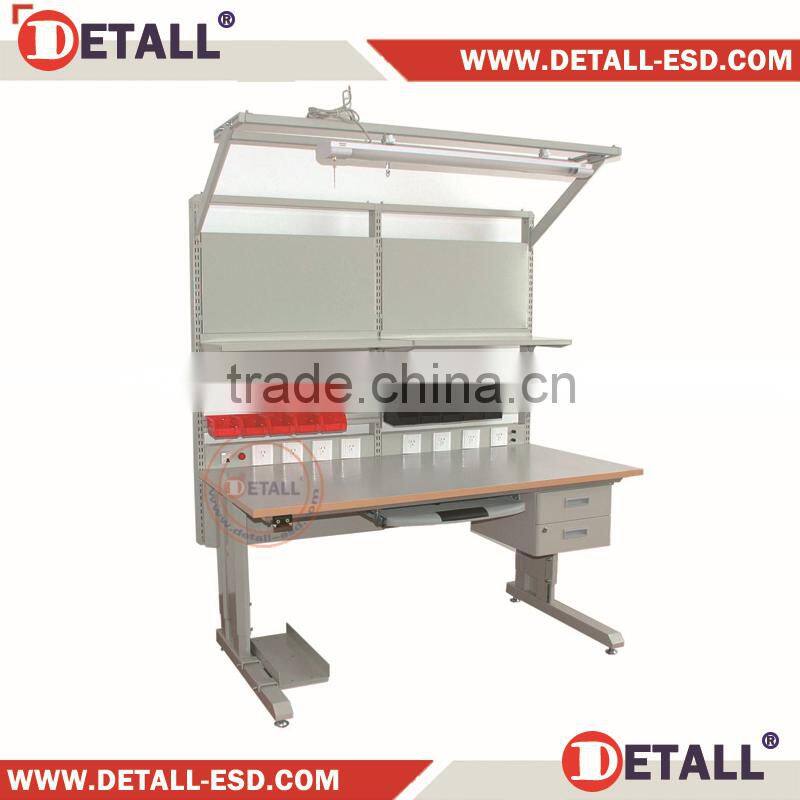

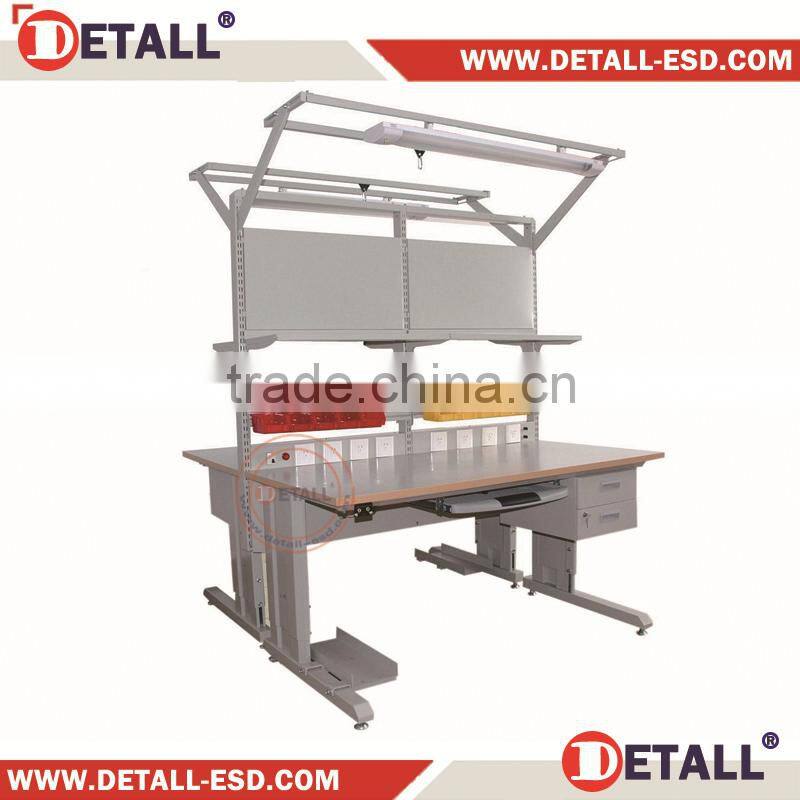

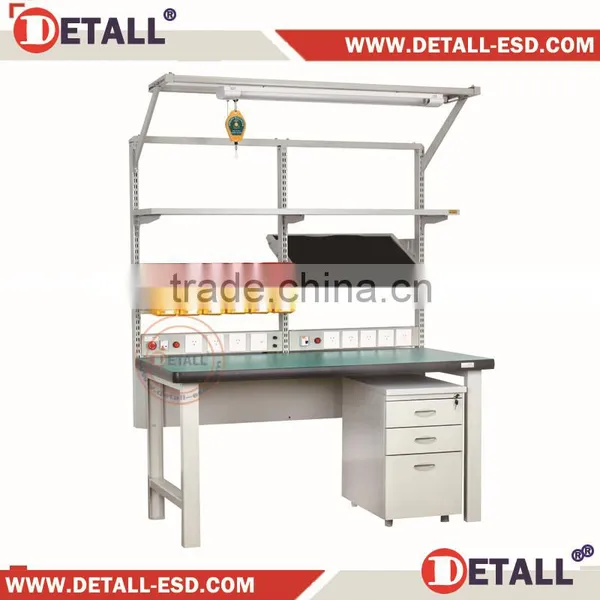

Lab industrial workbenches with power channel (Detall)
1. (Detall) Lab industrial workbenches with power channel could be combined into block stations.
2. The material of (Detall) industrial workbench use MDF and cold rolled steel with high quality.
3. (Detall) industrial workbench for users to in stall and remove, to make a assembly line.
1. industrial workbench Specifications
| Product Code | Lab industrial workbenches with power channel |
| Product Size | Standard:L1500*W750mm, Height range: 670-1120mm |
| Product Material | Cold rolled Steel with ESD powder coated |
| Product bearing | Static Loading:300KG, Dynamic Loading:150KG |
• Various type of table top available: ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless steel and Durable macromolecule.
• All industrial workbench could add ESD castors, enhancing the loading ability of the industrial workbench with the use of strengthened metal castors.
2. induatrial workbench Feature
1) Very comfortable to work at.
2) Could be placed in a line to make a common working area with no gaps.
3) Look more appealing from our professional desinger.
4) Widely used in Industrial Workshop, Garage, Repair, Cleanroom.
5) Different dimension, thickness and color are available
Industrial workbench
3. Industrial workbench Property
Industrial workbench Top Board:
Lab industrial workbenches with power channel Adopt the Permanent ESD property laminate for both table top and bottom side. Fire-proof and durable.
• Thickness 25mm and 50mm. Side sealing color : Yellow, Black and Gray.
• Standard size:Length: 1.2m,1.5m.1.8m ; width: 0.6m, 0.75m, 0.9m.
• Various material of table top for different using. ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless steel and Durable macromolecule Table top.
industrial workbench Table Top Support
• Lab industrial workbenches with power channel use the support adopt the Cold rolled Steel with ESD powder coated.
• Highly Precise processed by Automatic Numerical control bending and punching machine. Has permanent ESD property.

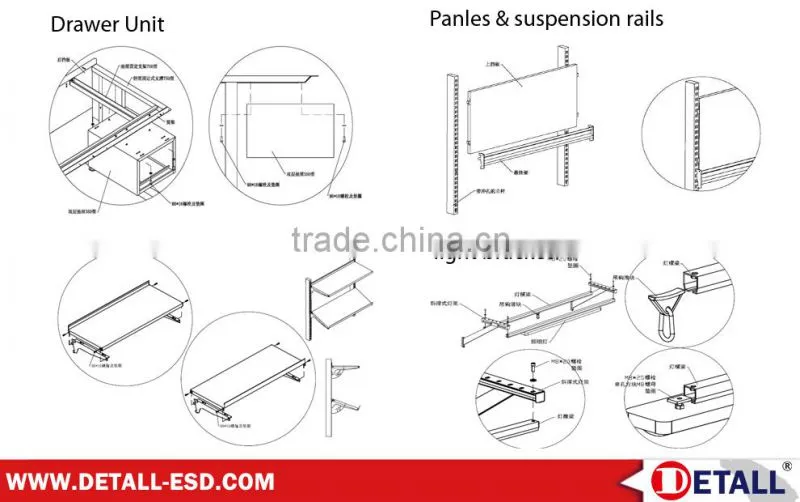

Industrial workbench Other Optional Parts with different functions
• Lab industrial workbenches with power channel have various of functional parts could choose by yourself. workbench with drawer are modular. We have the most professional engineer to design workbench with drawer for you.
1. About Detall ?
• Detall is the expert about Lab industrial workbenches with power channel . We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses.
• We Produce industrial workbench, Workstations, bench,Chairs,storage Rack,Trolleys and other Furniture for Electronics manufacturing, Assembly, test & repair, Lab and Computer, automotive workshop and school.
• We also offer industrial workbench to let you know the structure more better.
• We also offer the Customized, OEM and ODM industrial workbench.
2. Why Detall ?
• Professional Industrial furniture have Best prices and customer service.
• Detall Industrial furniture Adopt the ESD/antistatic industrial workbenches, Stable structure, durable, strong and easy assembly. Various of functional parts are optional by customer’s need.
• Drop-shipped direct from the factory at a discount.
• Detall Industrial furniture use material of Cold rolled Steel with ESD powder coated, ESD laminate top board.
3. Manufacturing Shop ?
• We have the advanced Automatic Numerical control bending and punching machine for producing industrial workbench.
• Automatic Spray Coating Line. Products have high accuracy processing such as cutting, punching and bending.
• ESD surface coating adhesion force is more than 2H, permanent ESD property.
4. Packaging & Transportion ?
• Carton box for standard size Parts of industrial workbench.
• Outside Export standard plywood packing for Air and Sea shipping.
• Lead time: 7 working days for stock items. Add 1 day for every 20pcs industrial workbench . Customized industrial workbench for 15-20 working days.

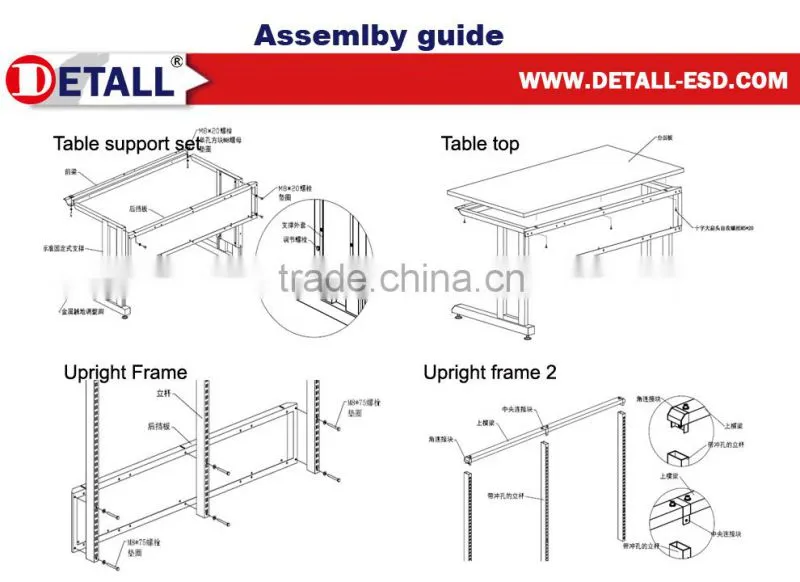

5. Product Assembly of industrial workbench?
• Designed with modular parts, parts can be assembled easily and optionally.
• Products with assembly paper and video guide.
• We have a completed system of R&D, design, produce, quality supervise, quality testing and customer service.
• ISO9001 Quality system, every production steps checked by QC and passed with a stamped card, and the stamped report card shipped in packing box.
• CE of workbench just for our customer, for our god with the perfect quality.
Workbench with drawer Test Standard and Test Reading
| Surface Static Dissipative Specification |
| Physical Properties |
| ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department. |
| Surface Finish: Standard textured finish |
| Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha. |
| Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates. |
| Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate |
| Electrical Properties | ||
| Test | Relative Humidity | Electrical Results |
| Point to Point Resistance | 60% - 40% | 106 to 1 x 107 ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10% | 108 to 109ohms | |
| Point to Ground Resistance | 60% - 40% | 106 to 1 x 107ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10%* | 108 to 109 ohms | |
| Volume Resistance | 60% - 30% | 107 to 1 x 108 ohms |
| 30% - 10% | 108 to 109 ohms | |
| StaticDecay | 0.5 | 0.01 sec |
| 0.1 | 0.02 sec | |
| 1. Per EOS/ESD - S 4.1 | ||
| 2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) | ||
| 3. FTMS 101C, Method 4046 | ||
| Q1 | What is the warranty for our goods? |
| A1 | For our goods, we have 3-5 years satisfied warranty. We also offer free maintenance consumables every year. |
| Q2 | How do I safely payment my order? |
| A2 | We have the flexibility payment: T/T, L/C, PayPal, Western Union. We could offer the best payment terms for you. |
| Q3 | Could I get a sample to check your quality? How could I get the sample? |
| A3 | If our samples not free, we will charge for the sample cost. but the sample cost could be refundable after order. |
| Q4 | What Detall can help me for my EPA system? |
| A4 | Detall is an experienced expert of ESD system solution supplier and industrial funiture manufacturer. We are professional to establish the ESD grounding system. ESD access Monitoring system, ESD furniture System, ESD human body system and other ESD equipment and tools. We can help you establish and reform your EAP system. |
| Q5 | How to order the Customized Detall steel work bench with high quality? |
| A5 | If you have a drawing of your wanted Detall steel work bench with high quality, You can show the drawing to our salesman, then will discuss with our engineer about the produce process, get the Detailed Quotation list. If you do not have the drawing, please tell our salesman what the size, functions, configurations and special needs, Our sales man will make a Drawing with our engineer. We will give you the quotation list when you confirm the drawing and details. |

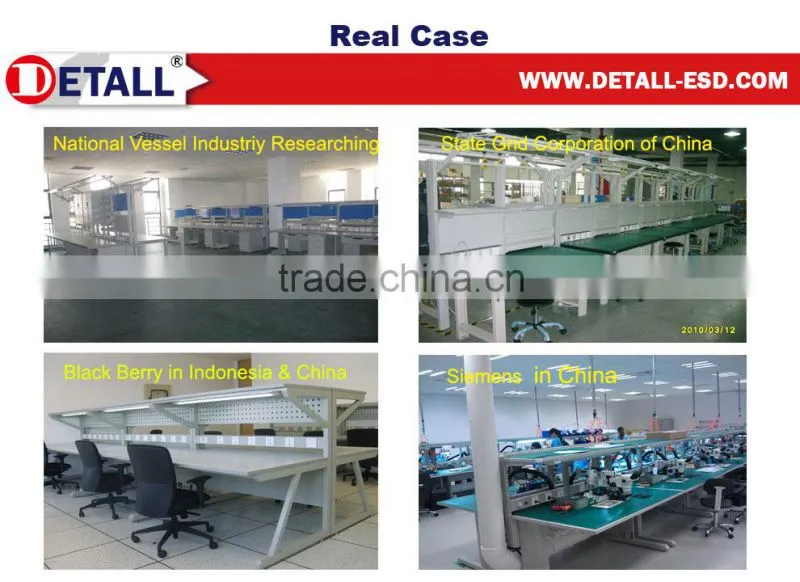

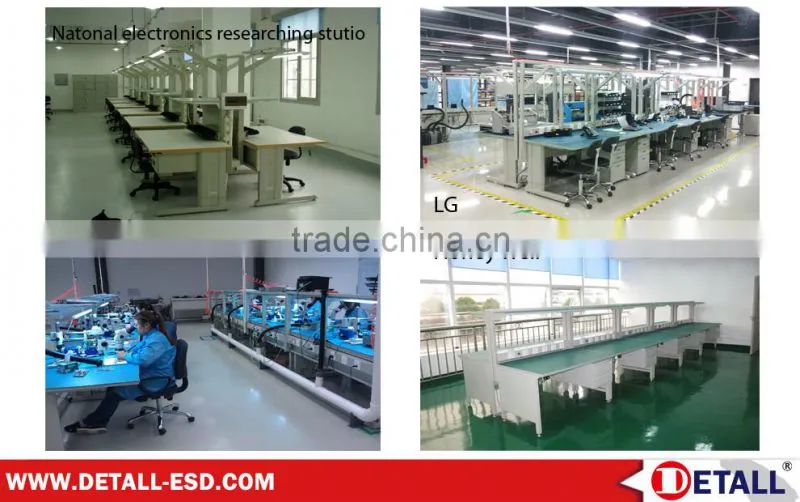

1. We approved by Siemens, Zollner, Staubli, Blackberry, Honeywell, Iscar and many famous enterprise. So we have the professional & experienced teams for you.
2. We are a manufacturer who focus in industrial furniture more than 10 years. We could offer the prefessional OEM/ODM service for you.
3. Our design team has rich experience of supplying Large multi-facility plants & government project to small laboratory business Strong team to provide you with perfect service-12 sales offering quickest reply, 7 Engineering , 60 trained worker, Best CNC production machine.
A1. We could offer you the different certificate include Quality Certificate, CE Certificate.. to prove our products with good quality.
A2. We could guarantee the safe transportation from Shanghai port to your local country port.
A3. We could accept to return the goods if they can not work in warranty time, we bear all the charges.
A4. We could make sure the satisfied warranty, just for your goods.
Choose Detall Industrial workbench. Choose your EPA expert !!!
Contact us to know our more Warranty, Discount, MOQ......
Send your inquiry Details in the below, Click "Send" Now!
