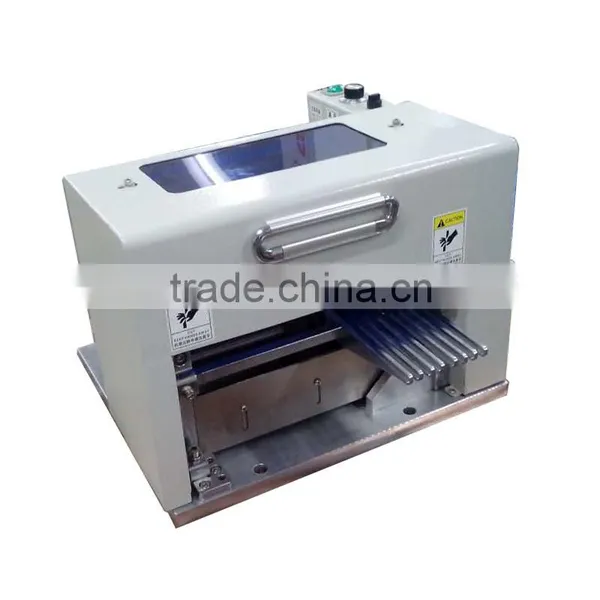

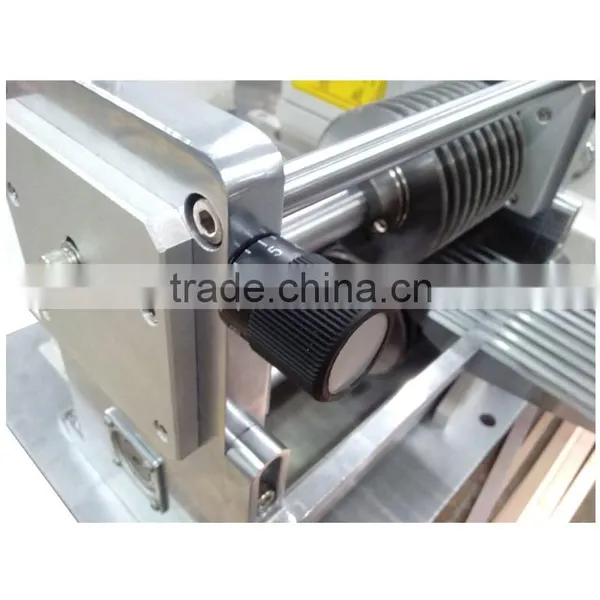

PCBA Scoring PCB Separator Machine

PCB Separator Machine  sepecification :

Professional PCB Separator Machine   Features:

1. According to PCB / MCPCB automatic V-CUT machine characteristics involving multiple disciplines, building PCB / MCPCB automatic V-CUT machine digital prototyping system that uses multidisciplinary joint design and simulation in the design stage of the product's features and performance for checking and testing, product performance to meet the design targets, resolve conflicts and interference between the various disciplines to achieve optimal coupling, which will greatly improve the product quality and system performance.

2. All of the base of the machine using the "Tarzan Qing" or "Jinan Qing" granite, and force the elimination of experience, strong rigidity, good stability.

3. X Y Z axis positioning drive using imported high-performance AC servo motor drive, to achieve a high-speed high-precision positioning and effectively increase productivity.

4. Precision Transmission and guiding system: imported precision linear guide and precision ball screw, high precision gear, location.

5. With dagger functions for complex PCB / MCPCB jump knife Processing

6. Available for high-precision machining for various sizes of V-groove board 0.4 ~ 3.2mm different thickness of boards

7. The first knife into the center of the nail PIN 4.5mm above the minimum reserve

8. The minimum diameter of a knife grinding 114MM, the highest tool life

9. Using WINDOWS Chinese operation interface, as data processing and item number management.

10. Suitable for single and double sided, multilayer, forming the front surface of the aluminum plate board use.

11. During V-CUT processing, with automatic gauge control, residual thickness detection function.

12. Japan's imports of high-speed spindle motor, V groove cut no edges, longer tool life

13. Use intelligent control systems, uninterrupted, stable operation, easy to difficult to fault repair.

14. Knives, knife deep graphical numerical control, high precision, easy to learn, easy to set up the whole.

15. Enter the information at the same time having AB, artificial steering, primary processing.

16. Available (optional) highly efficient dust collection system, which can be kept clean workshop environment

Configuration Parameters for pcb separator :

Machine Accessory:

About us :

Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.

Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China

Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.

Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.

Our business partners :
