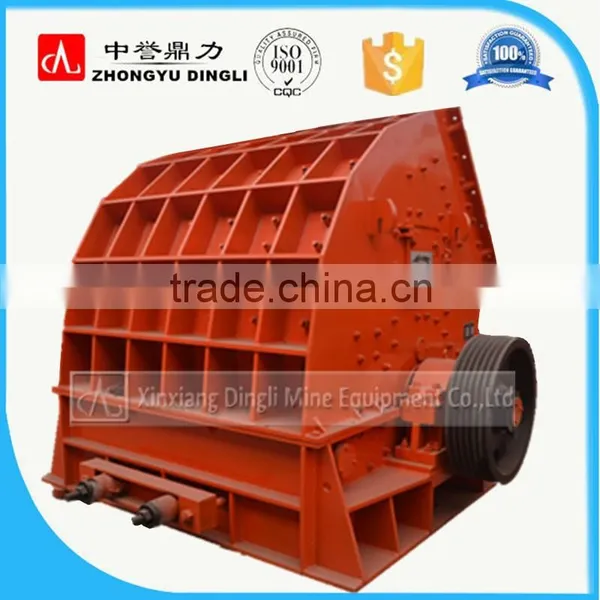

Dingli New Heavy-duty Crusher
----------------The revolutionary product in limestone crushing industry.
---------------- Preferred solution to limestone crushing industry.
1. Higher capacity, single crusher can reach capacity 2000-2500 tons per hour.
2. Low cost, Dingli crusher can save 35%-50% cost than other solutions.
3. Once crushing forming, no need secondary crushing.
4. Patent Product, no grate design and adjustable output size.
The main working part of Dingli New Hammer Crusher is the rotor with hammers. The rotor consists of main shaft, disk,hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity,they are crushed by the rotating hammers,the crushed products which meet the required size can be discharged from the sieve plate and become the final products,the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Heavy types
| Types | Rotor Dia.*L | Mouth size W*L | Feeding size | Capacity t/h | Motor power | Dimensions L*W*H |
| PCZ1308 | 1310*790mm | 850*800mm | ≤600mm | 100-160 | 132KW | 2818*2100*2390mm |
| PCZ1510 | 1500*950mm | 1000*900mm | ≤700mm | 160-210 | 132*2KW | 3260*3702*2750mm |
| PCZ1512 | 1500*1160mm | 1210*900mm | ≤750mm | 250-320 | 160*2KW | 3260*2580*2750mm |
| PCZ1615 | 1650*1452mm | 1500*1200mm | ≤1000mm | 420-500 | 200*2KW | 3456*2915*3185mm |
| PCZ1620 | 1660*1900mm | 2000*1300mm | ≤1200mm | 800-1000 | 400*2KW | 3500*3100*3200mm |
| PCZ1820 | 1800*1964mm | 2000*1200mm | ≤1200mm |
1000-1200 | 450*2KW | 3270*3210*3520mm |
| PCZ2125 | 2100*2486mm | 2600*1690mm | ≤1600mm | 2000-2500 | 1250KW | 3728*4565*4667mm |
Standard types
| Model | Rotor Dia.*L | Mouth size W*L | Feeding size | Capacity | Motor power | Dimensions L*W*H |
| XPC0706 | 700*570mm | 618*510mm | ≤400mm | 50-70t/h | 75KW | 1950*1340*1480mm |
| XPC0808 | 800*750mm | 780*610mm | ≤500mm | 80-100t/h | 132KW | 2280*1790*1670mm |
| XPC0910 | 900*1000mm | 1070*750mm | ≤600mm | 150-200t/h | 110*2KW | 2600*2200*1940mm |
| XPC1012 | 1000*1180mm | 1255*810mm | ≤650mm | 250-300t/h | 132*2KW | 2800*2310*2210mm |
| XPC1213 | 1200*1280mm | 1350*900mm | ≤750mm | 300-350t/h | 160*2KW | 2970*2580*2510mm |
| XPC1216 | 1270*1490mm | 1530*920mm | ≤750mm |
400-500t/h | 200*2KW | 3070*2840*2580mm |
| XPC1220 | 1220*1950mm | 2000*920mm | ≤750mm | 500-600t/h | 220*2KW | 3080*3380*2580mm |
Xinxiang Dingli Mine Equipment CO., LTD. is the leading manufacturer of limestone crusher, vibrating screen,vibrating feeder,sand making and washing machine, belt conveyor etc. mining equipments.
Beginning from one stone aggregate plant, Dingli covers an area of 2.51 million square meters, owns more than 600 employees now. In 2015, Dingli annual sales reached eighty million dollars.
“ZHONGYU DINGLI” has been recognised as Henan province famous trademark. "Growth-oriented enterprises in Henan Province", "AAA credit enterprise" and other honorary titles.
Focus on limestone crushing industry, we aim to supply the best crusher for our clients.
Clients' success is our business.
1. Hammer Crusher installation,debugging.
Provide installation files, technical data and related soft copies or videos etc
2. Hammer crusher warranty
The provider guarantee the hammer crusher could meet production technical standard and performance requirements indicated in the agreement.
Warranty: 12 months for the machine after delivery.
3. Hammer Crusher technical support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4. 24 hours website hot line service.
For big hammer crusher order or project,to dispatch technician is negotiable.
1. Q: Which kind of stones can you process?
A: Dingli Hammer Crusher is used for crushing limestones whose compression strength is not exceeding 150 MPa and calcium content is higher than 40%. Also it can crush other medium hardness and brittle materials such as coal, salt, white sub, gypsum, alum, brick, tile, coal waste rock, etc.
2. Q: What is the Max. capacity and input size of your hammer crusher?
A: Dingli Hammer Crusher can process at most 2000 tons per hour. The Max. input size can reach 1200mm.
3. Q: What is the advantges of your hammer crusher?
A: Dingli Hammer Crusher has the higher capacity, low running cost and easy operation etc. features. Compared with regular crusher, you can save 35-50% cost.
4. Q: What is required for submitting a quotation?
A: Please tell us your raw materials, capacity per hour, your input and required ouput size. Then we can submit you a formal quotation.
