Large Capacity Small Stone Crusher Machine

Large Capacity Small Stone Crusher Machine thumbnail-1
Large Capacity Small Stone Crusher Machine thumbnail-2
Large Capacity Small Stone Crusher Machine thumbnail-3
Large Capacity Small Stone Crusher Machine photo-1
Large Capacity Small Stone Crusher Machine photo-2

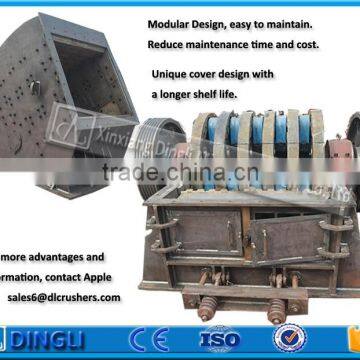

Large Capacity Small Stone Crusher Machine photo-3
US$ 4,500 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hammer Crusher, small stone crusher machine
Application:
Mining
Contact Supplier Request Quote Chat Now
Xinxiang Dingli Mine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Hammer Crusher, small stone crusher machine
Application Mining
Motor Type AC Motor
Power(W) 132kw
Capacity(t/h) 100-160tph
Place of Origin Henan, China
Brand Name ZHONGYU DINGLI
Model Number PCZ1308
Dimension(L*W*H) 2818*2100*2390
Weight 10.3t
Certification ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
The  advantage of stone crusher machine

The revolutionary product in limestone crushing industry.

Preferred solution to limestone crushing industry.

1. Low cost, Dingli crusher can save 35%-50% cost than other solutions.
2. Higher capacity, single crusher can reach capacity 1000-1200 tons per hour.
3. Once crushing forming, no need secondary crushing.
4. Patent product, no grate design and adjustable output size.

5. The material adopt high chrome alloy,It's the most durable materials.

How to work of stone crusher machine

This impact crushes materials with impact force.
When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.

Large capacity small stone crusher machine
 The specification of stone crusher machine



Types Rotor Dia.*length  Mouth size W*L  Feeding size Capacity Motor power Dimensions L*W*H
PCZ1308 1310*790mm 850*800mm ≤600mm 100-160t/h 132KW 2818*2100*2390mm
PCZ1510 1500*950mm 1000*900mm ≤700mm 160-210t/h 132*2KW 3260*3702*2750mm
PCZ1512 1500*1160mm 1210*900mm ≤750mm 250-320t/h 160*2KW 3260*2580*2750mm
PCZ1615 1650*1452mm 1500*1200mm ≤1000mm 420-500t/h 200*2KW 3456*2915*3185mm
PCZ1620 1660*1900mm 2000*1300mm ≤1200mm 800-1000t/h 400*2KW 3500*3100*3200mm
PCZ1820 1800*1964mm 2000*1200mm ≤1200mm
 1000-1200t/h 450*2KW 3270*3210*3520mm
PCZ2125 2100*2486mm 2600*1690mm ≤1600mm 2000-2500t/h 1250KW 3728*4565*4667mm

Large capacity small stone crusher machine

Large capacity small stone crusher machineLarge capacity small stone crusher machine
 The working site
Large capacity small stone crusher machine
Large capacity small stone crusher machine
Customer visit & Delivery

Large capacity small stone crusher machine



Our serive

1. Hammer Crusher installation,debugging.
Provide installation files, technical data and related soft copies or videos etc
2. Hammer crusher warranty
The provider guarantee the hammer crusher could meet production technical standard and performance requirements indicated in the agreement.
Warranty: 12 months for the machine after delivery.
3. Hammer Crusher technical support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4. 24 hours website hot line service.
For big hammer crusher order or project,to dispatch technician is negotiable.

FAQ

Why Choose Us ?
1. Over 20 years experience in this field.
2. Exported to more than 30 countries in Africa, Asia, America. There are 8000 thousand domestic customers
3. Processional Research and Development team; Strict quality control.
4. Provide complete service equipment installation, testing ,maintenance and staff training.

Welcome your inquiry!

Our equipment will let you use the least investment to  to realize your greatest benefit!
