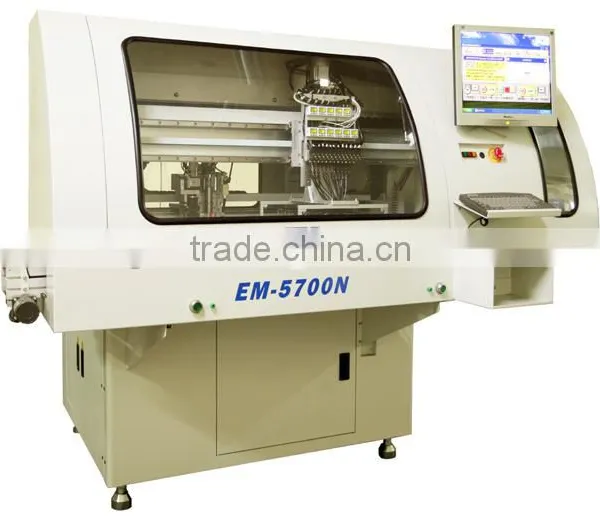

Online PCB Routing Equipment
Specifications for pcb depaneling machine :
| Maximum board size | 540*450mm |
| Board thickness | 0.6-5.0mm |
| Cutting speed | 0-100mm/s |
| Operation and data storage | PC system |
| Working temperature | 10-35℃ |
| Storage temperature | 10-35℃ |
| Voltage | 230V |
| Ratation of principal axis | MAX60000rpm |
Features for online PCB Routing Equipment :
PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting,
C-CUT or Push cut, it improves product quality and reduces scrap rates. The machine
adopts human-machine interface vie Windows XP, which is simple and convenient, able to
achieve automatic cutting path correction, edit and modification of high-pixel CCD
program, block program and single-step program. The PCB with two interactive plates
loading and unloading materials will effectively reduce machine idle time, thus achieve an
ideal productivity.
With a high-pixel CCD amplification lens, auxiliary demonstration program and
editing function, the machine can work more accurately and get sharper graphics.
Equipped with automatical mark positioning correction system, the motion path is
displayed in real time and traced in an analog way; all in all realize a clear vision. Due to
the automatic position correction function, PCB can cut more accurately. Within the
maximum 3mm, the machine can correct the deviated position automatically, therefore
lowers the standard for operators to place the plate, in this way to improve work
efficiency immensely.
The copy function of the two plates, the block, arrays, multi-angle plate, the single
tracing modification function and block editing function indeed simplify the process of
programming and increase efficiency.
Vacuum cleaner made of imported high-power fan and the 10V high voltage static
eliminator makes less noise and can vacuum better.
The monitor for tooling will extend the life span of the milling cutter, as the blade
will rise and fall to the uncut position upon finished the previous cut and the rising
and falling distance and times can be set based on the length of the blade
Separating the whole light bar board one time, high-efficient cutting machine recommendation: ASC multi group of blades cutting machine .
Customer List:
Package : plywood case
CE certificate for pcb depaneling machine :
Why us :
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
Production process :
