PCB CNC drilling router
PCB CNC drilling router features: cnc r
outer machine cnc router machinecnc router B Router
1.Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s cnc router machine cnc router machine cnc router machine
2.Cut continuously without interruption during loading and unloading
3.High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision cnc router machine cnc router machine cnc router machine cnc router machine
3.Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
4.Use high-quality hardware to ensure high rigidity and high performance
PCB CNC router machine Specification: cnc router machine cnc router machine cnc router
| Motor drive system | Servo / stepper motor |
| Spindle speed | 50000r/s |
| Cutting performance | 500mm/s |
| Drive system repeatability | ±0.02mm |
| Cutting speed | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution | ±0.01mm |
| Configuration | X,Y,Z 3 axis |
| Repeatability | <0.1mm |

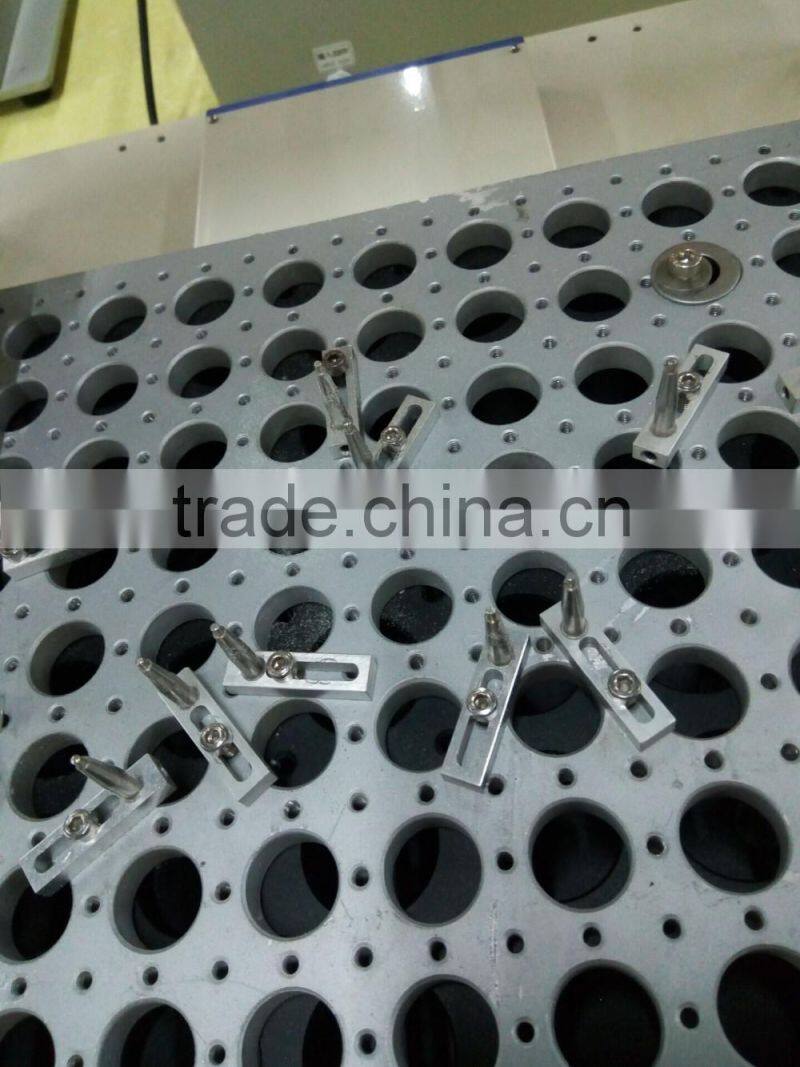

| PCB positioning | fixture |
| Load and unload way | Manually |
| PCB thickness | 0.4mm-4mm |
| Working area | 400*400mm(could be customized made) |

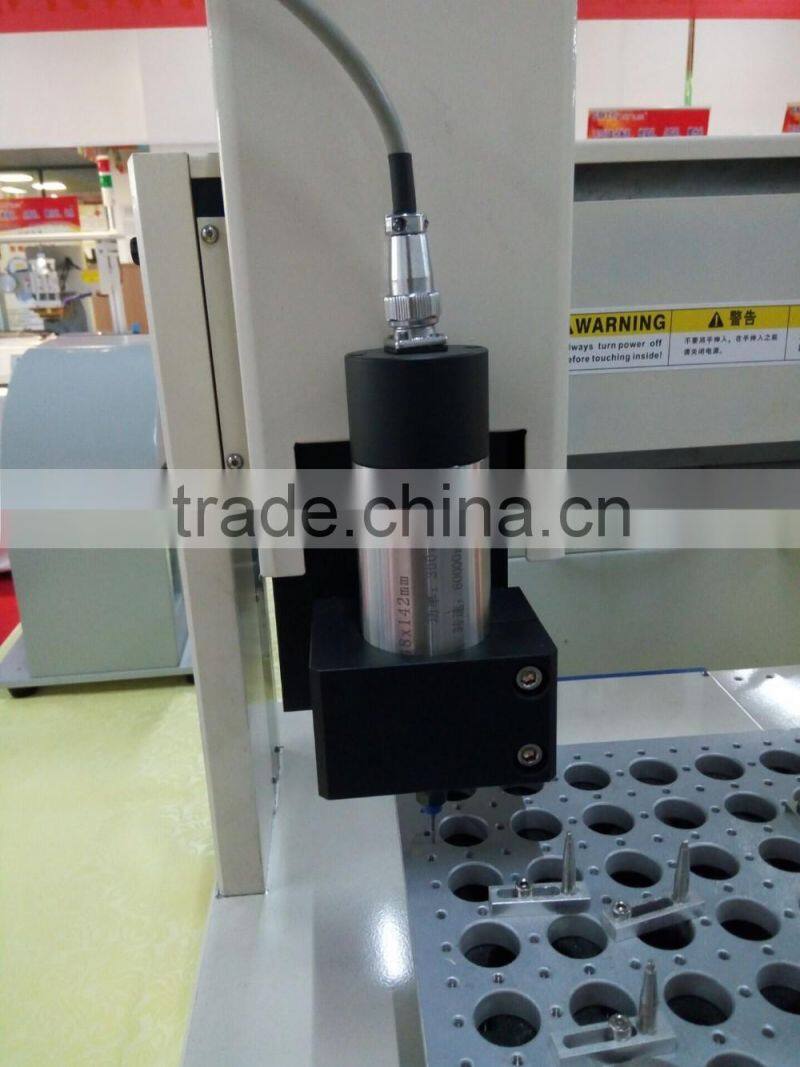

| Spindle motor power | 0.5KW |
| Spindle motor speed | 50000r/m |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 650*550*615mm |
| Weight | 73KG |

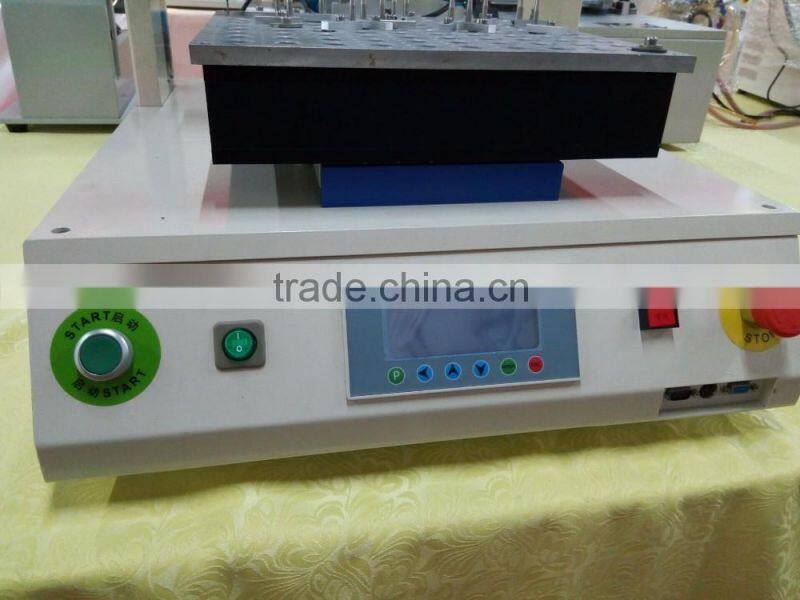

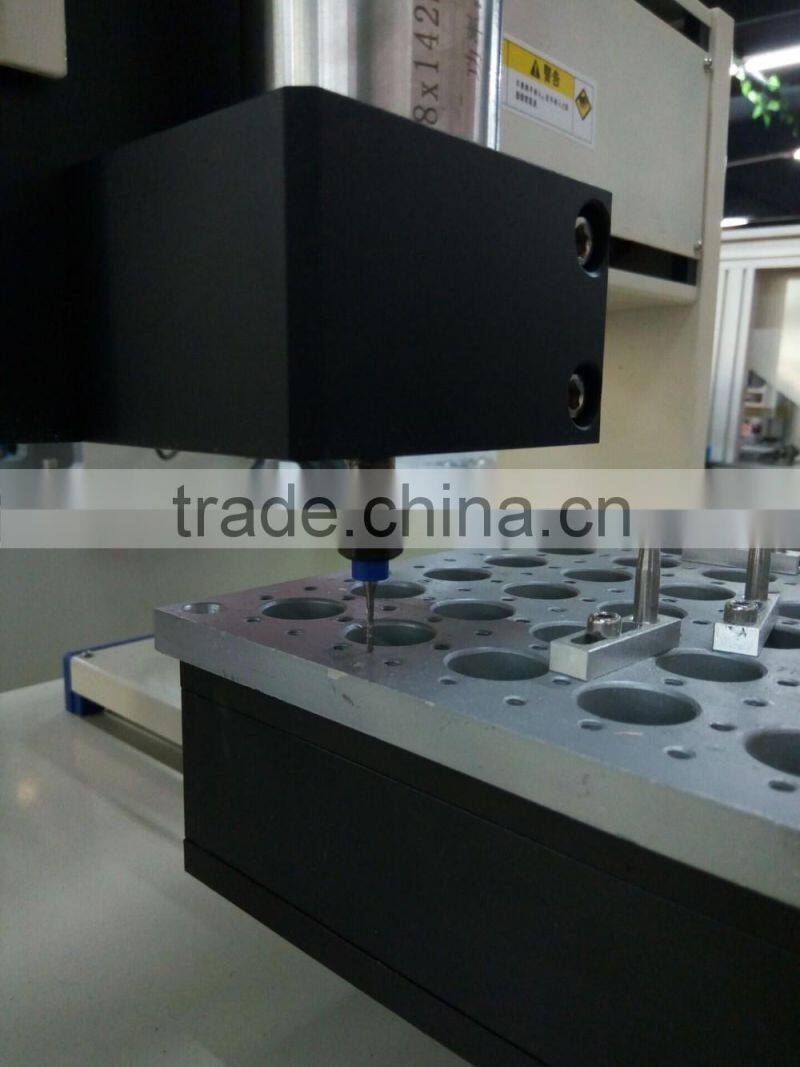

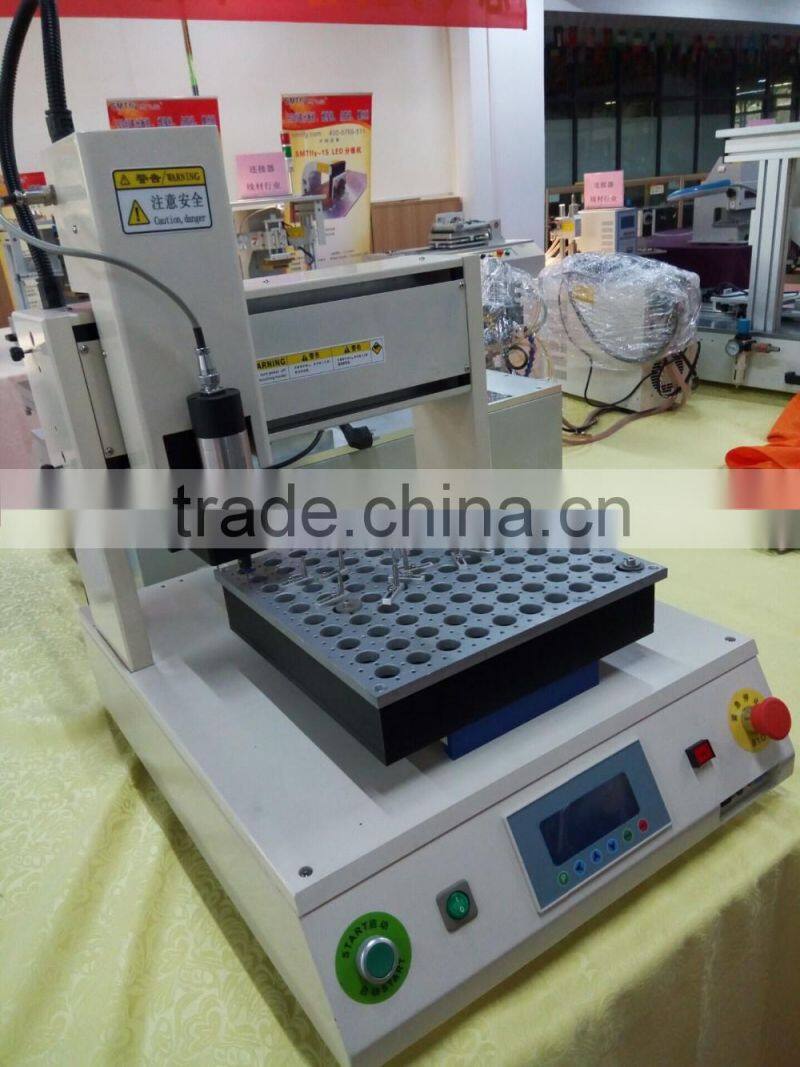

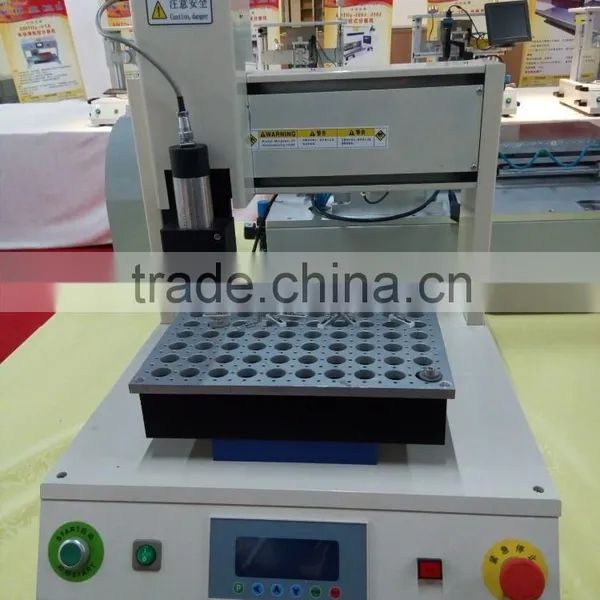

Detailed photos FOR PCB ROUTERE machine :
our advantages for pcb router machine : c
nc router machine cnc router machine cnc router machine cnc router
1.We offer 24 hours technical support by call, email.
2.Our technician can give you remote guide online(Skype or MSN) if you have any question
3.We can record videos of operating the laser machine.
4.Free training course in our factory.
5.Machine will be adjusted before it is delivered , operation disk/CD was included

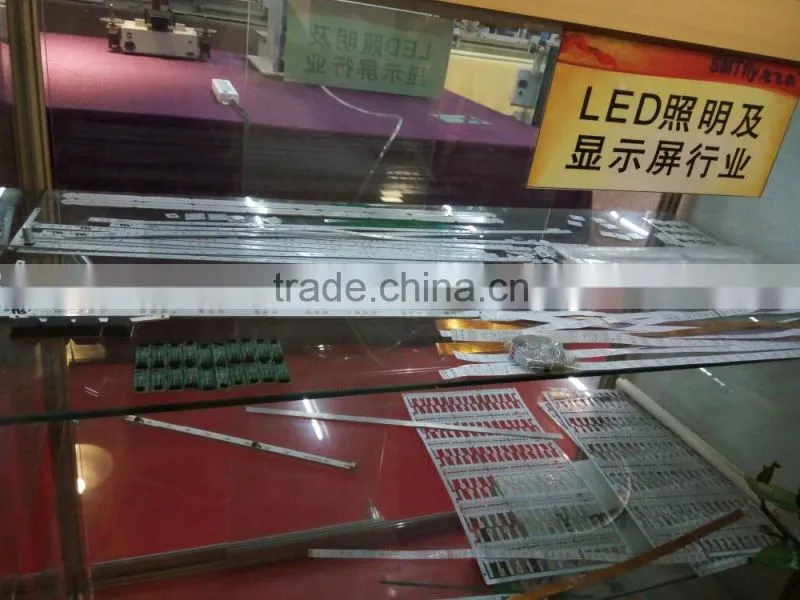

Samples from customers :
Package : plywood case

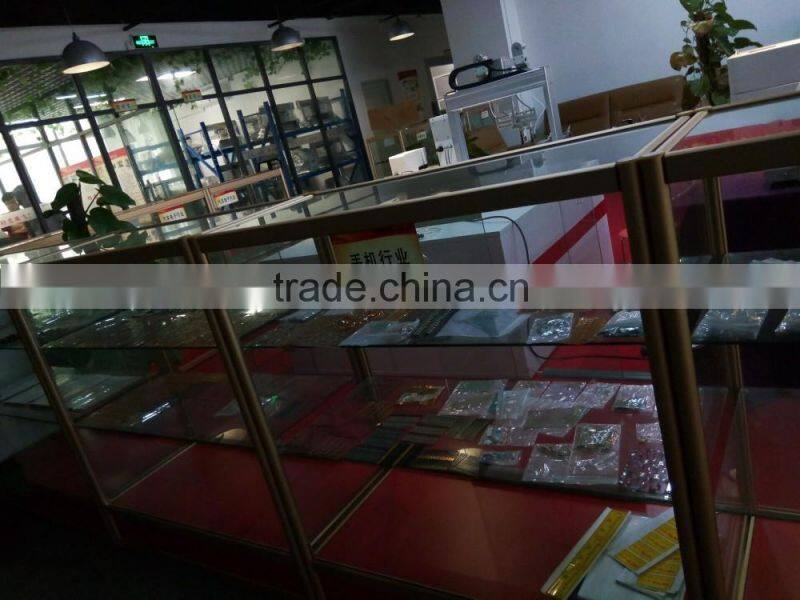

our company information.
Chuangwei Electronic Equipment Manufactory limited specilizes in provision of peripheral SMT service and equipments .including pcb separator ,pcb depaneling machine, pcb cutting machine , CNC router ,solder pot, hot bar soldering machine ,screwing machine and glue dispensing machine . Chuangwei Prosses an experienced professional team and equipements with leading technology to provide first class product and service to the companies home and overseas.
With the corporation spirits of "hardworking, sincere, devoted, cooperative and innovative", we have won the customer`s trust and satisfaction with excellent quality and efficient professional service, which is further quaranteed by ISO9001:2000 quality management system and get CE certificate .
We expect a sincere and extensive cooperation with the customers to explore a beautiful future together
CE certificate :
Our business partners :
SHIPPING WAY :
