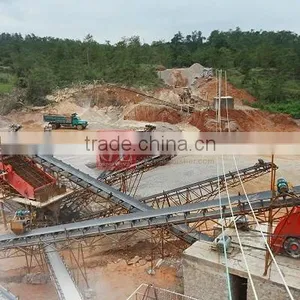

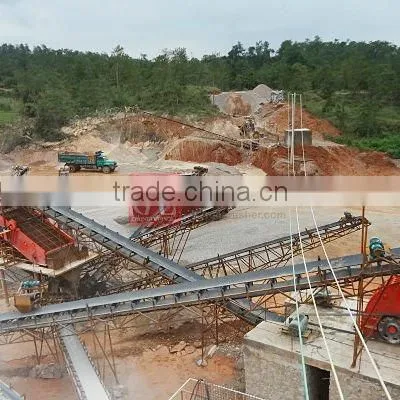

Dingli Well Sold Belt Conveyor System for Gravel and Coal

Name: Dingli Well Sold Belt Conveyor System for Gravel and Coal
Brand: Dingli
SKU: 102490591

US$ 5,000 - 990,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Dingli

Model Number:

a whole set

Xinxiang Dingli Mine Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or china main ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Dingli

Model Number a whole set

Condition New

Specifications

Belt Conveyor System for Gravel and Coal
1, ISO9001:2008
2, High Efficiency
3, Used for Mining, Quarries

Introduction------ Belt Conveyor System for Gravel and Coal:

Belt conveyor is machinery driven by friction for continual transportation of materials. It can form a flow line from beginning and end when working.
It not only can convey the crushed materials, but also convey by piece. It can cooperate with the requirement of every industry to build a flow line, except that it conveys the bulk materials.

Application------ Belt Conveyor System for Gravel and Coal :

Belt conveyor extensively used in modern industry such as mine tunnel, mine open-air conveying system, open-air quarry and beneficiation.
It is very convenient for horizontal, inclined conveying

Characters------ Belt Conveyor System for Gravel and Coal :

The main character of Belt conveyor is convenient to stretch for the belt-save space.
The end can be stretched according to the working spot.
Its structure is very compact, light frame, convenient to install and dismantle.
When load more materials or long term conveying, it can set a motor in the middle.
As your requirement, you can convey with one conveyor or use multi-conveyor for a system to convey the materials
Figure belt conveyor throughput in the density of materials for the 1.0t / m ^ 3 ~ 1.6t / m ^ 3, conveyor angle ≤ 18 °, packing materials for the 30 ° angle of the conditions reached.
The density of materials can be delivered in the 2.5t / m ^ 3 below.
Conveyor belt conveyor length is not limited to the value listed in the table, based on the user's need for manufacturing.

Technical parameter------ Belt Conveyor System for Gravel and Coal :

Width B(mm)		500			650			800			1000			1200			1400(1600)
Edge height H(mm)		80	120	160	80	120	160	120	160	200	160	200	240	200	240	300	200	240	300	400
Diaphragm plate height (mm)		75	110	150	75	110	150	110	150	180	150	180	220	180	220	280	180	220	280	360
Speed V(m/s)		0.8 1.0 1.25 1.6 2.0 2.5 3.15 4.0
Drum diameter (mm)		400,500			400,500,630			500,630,800			630,800,1000			630,800,1000,1250			800,1000,1250,1400
Veer Drum diameter (mm)		400			400,500			400,500,630			500,630,800			500,630,800,1000			630,800,1000,1250
Roller (mm)		Φ89									Φ108
Normal angle		0-30° 30° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90°
Angle range		0-90°
Transmission	Type I	Motorized pulley(with brake)
	Efficacy KW	1.5-7.5						1.5-11			1.5-37			1.5-90			1.5-110
	Type II	Y motor +V belt + axis redactor(with brake)+driving drum
	Efficacy KW	3-11						3-15			3-22
	Type III	Motor +coupling + redactor + driving drum(with brake)(By a single motor drive)
	Efficacy KW	1.5-30						1.5-55			2.2-90			4-110			5.5-185
