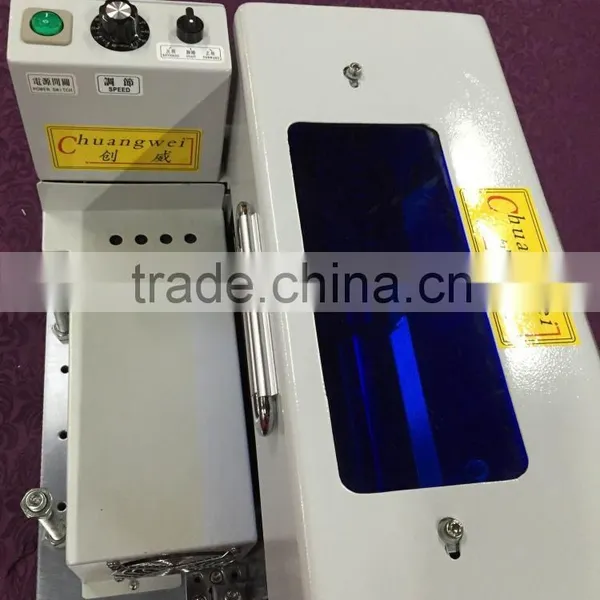

Multicut LED V-cut Machine PCB Board Separator Cutting Machine
V-cut Machine sepecification:
Max cutting length | No limit |
Min cutting length | 100mm |
Max cutting width | 160mm |
Custom cutting width | 300mm |
Min PCB width | 8mm |
PCB thickness | 0.8-3.5mm |
Feeding speed | 0-200mm/s |
Working tem. | 10-35℃ |
Blade material(auto-lock function) | Imported high precision steel |
Storge tem. | -20-50℃ |
Voltage | 110-220V |
Dimension | 1155*405*330mm |
Packaging weight | 75kgs |
V-cut Machine video:
/watch?v=rgEWWlaqudU&feature=youtu.be
V-cut Machine features:
Ø It can cut many boards with multiple sets of knives work at the same time.
Ø The knife flywheel is adjustable as a whole from 0 to 5mm
Ø The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
Ø The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
Ø It is convenient to adjust the cutting speed through rotary knob
Ø No limits of the cutting length.
Ø Thickness range of PCB: 0.8-3.5mm
Ø With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
Ø The machine adopts multiple blade to separate boards with simple operation and high efficiency.
the customize one, It can connect the production line to separate the PCB, fitted for batch
production.
V-cut Machine details:
V-cut Machine hot sale items:
V-cut Machine customers:
V-cut Machine comments from clients
Customer comments :
V-cut Machine CE certificate:
