Military connectors

Specifications

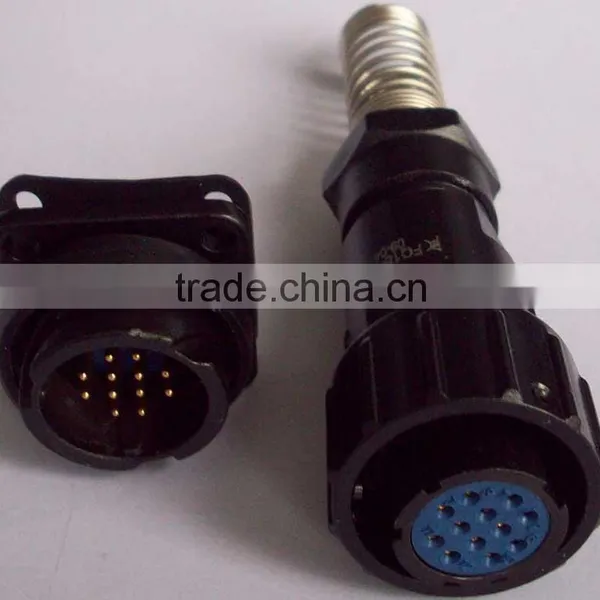

Military connectors,FQ18 series connectors can be useed in the water-proof place.They can be IP67 water proof. black color.

Military connectors,FQ series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment..

Product Ordering

               FQ   18     7   T    K    8

                1     2      3    4    5    6

1. Name of series:     FQ

2.Shell size :            18

3.Number of contacts: 1,2,3,4,5,6,7,10,12

4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,

   Z2:Receptacle with O ring,ZY: circular recptacle

5. Type of contacts:  K:socket,J:pin

6. Wire gauge:      6,7,8,9,10

Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67)

	Temperature	Relative humidity			Atmosphere			Vibration		Shock
	-55°C~+85°C	(90~96)% at40°C			4.4KPa			10~200Hz,150m/s²		490m/s²
	Current			Voltage		Contact resistance			Endurance
	2A~5A			110V/250V		≤10mΩ			500cycles
	10A-25A			400V		≤5mΩ			500cycles
Environment			Voltage proof				Insulation resistance
Normal			2000V For 400V				≥5000MΩ
			1500V For 250V				≥1000MΩ
			1000V For 110V				≥1000MΩ
Moisture			1000V For 400V				≥100MΩ
			750V For 250V				≥20MΩ
			500V For 110V				≥10MΩ
Low pressure			300V For 400V				-
			250V For 250V
			180V For 110V
