Help CenterWater Proof Connector
Related Products
Specifications

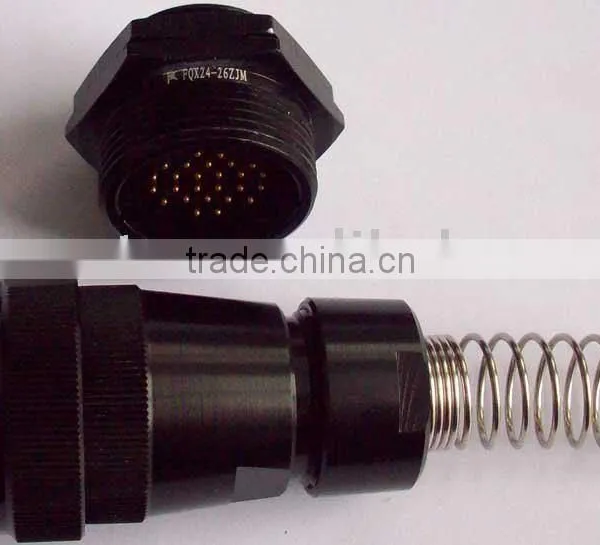

Water proof connector FQX24 series can be useed in the water-proof place.They can be IP68 water proof.This type is black color.Water proof connector,Cable to box connector FQX24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.IP68 protection.
Product Ordering
FQX 24 6 T K 8
1 2 3 4 5 6
1. Name of series: FQX
2.Shell size : 24
3.Number of contacts: 1,3,4,6,10,19,26
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket,J:pin
6. Wire gauge: 6,10,12,14
Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67)
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
|||||||
-55°C~+85°C |
(90~96)% at40°C |
4.4KPa |
10~200Hz,150m/s² |
490m/s² |
|||||||
Current |
Voltage |
Contact resistance |
Endurance |
||||||||
2A~5A |
110V/250V |
≤10mΩ |
500cycles |
||||||||
10A-25A |
400V |
≤5mΩ |
500cycles |
||||||||
Environment |
Voltage proof |
Insulation resistance |
|||||||||
Normal |
2000V For 400V |
≥5000MΩ |
|||||||||
1500V For 250V |
≥1000MΩ |
||||||||||
1000V For 110V |
≥1000MΩ |
||||||||||
Moisture |
1000V For 400V |
≥100MΩ |
|||||||||
750V For 250V |
≥20MΩ |
||||||||||
500V For 110V |
≥10MΩ |
||||||||||
Low pressure |
300V For 400V |
- |
|||||||||
250V For 250V |
|||||||||||
180V For 110V |
|||||||||||
