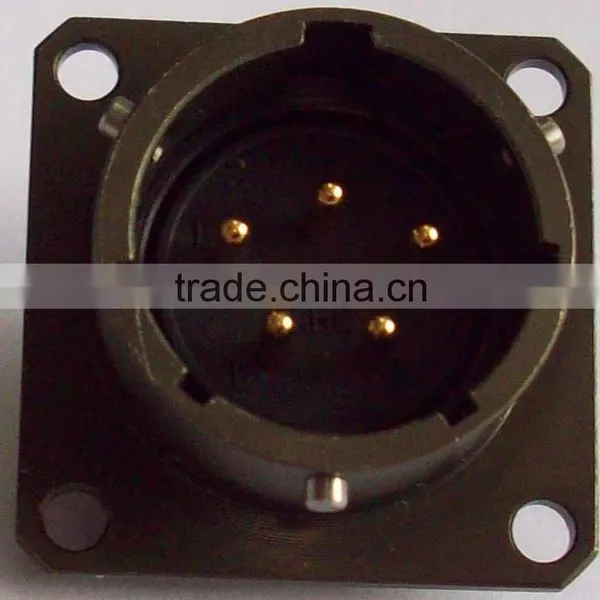

Military connectors are inner pin locked type for British system,military quality,featuring quick connection.Same as Y50EX.
Military connectors,MIL-26482 connectors are inner pin locked type for British system,military quality,featuring quick connection and separation,small volnme,light weight,good sealing and anti-tensile performance.The type of terminations include soldered and crimped,shielded and nonshielded housing,straight and bent cable outlet ends,ordinary,high vacuum and high pressure sealing.Its specification meet the requirements of GJB101A, GJB598A,MIL-C-26482G standard.They are widely used for energy and signal connections in strategic and tactical systems and field operations.
Product ordering
Y50 E X-10 06 Z J 10
1 2 3 4 5 6 7 8
1.Product nameY50 series circular connectors
2.Type E:British system
3.Structure: X:ordinary rubber sealing
4.Shell 08,10,12,14,16,18,20,22,24
5.Contacts 3-61
6.Type T:plug, Z:receptacle
7.Contacts typeJ:pin,K:socket,S:panel
8.Receptacle: 10:square flange mounting,10-2:with cable,11:circular flange,14:screw connection
Plug1: grounded pressure,2: Cable clipper,4:anti-tensile shell,5angled,6:water proof cable shell
.Technical characteristics Mould:Tested as per provisions in 4.16 of GJB598A;Saline fog:Tested as per provisions in 4.17 of GJB598A;Rainproof:Tested as per provisions in 4.15 of GJB598A.
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Impact |
Shock |
Endurance |
|
-55°C~ +125°C |
92~98% at40±2°C |
101.33KPa~ 4.39Pa |
10~2000Hz, 196m/s² |
980.7 m/s² |
392m/s² |
500cycles |
Air tightness: not greater than 6×10¯²PaL/S for ordinary, not greater than 1×10¯5PaL/S for glass sealed.
Contact diameter |
Current |
Voltage |
Contact resistance |
Ø0.8mm |
3A |
250V |
≤6mΩ |
Ø1mm |
5A |
250V |
≤5mΩ |
Ø1.6mm |
10A |
250V |
≤3mΩ |
Ø2.3mm |
20A |
250V |
≤1.5mΩ |
Ø3.6mm |
50A |
250V |
≤1mΩ |
Environment |
Voltage proof |
Insulation resistance |
Normal |
1500V |
≥3000MΩ |
High temperature |
1000V |
≥500MΩ |
Moisture |
500V |
≥20MΩ |
Radio frequency interference attenuation:
Frequency MHz |
Attenuation db |
Frequency MHz |
Attenuation db |
100 |
65 |
400 |
55 |
150 |
60 |
600 |
50 |
200 |
60 |
800 |
45 |
300 |
55 |
1000 |
45 |
