Specifications

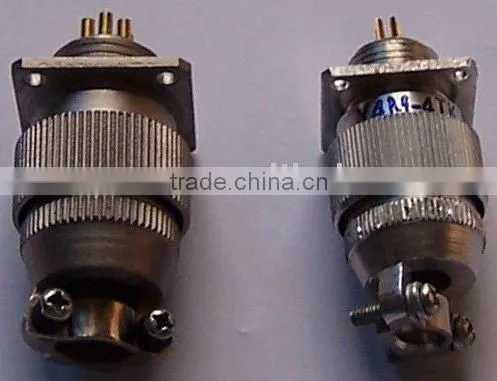

Electrical plug, military Y4 series have the features of small size,light weight,convenient application with threaded-coupling.
Electrical plug,connector,small military connectors Y4 series have the features of small size,light weight,convenient application with threaded-coupling connection.They are widely used for the electrical connection between electrical equipments and instruments.
Product Ordering
Y 4 - 3 Z J B M
1 2 3 4 5 6
1. Name of seriesY4 series circular military connectors
2. Number of contacts:3,4,5,7
3. TPlug,ZReceptacle
4. Type of contactsJPin,KSocket
5. TerminationLCable,BSquare flange
6. MReceptacle sealing
Technical characteristics
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
Endurance |
|
-40°C~ +125°C |
(92~98)%, at40+2°C |
101.33KPa~6.67Pa |
10~2000Hz,196m/s² |
392m/s² |
500 cycles |
Contact Ø |
Current |
Voltage |
Contact resistance |
Ø1mm |
3A |
250V |
≤8mΩ |
Environment |
Voltage proof |
Insulation resistance |
Normal |
750V |
≥1000MΩ |
High temperature |
700V |
≥500MΩ |
Moisture |
500V |
≥50MΩ |
Low pressure |
200V |
- |
