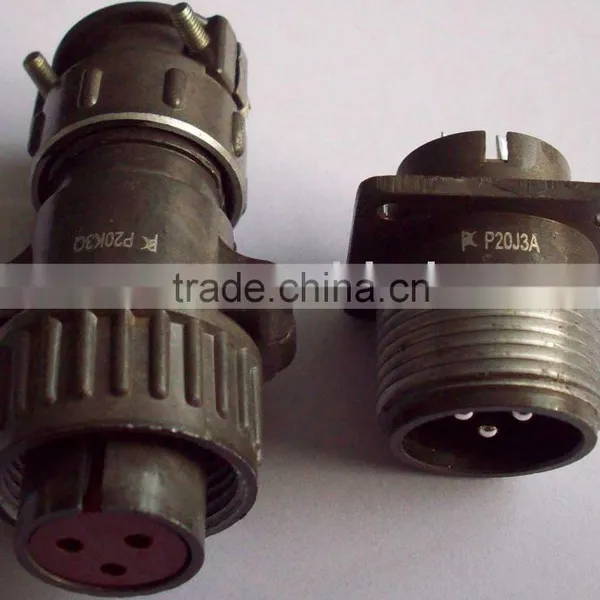

Russia connector P20 series are used extensively in line connecting between electrical equipment,various instruments and meterRussia connector,Military connector P20 series are used extensively in line connections between electrical equipment,various instruments and meters.These connectors have the features of small volume,light weight,convenient application,high durability of plugging and unplugging,threaded coupling,good sealing performance,high conductivity and high dielectric strength.They are made according to the standard SJ/T10496.They are for military and industrial applications.Product Ordering
P 20 J 3 M P J
1 2 3 4 5 6 7
1. Name of series P series circular connectors
2. shell size: 20
3. Type of contacts:J:Pin,K:Socket
4. Sign of contacts: Numbers
5. Type:without mark:plug,A:normal receptacle,M:sealed receptacle
6. P:shield shell,Q:normal shell,R:angled shield shell,S:normal angled shell,the receptacle without shell:without mark.
7.J:Au plated,without J: Ag plated
Technical characteristicsTemperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
Endurance |
|
-55°C~ +70°C |
92~96% at40+2°C |
100KPa~2 KPa |
10~200Hz,100m/s² |
250m/s² |
500 cycles |
The sealing connectors temperature allow -55°C~+55°C only.
|
Contacts diameter |
Current |
Voltage (pressure) |
Contact resistance |
|||
100Kpa |
8.5KPa |
4.4KPa |
2KPa |
|||
Ø1.5mm |
10A |
500V |
250V |
175V |
150V |
≤2.5mΩ |
Ø2.5mm |
25A |
≤1mΩ |
||||
Ø3.5mm |
50A |
≤0.5mΩ |
||||
Ø5.5mm |
100A |
≤0.3mΩ |
||||
Environment |
Voltage proof |
Insulation resistance |
Normal |
1500V |
≥500MΩ |
Lower pressure(2KPa) |
300V |
- |
Moisture |
1000V |
≥2MΩ |
