Home > Products > LED Wall Pack > 60W Garden Lamp Wall Bracket Light Fitting Outdoor Garden Wall Lights Cube

60W Garden Lamp Wall Bracket Light Fitting Outdoor Garden Wall Lights Cube

FOB Price

USD $104 - $316.8 / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	CREE/Samsunmg, SMD LED CHIP	Input Voltage(V)	AC100-277V
Lamp Power(W)	60	Lamp Luminous Flux(lm)	5400lm
Lamp Luminous Efficiency(lm/w)	90	Color Temperature(CCT)	Other, 2700k-6500k
Working Temperature(℃)	-40, 50	Working Lifetime(Hour)	50000
Lamp Body Material	PC	IP Rating	IP65
Certification	CE, EMC, ETL, FCC, LVD	Place of Origin	Guangdong, China
Brand Name	Romanso	Model Number	RMS-WL266-W60-150

Product Description

60W Garden Lamp Wall Bracket Light Fitting Outdoor Garden Wall Lights Cube

	Product Information
	Power	60W/80w/120w/150w
	Luminous	90lm/w
	CCT	2700k-6500k
	PF	>0.9
	Lifetime	50000Hrs
	Voltage	AC100-277V
	Material	PC Cover
	Size	366x266x196

Product Parameters:

Power	60W/80W/120W/150W ±5%
Input Voltage	100-277VAC / 50-60Hz
Light Source/Count	Samsumg or Cree XTE
Lamp Driver	MEAN WELL
LED Luminous Efficiency	>100lm/w
Lamp's Efficiency ( %)	>95 %
Beam Angle	90×135°
Color Temperature Standard	Warm White: 2,700 ~ 3,500 K
	Natural White:4,000~5,000 K
	Cool White: 5,500~6,500K
Color Rendering Index(CRI)	Ra>80
Operating Temperature	-40 ~ 50°C
Storage Temp	-40 ~ 50°C
Size	366226196mm
LED Emitter Life	50,000 hours
Warranty time	5 Years
Applications	parking garage ,warehouse ,shopping mall etc.

Wall pack light advantage

1. Including series of patents, Unique funnel heat sinker, making the lamp better for heat dissipation. Fresnel teeth lighting design for the PC cover, which is suitable for wall light distribution.

2. The LED driver and LED light source are separated, which is convenient to install assembly and replace.

3. Beauty for the appearance, using Samsumg or Cree LED.

4. Lamp luminous efficiency between 90lm/w.

5. Meanwell Driver are applied.

6. Beam angle:90*135 degree.

7. IP65 for outdoor application.

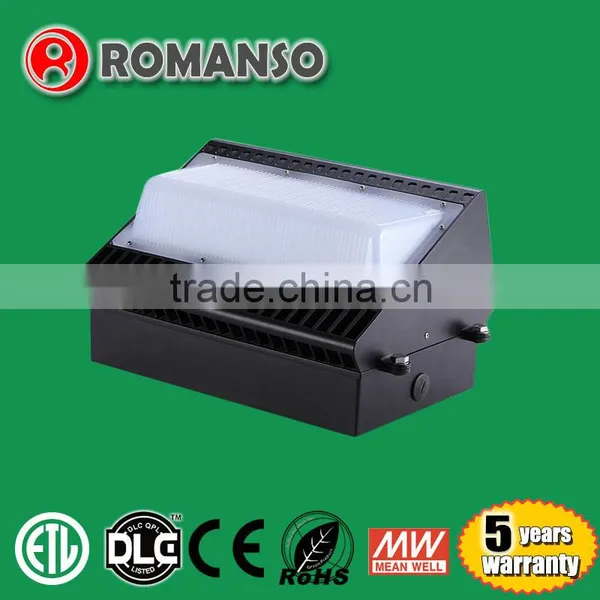

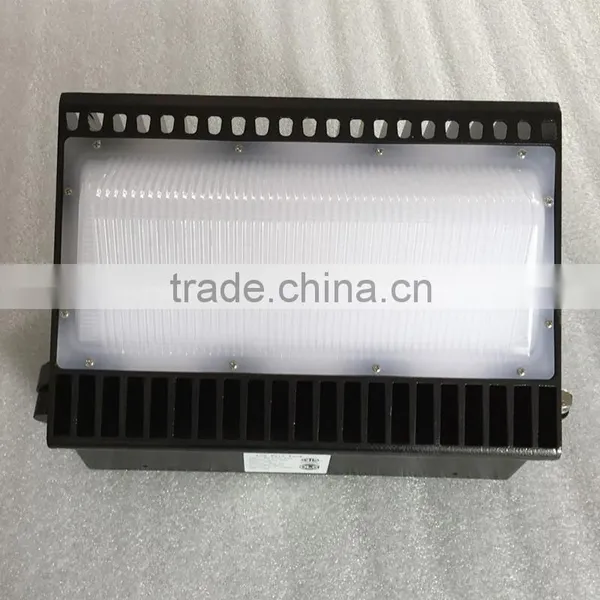

Wall pack light Picture

Wall pack light Drawing

Wall pack light Distribution curve

Wall pack light Quality Assurance:

Wall pack light Application

Plant, Stadium, Industrial Lighting, Architechural Lighitng, etc.

Wall pack light installation

Attentions for installation

a. Cut off the power and make sure the wall can burden the weight of the lamp
before install the lamp.
b. Make sure the lamp correctly installed, in case of the lamp’s dropping down.
c. Do not use the lamp in the area with aggressive gas.
d. Do not cover the lamp with anything which is harm for heat dissipation.
e. Be careful and connect the ground line well.
f. Guarantee 3 years.
g. Products faults caused by separating, remodeling or incorrectly construction are
not in the warranty area.

Wall pack light Paking

Q2. What about the lead time?

A: Samples need 3-5 working days, mass products need 7-10 days.

Q3. How do you ship the goods and how long does it take to arrive?

A:Express(DHL,UPS,Fedex or TNT.), Air or Sea shipment is available depends on your need. It usually takes 3-5 days to arrive except Sea transportation.

Q4. How to proceed an order for led light?

A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. If mockup is ok, finally we will go to mass production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q6: How to deal with the faulty?

A: Firstly, our defective rate is less than 0.2%, so there is no big problem to the lights. Secondly, we usually offer 2 years warranty for our lights. Thirdly, during the guarantee period, we will resend new lights with the new order for small quantity. If there are many lights don't work, we can repair them, then resend them to you.
