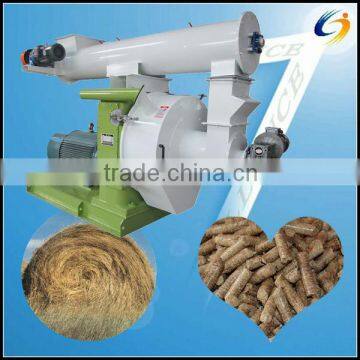

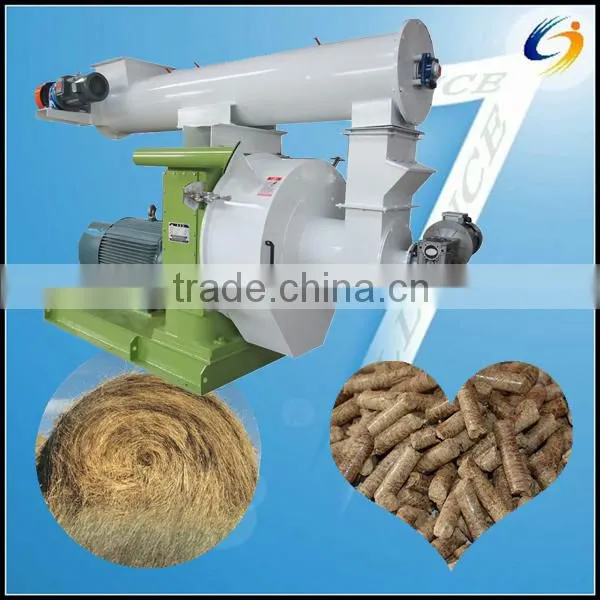

ring die pellet mill Introduction

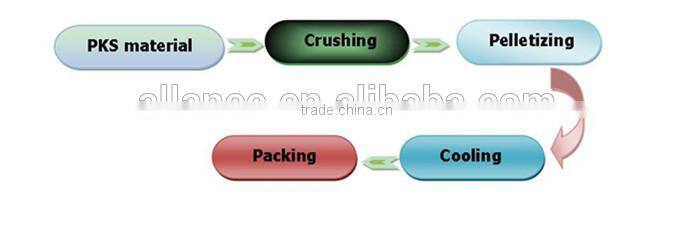

Ring die types tend to be regularly used for pellets making of medium to large-scale. The benefits of ring die system for eliminating roller skip are reduced power consumption, extended consumable parts life and improved pellet quality. The materials like sawdust,wood chips, wood logs, rice husk, sunflower seed shells, peanut shells, and other kinds of agricultural wastes go through crushing, drying, compression and finally formed solid biomass pellets.

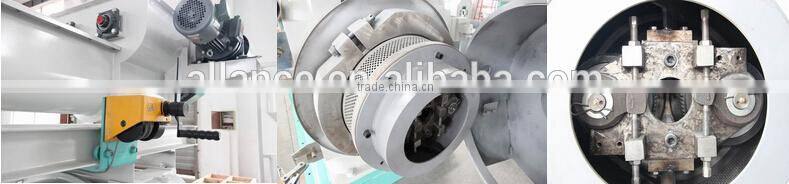

ring die pellet mill Features
1.Adopt high precision gear drive. Output is 20% larger than that of belt drive.
2. Advanced bearing and oil seal guarantee a efficient and stable working process.
3.Feeding device adopts frequency conversion motor, ensuring continuous and even feeding.

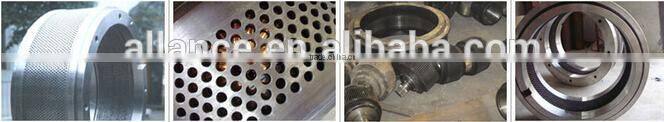

4. Different hole diameters make various sizes of pellets possible.
5. Flexible coupling shaft with novel structure ensures a stable pelletizing process and low breakdown possibility.
6.Permanent magnet device can remove impurities in the pelletizing process.
| Item | MZLH350 | MZLH420 | MZLH508 | MZLH558 | MZLH678 | MZLH768 |
| capacity | 0.6T/H | 1T/H | 1.5T/H | 1.8-2T/H | 3T/H | 4T/H |
| Main Power | 55KW | 90KW | 110KW | 132KW | 220KW | 315KW |
| Power of Feeding Auger | 1.5KW | 2.2KW | 2.2KW | 2.2KW | 3KW | 4KW |
| Power of Conditioner | 0.75KW | 1.1KW | 1.1KW | 1.1KW | 1.5KW | 2.2KW |
| Inner Diameter of Die | 350mm | 420mm | 508mm | 558mm | 678mm | 768mm |
| Die Speed | 150RPM | 150RPM | 150RPM | 150RPM | 150RPM | 150RPM |
| Feeder Auger Speed | 12-120RPM | |||||
| Pellet Size | 6,8,10,12mm. etc. | |||||
| Roller Number | 2 | |||||
| Noise | ≤86dB(A) | ≤90dB(A) | ||||
| Die Working Temperature | ≤85℃ | |||||
ring die pellet mill working principle
After grinding and drying process, the materials will be sent into feeding device and mixed in the conditioner. Then they are forced into the pelletizing chamber by the imperative feeder. In the chamber, materials are squeezed between the rollers and die to form into cylinder shape pellets. As they are extruded, cutting knives will cut the pellets into specified size.
ring die pellet mill

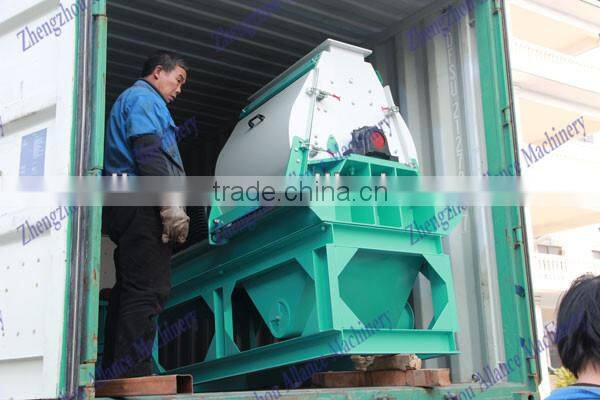

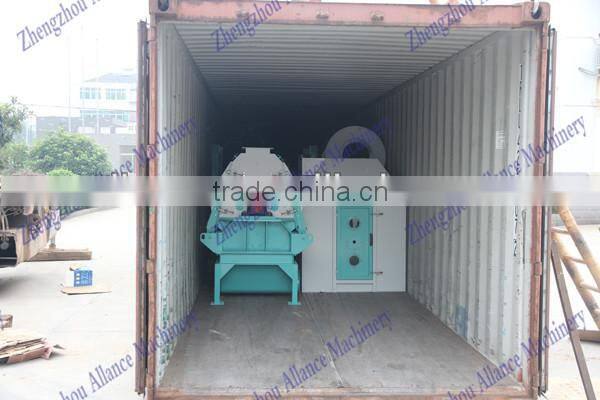

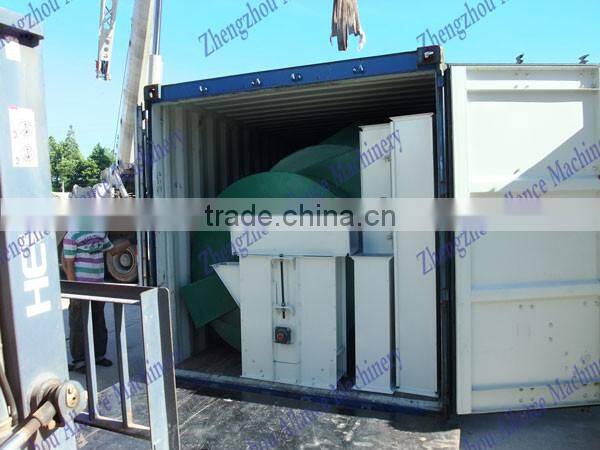

1. Export standard wooden case package

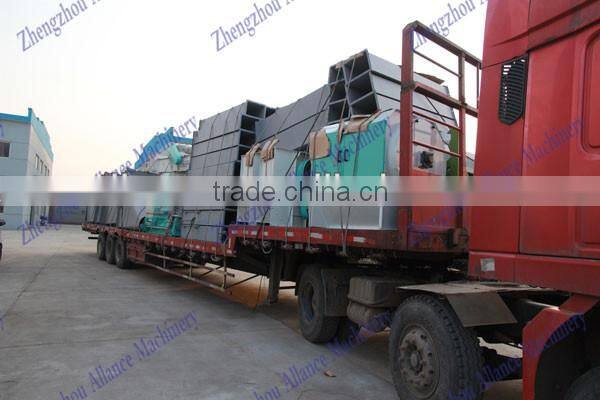

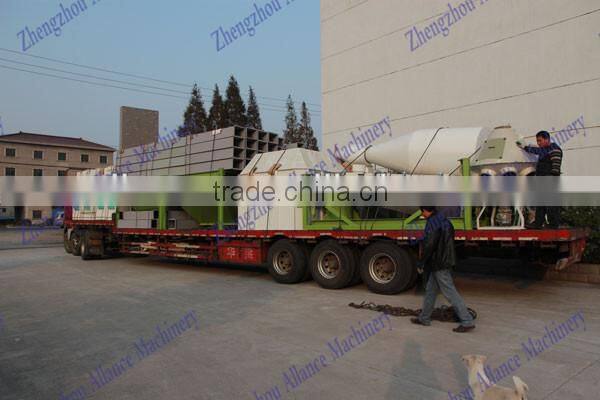

2. Shipment: we can arrange transportation by sea, by air, railway, highway, express etc.
1. Professional solution design, high quality machines, competitive prie.
2. Consult and answer all your questions within 24 hours.
3. Factory layout design according to your requirement.
4. Formulation available.
5. Fast delivery:
15 working days for single machine
40 working days for complete line
6. Professional engineer, overseas installtion and commissioning, trainning.
7. Warranty: 3 years
8. Service life long technical support.

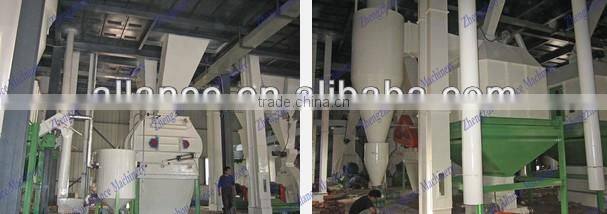

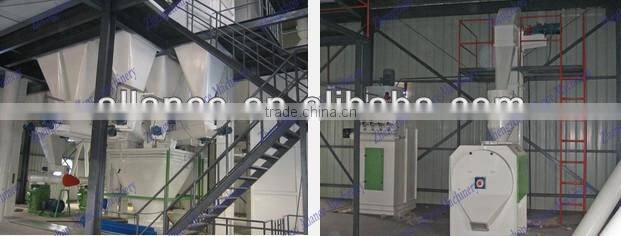

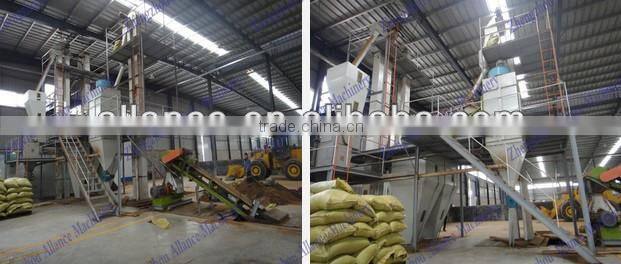

We are professional manufacturer for pellet machines with decades experience. Main machines have CE approval. We have exported widely to Southeast Asia, Africa, America market. Below are the pics for certificate and our delivered plants.
