300-500kg/h Home Use Small chicken Feed Pellet Line/ small animal feed production Line
300-500kg/h Home Use Small chicken Feed Pellet Line/ small animal feed production Line
Feed Pelletizing has been, and continues to be, a popular processing technique in feed manufacturing. In basic terms, pelletizing converts a finely ground blend of ingredients into dense, free flowing agglomerates (pellets).
300-500kg/h Home Use Small chicken Feed Pellet Line/ small animal feed production Line
Pelletizing operations are not without cost, but the cost is more valuable in improved plant profit as well as animal performance. There are many reasons used to justify the good market and customer expectations of feed pelletizing, but it may be appropriate to list just a few:
1. Improved animal performance
2. Decreased feed wastage
3. Reduced selective feeding
4. Improved bulk density
5. Better material handling characteristics
6. Destruction of deleterious organisms
300-500kg/h Home Use Small chicken Feed Pellet Line/ small animal feed production Line

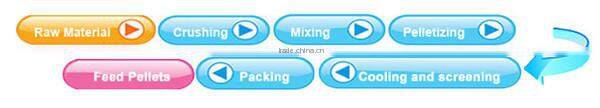

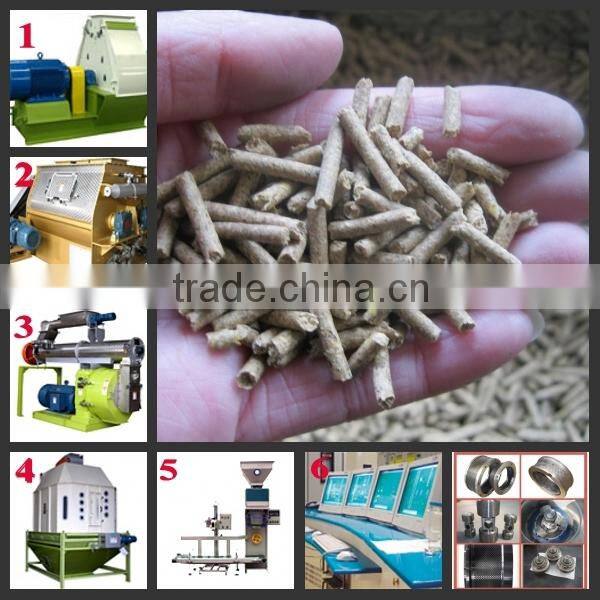

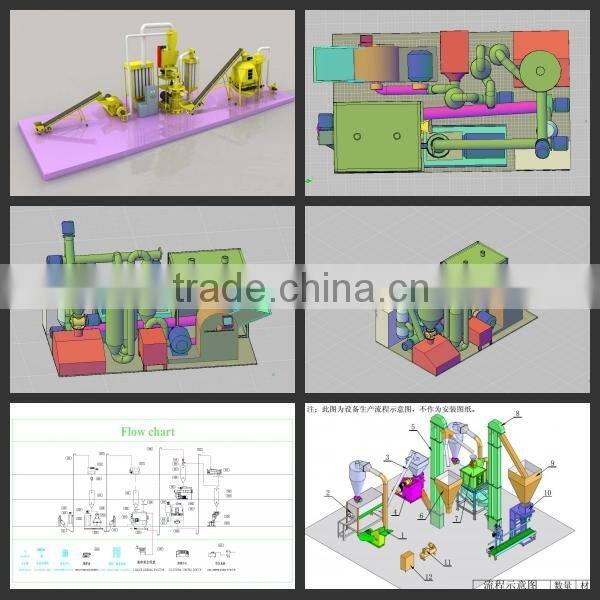

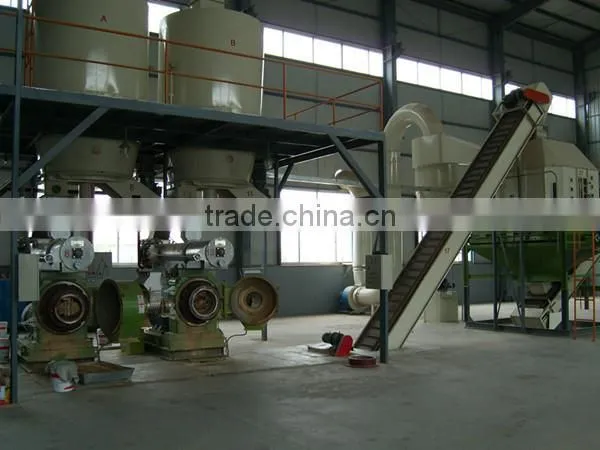

The whole process of feed pellet line is highly automatically controlled by controlling center. The whole process mainly includes the below processes.
1.Crushing process – Hammer mill
In the feed processing process there may be a number of ingredients that require some form of processing. These feed ingredients include coarse cereal grains, corn which require particle size reduction that will improve the performance of the ingredient and increase the nutritive value. Amisy FSP series Hammer mill is able to produce a wide range of particle sizes, it work with any friable material and fibre and very easy to use. It is used for grinding raw materials by large and medium livestock and aqua feed mills.
2.Mixing process – Feed Mixer
Efficient mixing is the key to good feed production. The feed will not be the balanced formulation, so it should be well mixed before pelletizing process. Amisy Horizontal Feed mixer is a mechanical means of achieving this. It consists of a series of paddles or metal ribbon blades mounted on a horizontal rotor within a semi-circular trough. The blades move the material from one end of the mixer to the other, tumbling it as it goes. It can mix wet ingredients or mixtures of wet and dry materials, as well as mixing dry ingredients.

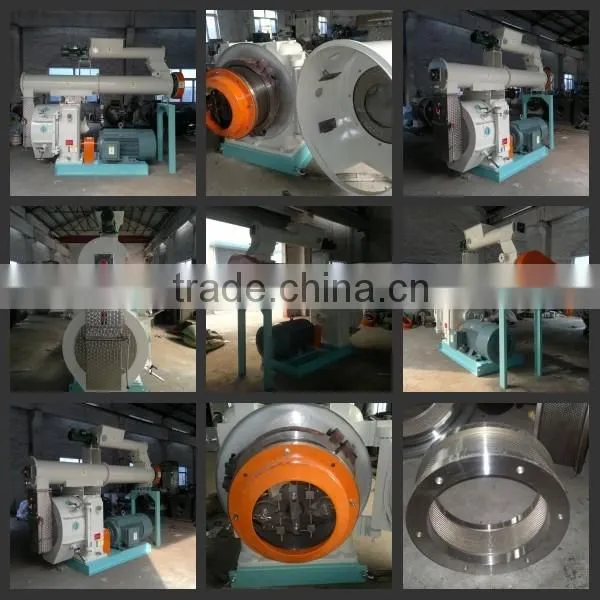

3.Pelletizing process – Feed Pellet mill
Pelletizing is a key process to the production of high quality animal feeds as it ensures that the feed formulation is in the correct quantities for all that eat them. It should be mentioned that impurities in the raw materials like metal, may damage the die and rollers of wood pellet making machine, so we equipped demagnetizer to remove the impurities. Each bite of a pellet made by our pellet mill will have the same designed formulation ensuring all the stock are feed as intended.

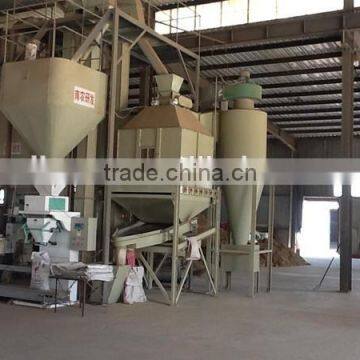

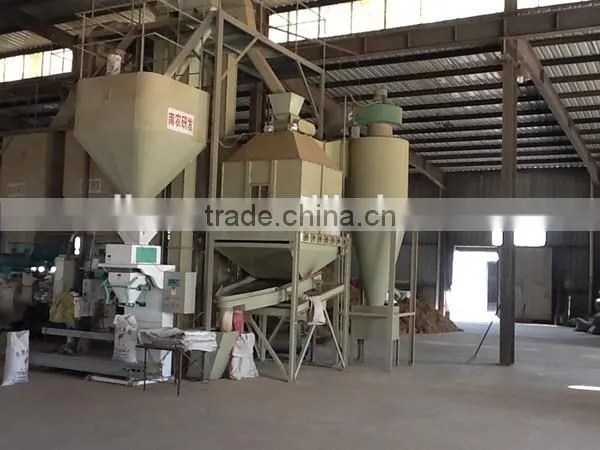

4.Cooling and screening process
Cooling and screening process The Pellets from pellet mill may exit at up to 88°C and 17-18% moisture. The temperature of pellets must be quickly reduced to make the moisture level to 10-12% or less for proper storage and handling. Pellets must therefore be cooled and dried. Our cooler Adopt counter-flow cooling principle, pellet cooled fully and equally. The temperature of the pellets after cooling is not higher than room temperature +3-5 degree.
5.Packing process
After cooling process,the pellets will be bagged or stored according to your need and requirement.The packing process is effectively handled by our Semi-Auto Packing Machine.the finished feed is weighed by the computer,then pneumatically discharge into the bags.Weighed bags would then travel along a conveyor where machines are available for sewing the tops of the bags in which dry feed may be placed for storage.
6.PLC controlling
All the process above will be controlled and monitored by our advanced computer controlling system. The control center is collected in accordance with the actual value and the current settings for contrast, which will ensure the stability of the whole processing in order to give full play to the pellet plant production capacity and to prevent plugging.
1. 10 Years Experience.

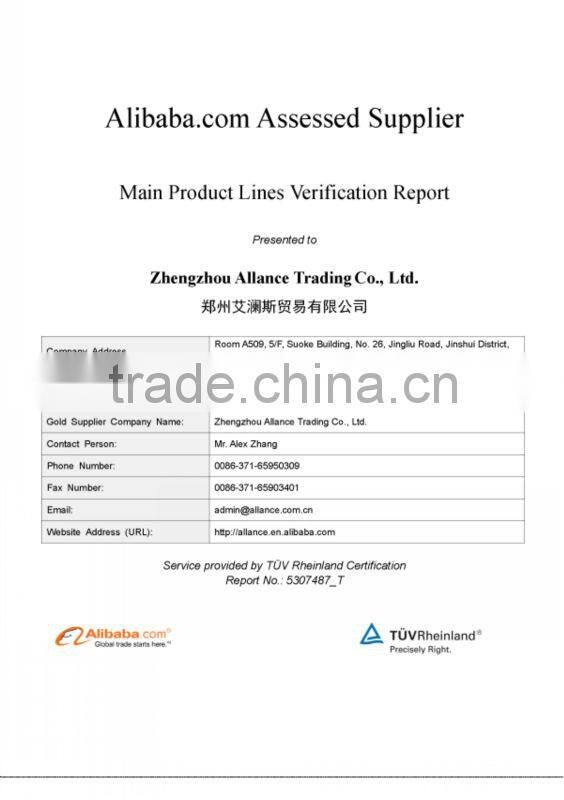

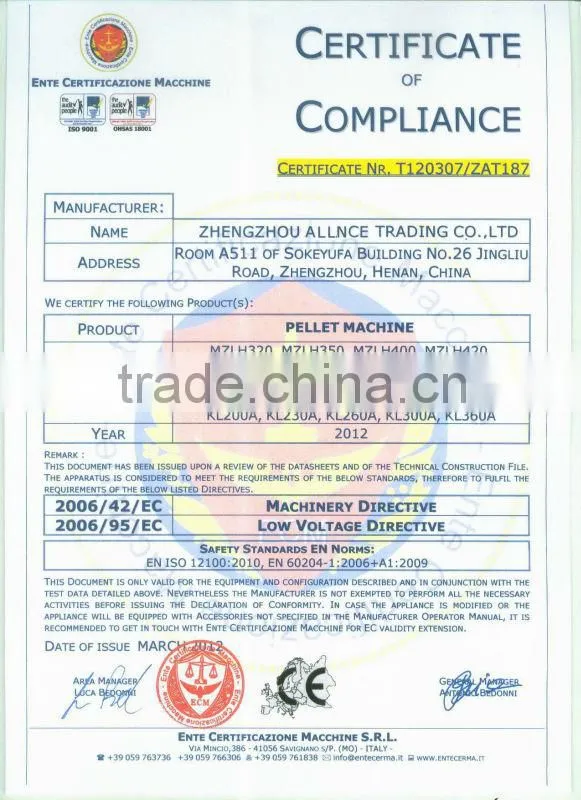

2. CE And ISO Certified,we also have TUV and BV certificate approved by Alibaba.
3. Excellent Quality Control.
4. Professional R&D And Sale Teams.
5. Reliable On-going Technical Support.
6.Competitive Price And 1 Years Guarantee.
7.If you want more details and information,pls check our pellet machine website. /
1.How long will the pellet mill/macine service life last?
We promise a quality guarantee of 1 years for main body.
2.How to properly select a pellet mill?
When you decide to purchase a pellet mill, it’s necessary to take the related information into consideration, including the capacity, output, demand, consumption, cost and also after-sales service.
3.Why need to choose right materials to use in pellet production line?
Different material has different characteristic, surely their pellet features will be different. Before you establish your pellet plant, you shall make it clear that the heat value, ash and nitrogen content etc of your pellets suit your target market.
Payment terms:30-50% desposit, the balance upon receipt of the copy of BL or LC at sight.And we can also accept Western Union,MoneyGram and Secure Payment on Alibaba.

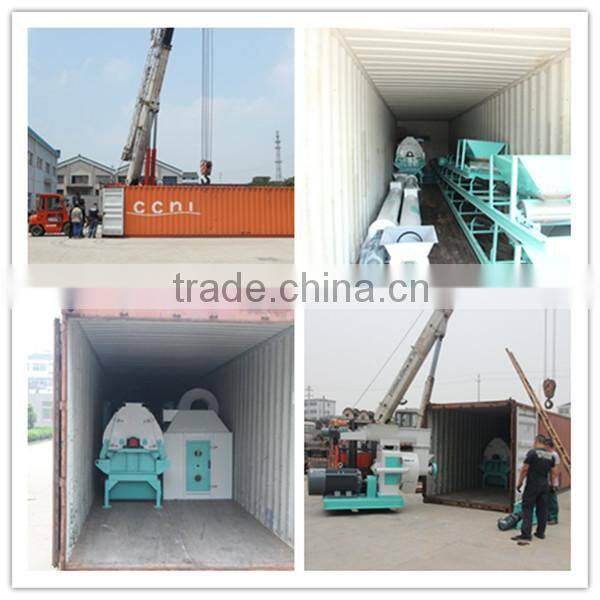

Delivery terms:15-20 working days after get your deposit for the single machine and 35-40 working days for the pellet production line.
Warranty:The guarantees for the quality of the machines for a period of one year from the date of exporting date. If any parts (excluding easy-wear parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.
Installment and training:We can send our engineer to provide the installation, traning and trial run in your place for the pellet mill. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
Allance is a manufacturer in Zhengzhou, China with 10 years' experience in pellet mill making industry. Our pellet machines can process a wide range of raw materials and become ideal equipment for making biomass fuel pellets, livestock feed pellets and aquatic feed pellets. We provide personal service from design to completion with an efficient team dedicated to meeting your needs. Our focus and mission is to create a more renewable energy future by manufacturing the top quality machines & spare parts under the most sustainable criteria.
