6000-1R Header Pin

6000-1R Header Pin thumbnail-1
6000-1R Header Pin photo-1
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Ho Tien
Model Number:
6000-1R
Contact Supplier Request Quote Chat Now
Ho Tien Precision Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Ho Tien
Model Number 6000-1R
Type Other, Header Pin
Application PCB
Gender Male

Specifications

.100" (2.54X2.54 mm) single row Pin Header for SMT===6000 series.
Contact Plating: Standard Gold flash

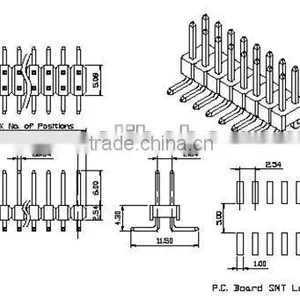

.100" (2.54x2.54mm) Pin Header for SMT

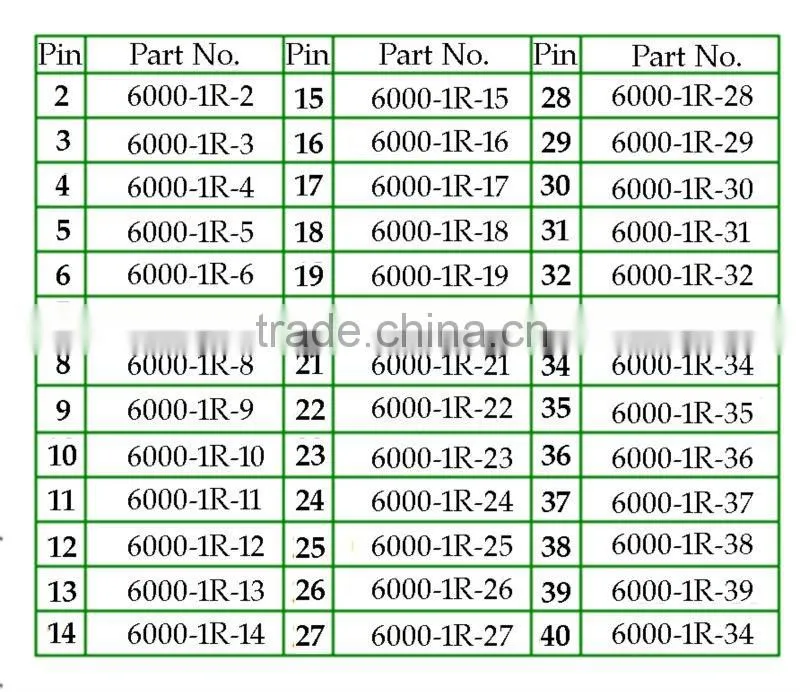

  • Header Pin Part No.6000-1R
  1. Features & Benefits
    • The series are excellent for board to board stacking
    • Available in single, and dual row
    • IR, vapor phase and wave soldering compatible
    • Notches for easy break-off
    • Also, we accept different various type of specifications of Pin Header
  2. Specification
    • Current Rating: 3Amp
    • Insulation Resistance: 5000M Ω Min.
    • Dielectric Withstanding: 600V AC
    • Contact Resistance: 20m Ω Max.
    • Operating Temperature: -40°c to +105°c
    • Max Process Temp: 230°c for 30~60 sec.
                                           260°c for 10 seconds
  3. Materials (UL 94V-0)
    • Contact Material: Brass
    • Contact Plating: Gold / Tin over Nickel
    • Insulation Material: Glass Filled Polyester

      • 6000-1R Header Pin
