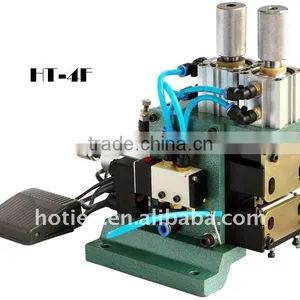

Vertical Double Blade Stripping Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HO TIEN
Model Number:
HT-4F
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HO TIEN
Model Number
HT-4F
Usage
Stripping
Specifications
Double blade designed with L type assembly can accurately meet stripping need, even single blade will do accordingly.•Mechanical Specifications:
-Power Source AC 110V60Hz or 220V50Hz
-Maximum stroke height 20mm
-Stripping length 20mm
•Physical Specifications:
-Weight: 9.5kg
-Width: 260mm
-Depth: 150mm
-Height: 270mm
-Wire range18-32 awg, diameter above 1.8mm also can be stripped with this machine, even single piece or multiple pieces.
-Use timer control system to ensure accurately cut and properly strip.
-Apply to power cord, shield wire, computer cable etc. With full stripping or half stripping select as need.
-Air blow installation to eliminate defect which causeing from stripped jacket.
-Wider blade assembly and shorter blade interval to improove computer inner insulator stripping to be more convenient and efficiency.
