Help CenterPowerfual Infrared Motion Detector for Home Security
Related Products
-
High-performance Infrared Motion Detector for Home SecurityUS$ 1 - 5.5MOQ: 5 Pieces -
Wireless Security Alarm Accessories PIR Infrared Motion DetectorUS$ 1 - 5.2MOQ: 5 Pieces
-
Waterproof Wired Outdoor Pir Motion Sensor With Pet ImmuneUS$ 10 - 100MOQ: 20 Pieces
-
Wolf Guard Siren !Wireless/wired Solar Electronic Ambulance Horn SirenUS$ 2 - 18MOQ: 20 Pieces
-
Chitongda Siren !Wireless/wired Solar Electronic Horn SirenUS$ 2 - 18MOQ: 20 Pieces
Specifications
1)Passive IR sensor with low noise2)PIR motion detector for home security
3)Transmitting distance: no obstacle 80M

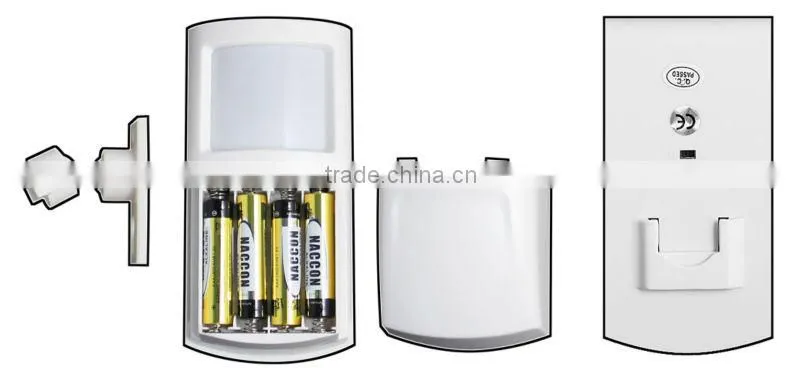

New high-performance infrared motion detector
Model: HW-03D
Technical Parameters
Sensor: Passive IR sensor with low noise
Working voltage: DC6V, (4pcs AAA 1.5V dry batteries)
Static current: <60uA
Alarm current: <20mA
Working Temperature: +5~+45°C
Humidity: ≤95% (no fog)
Transmitting frequency: 315/433+0.5MHZ
Transmitting distance: no obstacle 80M
Detecting distance: 12M max
Detecting angle: Horizontal 110°, Vertical 60°
Coding method: PT2262 or EV1527 optional
Dimension: 112*60*38mm
Installation
l Detectors should be installed on the wall 1.8-2.5m above the ground (please refer to picture 4).
l Adjust detecting angle, try to make it face window and keep it vertical with walking direction (please refer to picture 5).
l Keep it away from heat, air conditioners and air convection areas (or close the door/window when arming).
l No obstacle or floating object is allowed (such as flower, grass, clothes and curtain that will be easily be waft by wind) in the detecting area.
l Detectors should be installed firmly without any waving and shaking.
l Don’t install it exposed to direct sunlight.
The above requirements are primary to avoid false alarm and alarm failure, please pay attention when installing.
