Specifications
1. New and Hot!2.home guard gsm sms alarm system wolf guard with touch lcd keypad

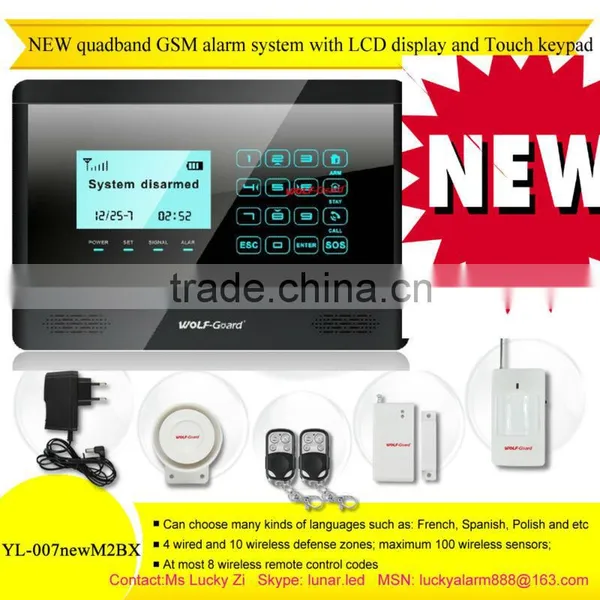

home guard gsm sms alarm system wolf guard with touch lcd keypad
. Features
| Model NO.: | YL-007NEWM2BX |
|---|---|
| Working Principle: | Electronic Security Equipment |
| Application: | home security |
| Sensor Type: | Electric Alarm |
| Working Mode: | Active |
| Signal Transmission: | Wireless Alarm |
| Type: | Anti-Theft Alarm |
| Usage: | Auto |
| Export Markets: | Global |
Additional Info.
| Trademark: | Wolf Guard |
|---|---|
| Packing: | Gift Box |
| Standard: | 118*84*29mm |
| Origin: | Shen Zhen/China |
| Production Capacity: | 98000PCS/Month |
Product Description
Host size: 170*112*30mm
Gift box size: 320*263*63mm G. W.: 984G
Main features:
u Elegant and advanced touch keypad for easy operation;
u 128x64 lattice LCD screen with clock display;
u 4 wired and 10 wireless defense zones; each wireless zone supports maximum 10 sensors;
u Support maximum 8 remote controllers;
u Built-in high-volume speaker, and artificial intelligent digital voice announcer;
u Built-in artificial intelligent English message;
u 10-second automatic voice message recording;
u Can preset 6 phone numbers: when alarming, system will make audio call to these numbers automatically;
u Can preset 3 SMS numbers: when alarming, system will send SMS;
u Timely arm and disarm;
u Can be used as a wireless telephone by using keypad to make calls;
u One-key-control: out arm, home arm, arm by remote controller or telephone;
u SOS, fire, gas, door, hall, window, balcony, and boundary places alarm;
u Real-time, delay, 24 hours, bypass defense zones programming function;
u Wireless learning code: easy to add additional wireless accessories;
u Remote control the device to arm, disarm, monitor, and intercom by phone;
u Record checking: the device can store 30 alarm records;
u Different arm status: out arm, home arm, delay arm and timely arm;
u Arm by different ways: panel keypad, remote controller, remote call;
u Alarm call has the priority: even when the number of the device is busy;
u SMS alert for power failure or recovery;
u Built-in LI battery: automatically recharge.
Technical parameter
1. Standby Current: 80mA
2. Working Current: 300mA
3. Power Supply: DC 9¯ 12 V
4. Operating Temperatuer: &mn10º C ~ &plus40º C
5. GSM Frequency: 900/1800/1900 MHz
6. Receive Coding: ASK
7. Receive Frequency: 315/433MHz
8. Remote Control Distance: No obstacle 100m
9. Detectors: 16
10. PIR Detecting Distance: 8~10m
11. PIR Detecting Angle: Horizontal 110° Vertical 60°
SUITABLE OCCASIONS:
Villa, home, house, residential, shop, school, bank, small&middle supermarket, company, the factory floor, garage, financial room, finacial sales, machine room, base station, important unattended monitored place intrusion and remote control alarm
Basic Kit contains:
- Alarm host (control unit) * 1 PC.
- Wireless PIR detector * 1 PC.
- Wireless door (gap) sensor * 1 PC.
- Remote controller * 2 PCS.
- Antenna * 1PC.
- Mini wired siren 110dB/0.3m * 1 PC.
- Power adapter * 1PC.
- User manual * 1PC.
;
