Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Peanut oil, soybean oil, corn oil, colza oil and other edible oils; | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380, 220V | Power | 1.8KW-2.1KW, 50Hz/60Hz 220v/380v | |
| Place of Origin | Shanghai, China | Brand Name | filling machine | |
| Model Number | filling machine | Dimension(L*W*H) | 2440*1350*1730 | |
| Weight | 700KG | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

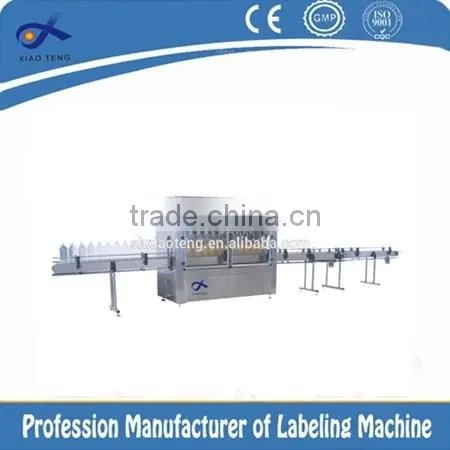

XT-ZBDG-ZC Soybean/corn/colza oil dedicated filling machine
Main filling material:
Peanut oil, soybean oil, corn oil, colza oil and other edible oils;
Product features:
1,It is accuracy and convenient with the use of advanced general control technology with touch-screen.
2,Imported PLC control directly material to ensure stable performance.
3,Pioneering technology in China of built-in pump without high head tank simplifies installing procedure, reduces cost of production and improves filling efficiency.It can meet any production condition.
4,Machine adopting dual frequency converting control on filling and conveying is safe and durable.
5,High precision volumetric flowmeter ensures quantifying is accurate and reliable.
6,Filling valve with leaking-proof mechanism using vacuum and other mechanical design ensures there is no leaking liquid absolutely.
7,Double speed control,fast then slow. Efficient and healthy.
Main technology parameters:
Parameter Names | Unit | XTFD-ZC | |||||
Number of filling nozzle | A/An | 2 | 4 | 6 | 8 | 10 | 12 |
Capacity range | Liter | 1-5L | |||||
Production capacity | (bottles/ h) | 300-400 | 600-800 | 900-1200 | 1200-1600 | 1500-2000 | 1800-2400 |
Quantitative Error | ≤±0.5%FS | ||||||
Power supply | 50Hz/60Hz 220v/380v ±10% | ||||||
Power dissipation | 1.8KW—2.1KW | ||||||
Gas source | 0.4—1.0 MPa | ||||||
Air Consumption | 0.5-3.0( stere/ min.) | ||||||
Note: Production capacity is the value with conditions of: 1 L container, 18 mm outputting caliber, 0.15-0.2 MPa pressure on nozzle. | |||||||
Installation:
after the machine arrive your place,if you need,our technician will go to your place to install and test the machine and also training your worker to operat the machine (The time of training depends on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD100 per day. also you can go to our factory to do training.
We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
