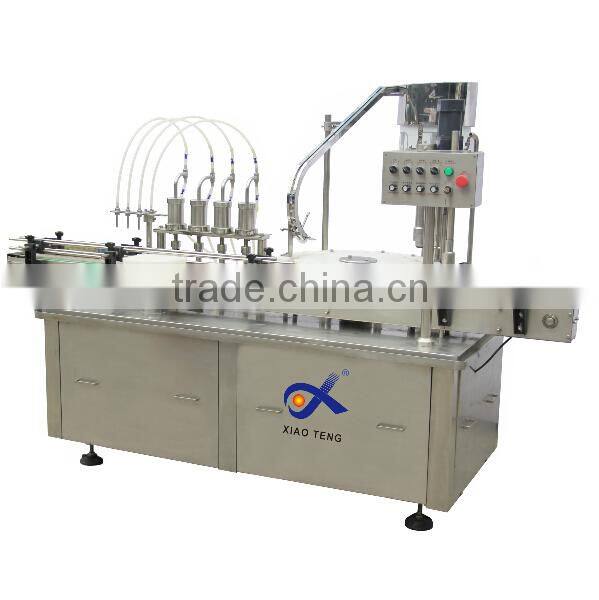

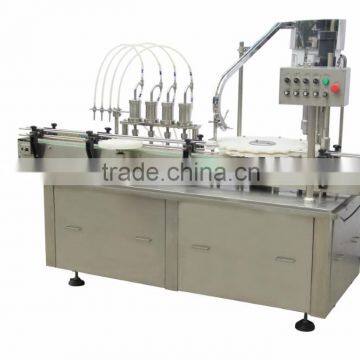

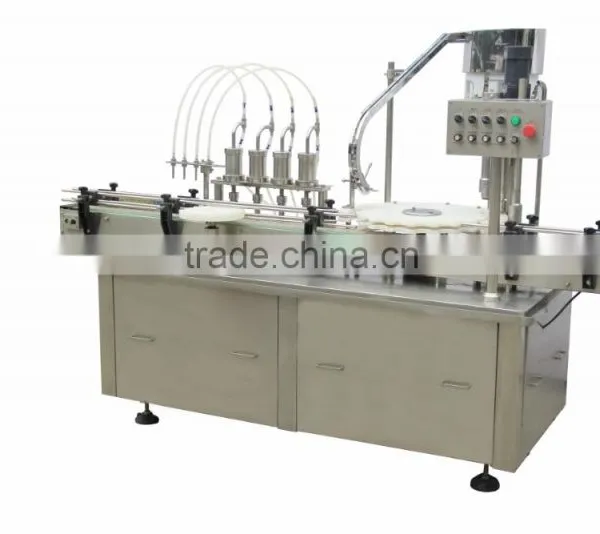

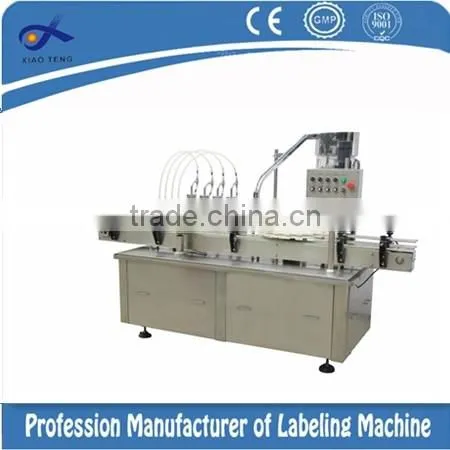

Automatic bottling rinsing filling and capping machine
Purpose and performance:
This machine is mainly applicable to filling/capping operation for 20-500ml plastic or glass bottles,10 pumps are used for double-headed filing/capping.In order to increase corresponding output, stainless steel pumps can be added. This machine structure allows filling production for high-capacity liquid like large infusion,syrup etc,This machine has simple structure,is convenient in maintenance and easy for operation.It is advised to choose corresponding electric configuration and dust cover .
Main features and performance:
1. Bottle feeding, filling and plug putting are on dual rails; linear bottle feeding; liquid level filled can be tracked and controlled by stainless steel valve to ensure there is no adherent liquid and dropping liquid; detect with optical fiber; plug putting by cylinder; stop putting inner plug with no bottles there; percent of pass of putting plug is high.
2. Good safety barrier propterty; Convenient to operate, adopting selective touch screen to operate.
3. Widely used for the volume production of infusion solutions in bigger bottles and large capacity vaccine.
Specification:
Scope |
20-500ml(can be customized) |
Output |
80-120B/M ( Depending on the bottle specifications) |
Weight |
700kg |
Power |
220V 50HZ 1.5KW |
Over Dimension |
2440mm×1350mm×1730mm |
We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
Exihibition show:
| Contact |
| Sales: Adair Wang |
| Tel: 8618930822485 |
| Email: xiaoteng24@ |
| Skype: xiaoteng24@ |
| Xiaoteng Machanical and Electrical Equipment Co., Ltd. |
| Adress: No.3500, Jinhai Road, Fengxian District,Shanghai, China |
