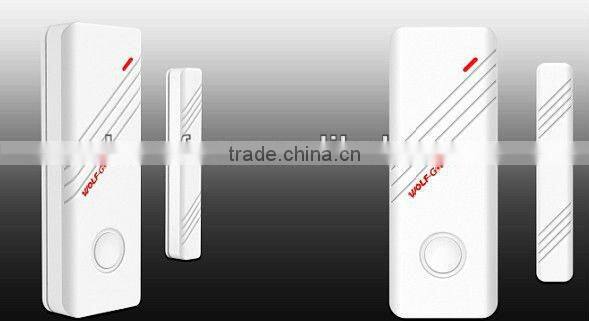

New Alarm Accessory Wireless Door Window Open Sensor Alarm Working With Security System

Specifications

1.Power switch can extend life span of the battery
2.Auto manual alarm button, as well as emergency button
3.Built-in antenna

We are Shenzhen Chitongda Electronic Co.,ltd( Shenzhen wolf-guard security Hi-tech Co.,ltd) is a security products manufacturer with 16 years’ experience in China, It’s has an advanced concept in products development, strong capability in R&D and production, and an original strategy in market spread. Our company passed the ISO9001, 2000 management system, and also has the CE,FCC,ROHS and other authorized certificates. With “wolf-guard” brand, our products obtain high reputation all over the world.











Model: MC-03

Wireless Door / Window Gap Contact sensor with Built-in Antenna:

1. Working voltage: DC 12V (Built-in 12V dry battery)
2. Static working current: <10uA
3. Alarm current: <30mA
4. Working Temperature: +10~+40
5. Humidity: ≤95%
6. Emitting frequency: 315/433/868+0.5MHz
7. Emitting distance: (no exterior soft antenna) no obstacle 80M,(With exterior soft antenna) no obstacle 100M
8. Gap distance: 15mm max
9. Coding method: PT 2262 or EV1527

Main Features:

1. Ultra-thin modern design (appearance design has patent), suitable for various kinds of doors and windows;
2. Shell buckling design for convenient battery changing;
3. Power switch can extend life span of the battery;
4. Auto manual alarm button, as well as emergency button;
5. Built-in antenna, delicate and modern looking.

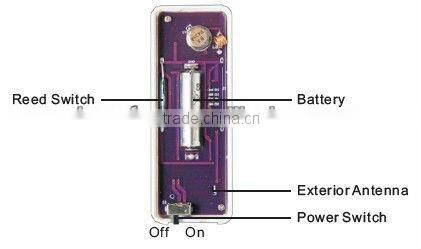

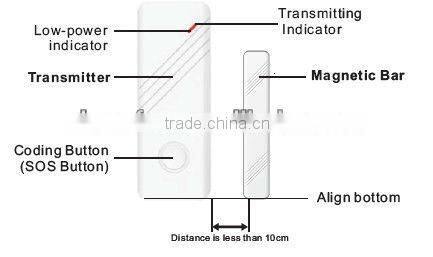

Diagram:
