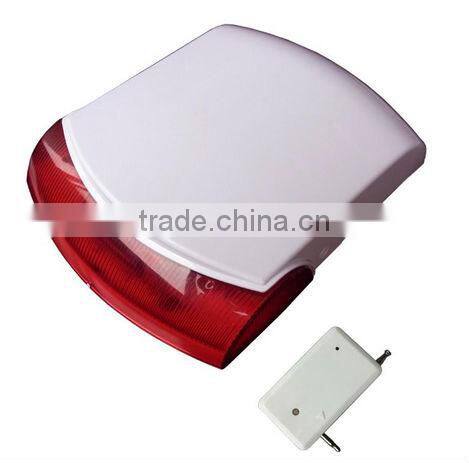

King Pigeon SR-10 Wireless Outdoor Strobe Siren with fully integrated sounder/strobe, self-activating cut-off timer

Standard Package list of hand operated siren SR-10
1. WT-60 315 MHz wireless transmitter x1
2. Rechargeable battery x1
3. 3.5 mm Convert cable x1
4. Screws
5. User Manual x1

King Pigeon SR-10 Wireless Outdoor Strobe Siren with fully integrated sounder/strobe, self-activating cut-off timer

It is can be compatible with any other intruder control panels

The Wireless outdoor Strobe Siren is an alarm device that is bright, flashing light and sound, the unit is mounted on the exterior of the premises to help direct authorities to the location.

>>>>>Installation and specifications of

Bell Box Backup Battery

>>>>>Descriptions

With fully integrated sounder/strobe, self-activating cut-off timer, SAB/SCB mode selection, twin status indication,backup battery,UV resistant PC housing, inner PCB cover, the new external bell box is designed to apply for all the requirements of EN50131-4- Security Grade 2, Environmental Class III and BS4733. And it is can be compatible with any other intruder control panels.

>>>>>Features

1. Dual tamper protection from upper cover removal or removal of the bell box. Optional protection of screw loose.

2. Equipped with internal 7.2V  rechargeable battery, SAB mode is available. Optional VRLA battery room is provided.

3. Red and green status LED indications for easy status confirmation. The indications are as follows:

a.Red and green LEDs flash alternately means system in standby mode.

b.Green LED flash twice quickly means no backup battery power supply.

c.Red and Green LEDs flash twice quickly and pause for 1 second means siren trigger.

d.When main power is cut, red and green LEDs flash quickly and pause 1 second. And siren will sound simultaneous.

4. Piercing siren sound with high-visibility xenon strobe flashed. Twin or single sounders are selectable . Trigger signals for sounders and strobe are separate and both negative and positive inputs are provided.

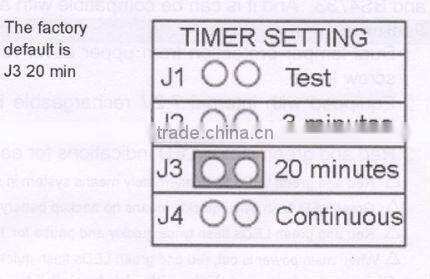

5. 4 kinds of sounder timer selections. The default selection is 20 minutes. 5 sec (for test) 3 min, and continuous sound are selectable with jumpers.

6. External or Internal tamper trigger is selectable.

Please ensure that the jumper is set in the desired position after test. 20 min duration is recommended.

>>>>>Technical Specifications:

Ø Working Voltage: 12-15VDC;

Ø Power Consumption: 380mA;

Ø Sound Volume: two piezos with 120dB in 1meter;

Ø LED Flash Frequency: 60times/minute;

Ø IP Rate: IP55;

Ø Backup Battery: 7.2V/500mAh NiMH

Ø Transmission Distance: 100Meters;

Ø Frequency: 315Mhz;

Ø Wireless Code IC: PT2262

Ø 300L*220W*65Hmm.

Technical Data

Jumper Setting

The Jumper setting should be done under the condition of no hold off power supply

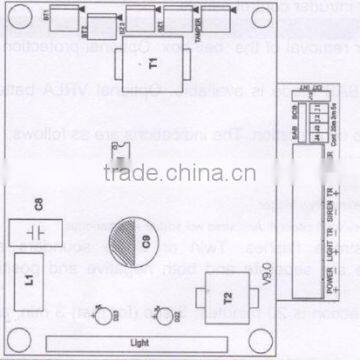

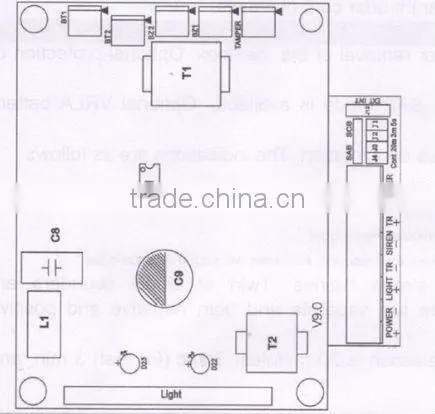

PCB Diagram

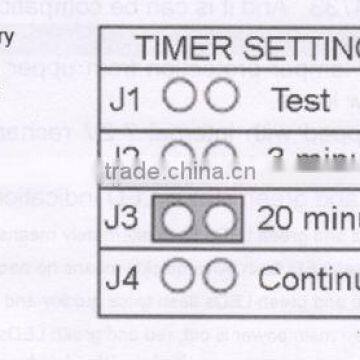

Cut Off Timer

>>>>>Tamper Selection

The factory default is INT (internal trigger).

In INT mode: The tamper will trigger the sounder directly.

In EXT mode: the tamper will trigger the panel first.

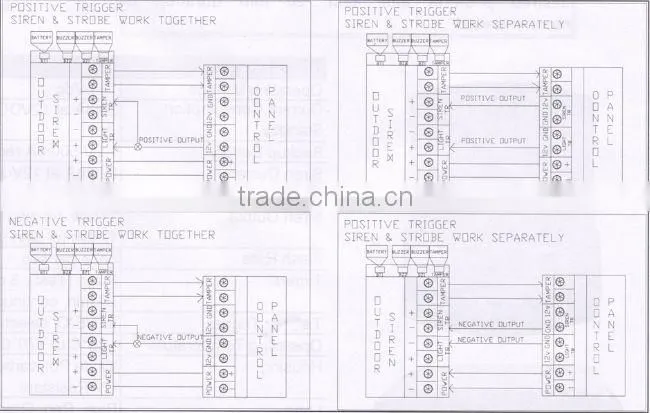

Wiring Diagram

>>>>>SAB/SCB Selection

The factory default is SAB.

In SAB mode: the control panel will power the buzzer.

In SCB mode: the backup battery will power the buzzer.

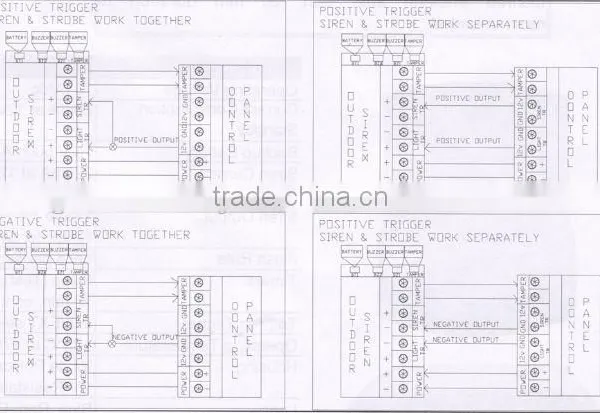

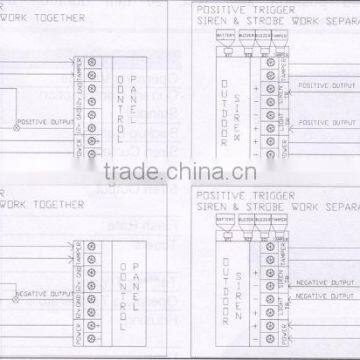

>>>>>Wiring Diagram

>>>>>Certificate and Standards:

The device was tested persuant to applicable procedures and complies with the requirements of :

EMC: EN50130-4:1995+ A1: 1998 +A2:2003

EN61000-6-3:2001

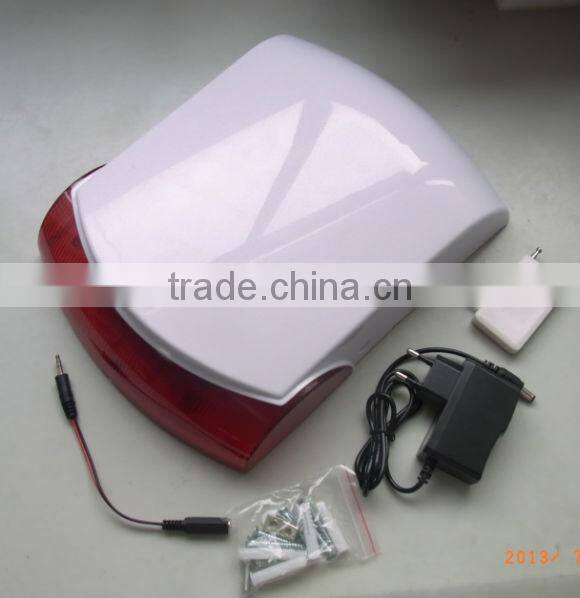

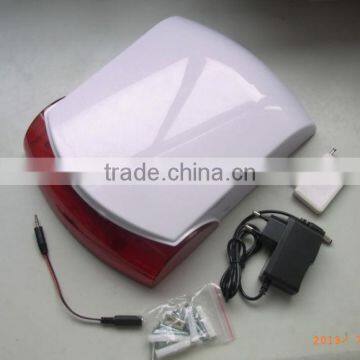

>>>>>Standard Package list of the Wireless Outdoor Strobe Siren SR-10

1. WT-60 315 MHz wireless transmitter ×1

2. Rechargeable battery ×1

3. 3.5 mm Convert cable ×1

4. Screws

5. User Manual ×1
