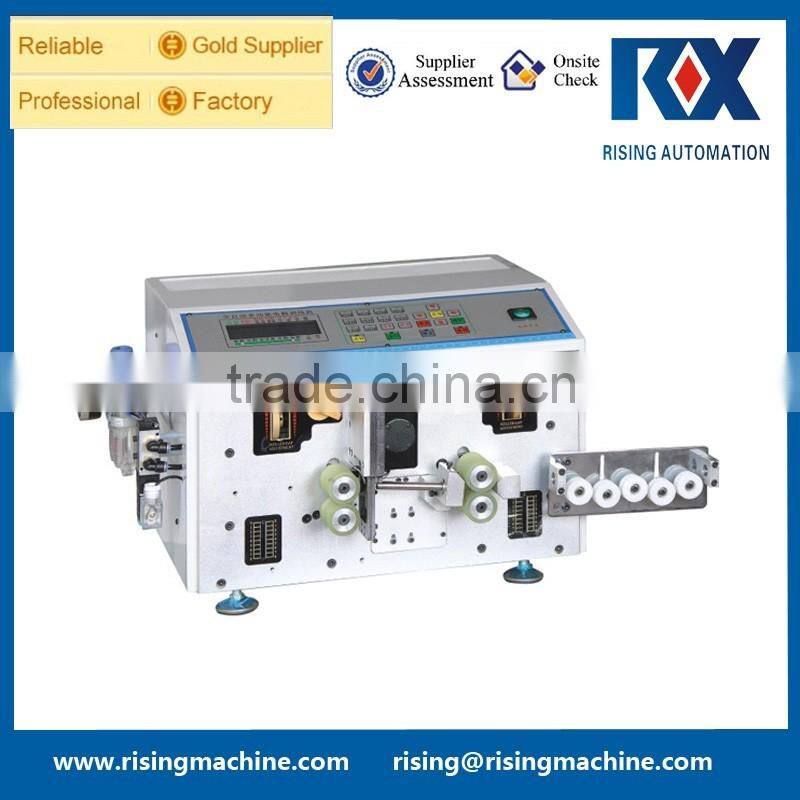

2016 new product high quality rising RX-380 automatic wire cutting and stripping machine
RX-380 High-power Computer Wire Stripping Machine (multi-function)
MobileWhatsapp: +8615217016463 Anne Zeng
Skype: live:rising_48
Features:
The RX380 is a multi functional wire cutting machine, available for processing the wire and thick cable, supported English display screen. This machine is suitable for thick cable, cutting, stripping, half stripping. The machine twisting vigorously, can strip multistage cable, economize hours of manual labor,improve craft precision and production efficiency.
Specifications
Model |
RX-380 High-power Computer Wire Stripping Machine (multi-function) |
Dimension |
445×380×300mm |
Weight |
42kg |
Display mode |
LCD display screen in English |
Power supply |
AC220/50Hz |
Power |
Rated 100W,Max 200W |
Cutting length |
1mm-9999mm |
Cutting Tolerance: |
(0.2±0.002xL) mm |
Stripping length |
Wire head 0-10, wire tail 0-8mm |
Suitable wire core area,depending on model |
16mm2 |
Wire range |
Max ¢9mm |
Cutting tool material |
Tungsten steel BK27 |
Stripping quantity per hour |
1500-8000 strip |
Adjust wire external diameter |
Need |
The quality of wire stripping |
Excellent |
High precision with the decimal part |
Have |
Drive way to adjust |
Four-wheel drive at the same time |
When the wire stripping pressure adjustment |
Adjustable |
Adjust speed |
0-9 |
The user evaluation |
Very good |
ShenZhen Rising Automatic Equipment Limited Company was founded in China's reform and opening period, our Company and Shenzhen became the world electronics manufacturing center of large wave. Experienced more than ten years,We established Ruize Machinery Factory in Nanyang city,Henan province. Producing and assembling automatic wiring harness processing equipment. We also established the DongGuan RuiXin Automatic Equipment Limited Company,take charge of the production,assembling automatic wiring harness processing equipment.As our business developed these years, we established Shenzhen Qihua Wire & Cable Co.,Ltd to cooperate with the whole company group,control the equipment testing and rectification.
Nowadays,our company group became top manufacturer in wire processing industry.We have the most professional technicians, strong creative independent research and development , produced the wire end processing equipment, automated wire processing equipment, integrated harness manufacturing system more than 30 kinds. And we can according to customer requirements,to develop and assembling the various of standardization harness processing equipment.
--Is Rising a machine manufacturer?
Yes,we have over 10 years experience in wire harness processing.
--Does Rising use advanced machine parts in the world ?
Yes,we brought and integrated advanced technology from Japan,Occident,and Taiwan area.
--How long will Rising take in delivering?
About 25 working days after receive the deposit.Some of the product less than 15 working days.
--About payment terms after take orders in Rising?
30 % advanced payment by T/T,L/C,Money Gram,West Union,negotiation.
--About warranty period?
We are committed to offer about 2000 hours after delivery or 1 year free warranty (not including wearing parts) ,we can provide door-to-door service,We promise offering life-long maintenance for the products we sold.
--About online technology support?
We are currently preparing the online customer service platform, to solve the customer's problem through online audio and video chat.
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help. Rising provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. Rising engineers are here for your assistance.
---OEM
Rising provides OEM services to our customers.
Sample wires
Stripping effect
