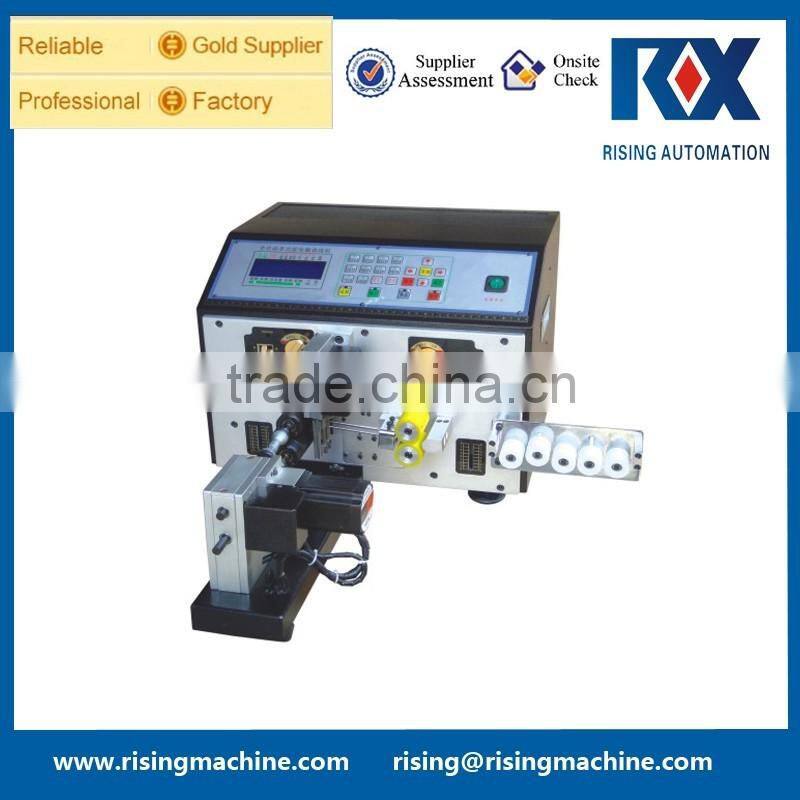

RX-350+T highly efficiently multi-functional Computer wire Stripping Twisting Machine
RX-350+T highly efficiently multi-functional Computer wire Stripping Twisting Machine
STRIPPING METHOD
SHORT WIRE FRONT(REAR)STRIPPING
FRONT(REAR)HALE-STRIPPING TRL-SECTION STRIPPING
Features:
The RX-350+T is high precision, high speed, multi-functional machine.Available for electronic wire, silicon rubber wire, teflon wire, glass fiber cotton, segregation wire, etc. This full automatic cutting, stripping, half-stripping, middle stripping & twisting machine is also adoptable for diversified sizes wires.
Specifications:
Model |
RX-350+T Computer Stripping (Torsion Wire)Machine |
Dimension |
450mm*720mm*360mm |
Weight |
39kg(NET) |
Power supply |
AC110V/220V 50/60Hz |
Power consumption |
MIN.20W-MAX.220V |
Cutting length |
0.1-60000mm |
Stripping length |
0.1-99mm (Depends on wire) three-section stripping can reach 999mm |
Cutting tolerance |
Can be modified |
Applicable size |
AWG#12-AWG#32 (Depends on wire) |
ShenZhen Rising Automatic Equipment Limited Company was founded in China's reform and opening period, our Company and Shenzhen became the world electronics manufacturing center of large wave. Experienced more than ten years,We established Ruize Machinery Factory in Nanyang city,Henan province. Producing and assembling automatic wiring harness processing equipment. We also established the DongGuan RuiXin Automatic Equipment Limited Company,take charge of the production,assembling automatic wiring harness processing equipment.As our business developed these years, we established Shenzhen Qihua Wire & Cable Co.,Ltd to cooperate with the whole company group,control the equipment testing and rectification.
Nowadays,our company group became top manufacturer in wire processing industry.We have the most professional technicians, strong creative independent research and development , produced the wire end processing equipment, automated wire processing equipment, integrated harness manufacturing system more than 30 kinds. And we can according to customer requirements,to develop and assembling the various of standardization harness processing equipment.
--Is Rising a machine manufacturer?
Yes,we have over 10 years experience in wire harness processing.
--Does Rising use advanced machine parts in the world ?
Yes,we brought and integrated advanced technology from Japan,Occident,and Taiwan area.
--How long will Rising take in delivering?
About 25 working days after receive the deposit.Some of the product less than 15 working days.
--About payment terms after take orders in Rising?
30 % advanced payment by T/T,L/C,Money Gram,West Union,negotiation.
--About warranty period?
We are committed to offer about 2000 hours after delivery or 1 year free warranty (not including wearing parts) ,we can provide door-to-door service,We promise offering life-long maintenance for the products we sold.
--About online technology support?
We are currently preparing the online customer service platform, to solve the customer's problem through online audio and video chat.
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help. Rising provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. Rising engineers are here for your assistance.
---OEM
Rising provides OEM services to our customers.
Sample wires
Stripping effect
