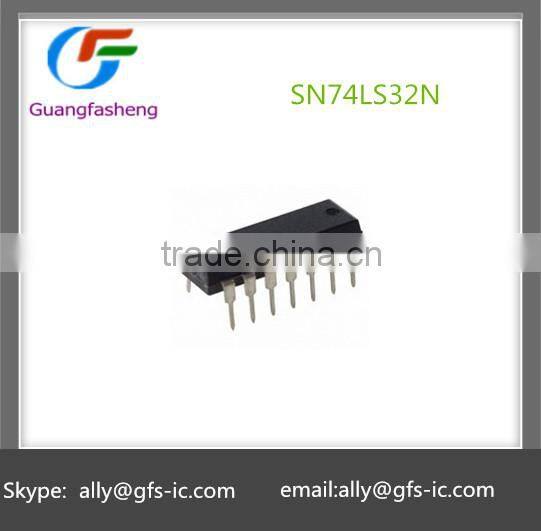

IC SN74LS32N Four Groups of 2 Input Terminal or Gate is Logic Circuit DIP-14
- shenzhen hongkong
- Credit Card PayPal
You May Like
Product Details
| D/C | 14+, 2014+ | Package | DIP-14 | |
| Model Number | SN74LS32N | Type | Other, ic | |
| Brand Name | original and new | Place of Origin | Colorado, United States |
Product Description
| Logic Function | OR Gate |
| Logic Family | 74LS |
| Temperature, Range, Operating Ambient | 0 to +70 C |
| Operating Temperature | 0C ~ 70C |
| Voltage, Input, Low Level | 0.8 V |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Voltage, Input, High Level | 2 V |
| Product | OR |
| Voltage, Supply | 5 V |
| High Level Output Current | - 0.4 mA |
| Propagation Delay Time | 22 ns |
| Package Type | PDIP-14 |
| Maximum Operating Temperature | + 70 C |
| Number Of Circuits | 4 |
| Propagation Delay Time, (high-to-low Level Output) | 14 ns (Typ.) |
| Temperature, Operating, Range | 0 to +70 C |
| Minimum Operating Temperature | 0 C |
| Supply Voltage (max) | 5.25 V |
| Current, High Level Output | -0.4 mA (Max.) |
| Low Level Output Current | 8 mA |
| Function Type | 2-Inputs |
| Current, Supply | 3.1 mA (High), 4.9 mA (Low) mA |
| Current, Low Level Output | 8 mA (Max.) |
| Propagation Delay Time, (low-to-high Level Output) | 14 ns (Typ.) |
| Number Of Inputs | 2 |
| Mounting Type | Through Hole |
| Voltage, Input Clamp | -1.5 V (Max.) |
| Current - Output High, Low | 800A, 16mA |
| Logic Type | OR Gate |
| Mounting Style | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Supply Voltage (min) | 4.75 V |
package :
will be packaged in a small box with safe foam
Neutral package
shipping:
We accept payment as belows:
T/T , Western Union , paypal and so on
1. Our advantage
- Welcome OEM, CEM
- A variety of channels to satisfy various demands including military and industrial product
- Sufficient stock on your urgent demand
- professional knowleage to solve your confusion
- Strong in line: our company is strong in Intergrated Circuit(IC), Module, Capacitor, Resistor, Diode, Led, Crystal Oscillator, SD card etc. All parts are from Original factory or Brand Authorized source. Most of them are in stock with aggressive price.
- Quality: 100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.
-Warranty: more than 90 days.
2. Stock
Specification
1. Aggressive price
2. Rohs
3. Excellent pre & after sale service
4. New Original
5. Welcome sample order
6. Faster lead time
7. In stock
GFS Technology is a leading supplier of IC (Integrated Circuit), Diodes, Resistance and Capacitor, PCB Board/Module etc. electronic components .
