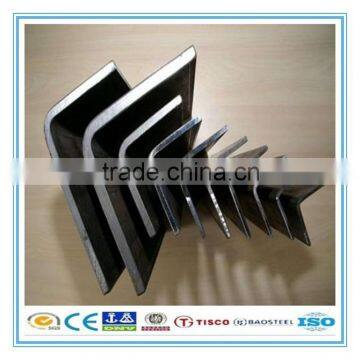

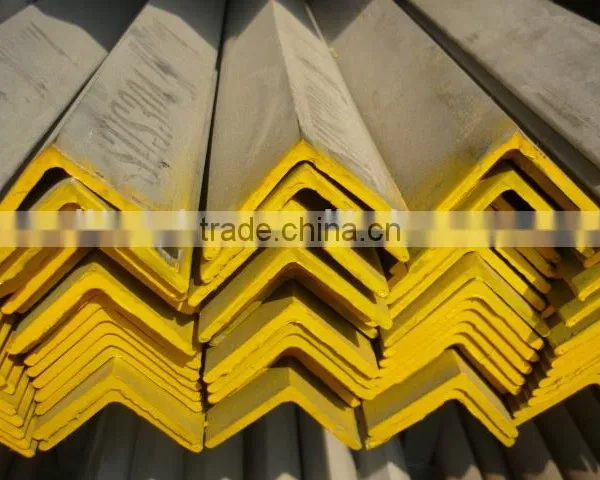

Products | Hot rolled steel angle standard sizes |
Grade | Q235,SS400B,A36,S255JR.ect |
Specification | 20*20--200*200mm. |
Length | 6m, 12m |
Technique | Hot rolled |
Application | Widely used in various building structure and engineering structure, such as the beam, bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower, container frame and warehouse.etc |
Payment | 100% irrevocable L/C at sight 30% T/T prepaid and the balance against the copy of B/L |
Reference sizes,
Size | Weight | Size | Weight | Size | Weight |
(mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
25*3 | 1.124 | 70*6 | 6.406 | 100*16 | 23.257 |
25*4 | 1.459 | 70*7 | 7.398 | 110*8 | 13.532 |
30*3 | 1.373 | 70*8 | 8.373 | 110*10 | 16.69 |
30*4 | 1.786 | 75*5 | 5.818 | 110*12 | 19.782 |
40*3 | 1.852 | 75*6 | 6.905 | 110*14 | 22.809 |
40*4 | 2.422 | 75*7 | 7.976 | 125*8 | 15.504 |
40*5 | 2.967 | 75*8 | 9.03 | 125*10 | 19.133 |
50*3 | 2.332 | 75*10 | 11.089 | 125*12 | 22.696 |
50*4 | 3.059 | 80*6 | 7.736 | 125*14 | 26.193 |
50*5 | 3.77 | 80*8 | 9.658 | 140*10 | 21.488 |
50*6 | 4.465 | 80*10 | 11.874 | 140*12 | 25.522 |
60*5 | 4.57 | 90*8 | 10.946 | 140*14 | 29.49 |
60*6 | 5.42 | 90*10 | 13.476 | 160*12 | 29.391 |
63*4 | 3.907 | 90*12 | 15.94 | 160*14 | 33.987 |
63*5 | 4.822 | 100*8 | 12.276 | 160*16 | 38.518 |
63*6 | 5.721 | 100*10 | 15.12 | 160*18 | 48.63 |
63*8 | 7.469 | 100*12 | 17.898 | 180*18 | 48.634 |
70*5 | 5.397 | 100*14 | 20.611 | 200*24 | 71.168 |
In bundles, load into container, if large quantity, ship by bulk vessel.
