Real Estate Ladder & Scaffolding,
Steel Scaffoldings for Framework Construction
♦ Introduction of construction steel scaffolding
Scaffolding is a temporary project which installed, used, and removed by the construction unit in order to meet the needs of the construction. A project needs to build a variety of scaffolds, such as scaffolds for workers operation, the scaffolds for traffic safety, also the scaffolds for formwork templates support and bearing. In a word, the scaffold is an important and indispensable position in the building construction.
♦ Know More About Ring Lock Scaffolding
The ring lock scaffolding (upright scaffold) is a kind of new type steel pipe scaffold which has self-locking function, the main components are the vertical and cross pipes. Lock joints structure is reasonable, make the scaffolding overall in three-dimensional space structure with high intensity, good overall stability, and has reliable self-locking function, can effectively improve the overall stability of the scaffold strength and safety, can better meet the needs of the construction safety.
The advantages are installing rapidly, energy saving, simple structure, stable and reliable, strong commonality, large bearing capacity, safe and efficient, not easily lost, easy to manage, easy to transport, etc.

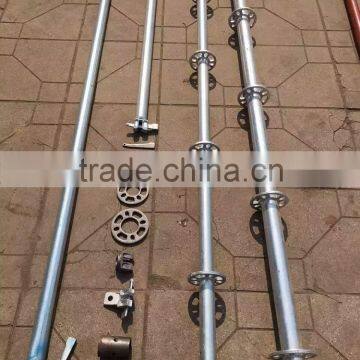

♦ The components of ring lock scaffolding
♦ The detailed sizes of ring lock scaffolding
Name |
Ring lock scaffolding |
|
Brand |
SHUOWEI (SW) |
|
Pipe Diameter |
60/48 mm |
|
Pipe Thickness |
3.2/3.0 mm |
|
Cross-pipe Length |
0.6, 0.9, 1.2, 1.5, 1.8, 2 mm |
|
Vertical-pipe Length |
0.2, 0.5, 1.5, 2, 2.5, 3 mm |
|
Surface |
Painted, Hot-dip Galvanized |
|
Advantages |
Durable, fast, easy to install |
♦ The main features of ring lock scaffolding
√ In the aspect of usage consumption
The cross-pipe of the ring lock scaffolding maximum length can reach 3 meters, vertical-pipe the maximum length is 3 meters, it reduces the amount of scaffolds of every square meter;
The vertical-pipe is Q345 material, support pressure rate is big, also indirectly reduce the unit square meters of steel consumption.
The ring lock scaffolding can dismantle the cross-pipe early according to the engineering situation, this parts of pipes can be used to the rest of the construction, it saves the amount of material directly.
√ In the aspect of work efficiency
Common steel fasteners set-up speed of individual workers in 35m/day
bowls scaffolding’s speed is in 55m/day
ring lock scaffold speed can reach 150 m/day
√ In the aspect of construction cost
As can be seen from the usage and efficiency, although the initial investment is relatively large, but in the amount per square meter and speed of construction, it saves a lot of material costs, working time and daily consumption.

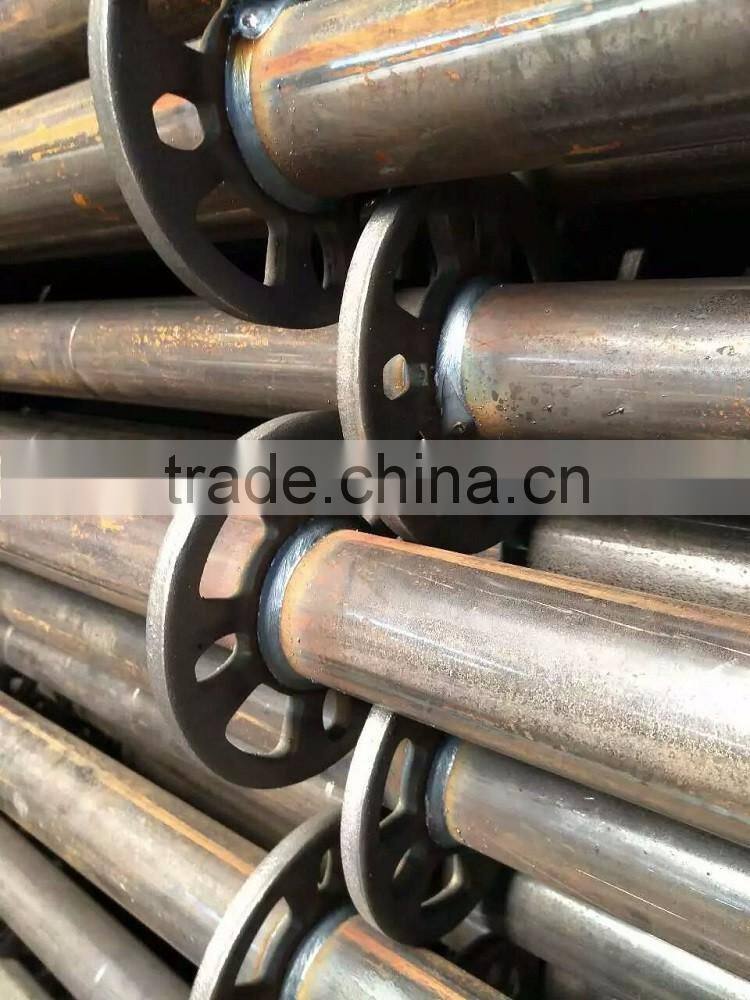

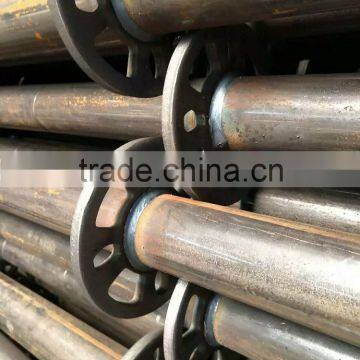

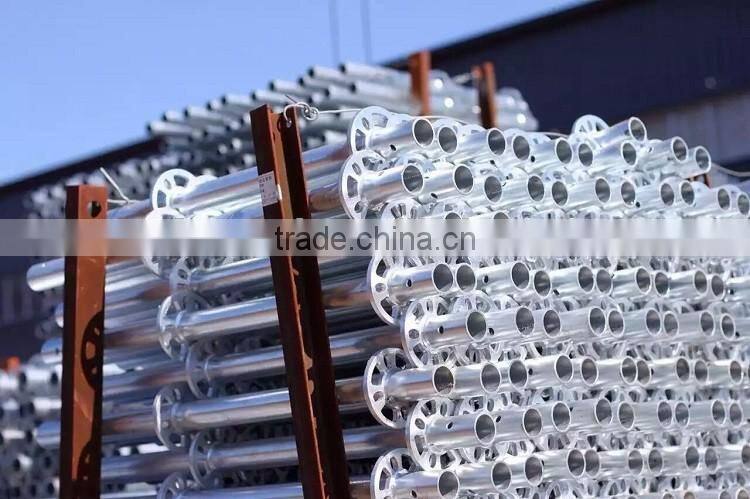

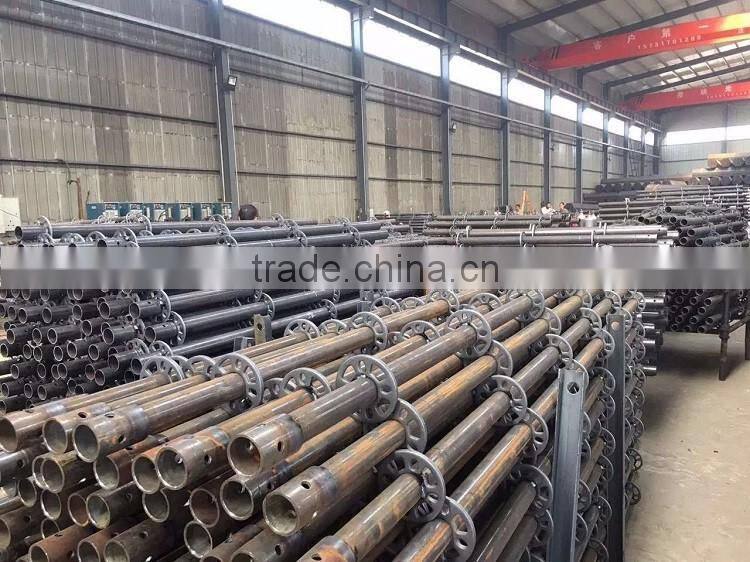

♦ Detailed images of ring lock scaffolding
