High Quality Cheap Galvanized Ring Lock Scaffolding For Construction Jobs
Ringlock scaffolding, also called Modular Scaffolding and Multidirectional Scaffolding, the junction enable quick and easy connection of load bearing items as well as reinforcing parts to each other with an enormous rigidity.

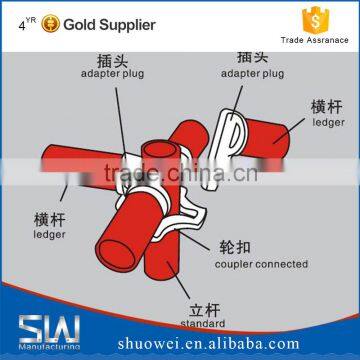

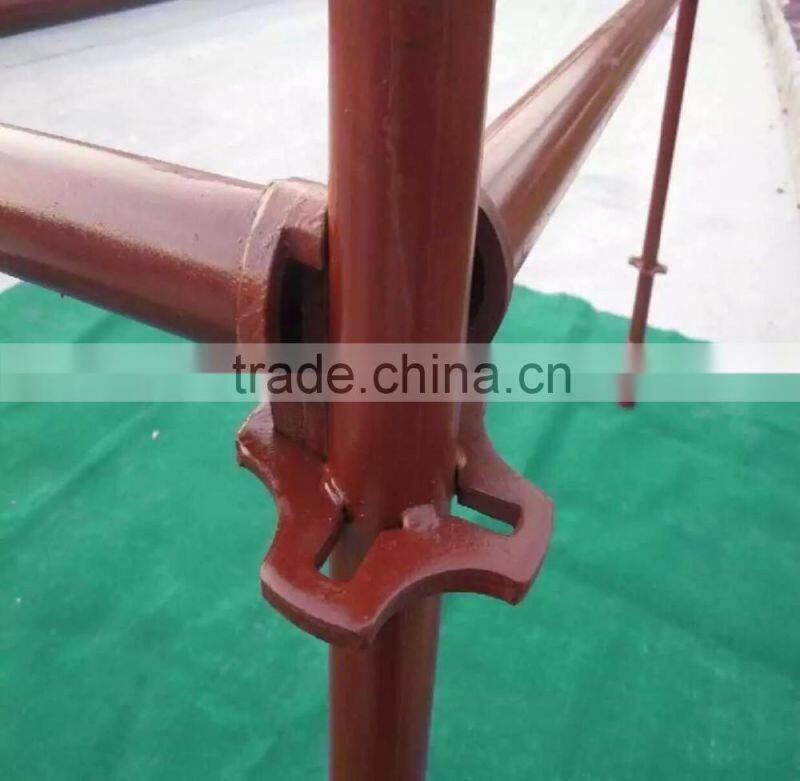

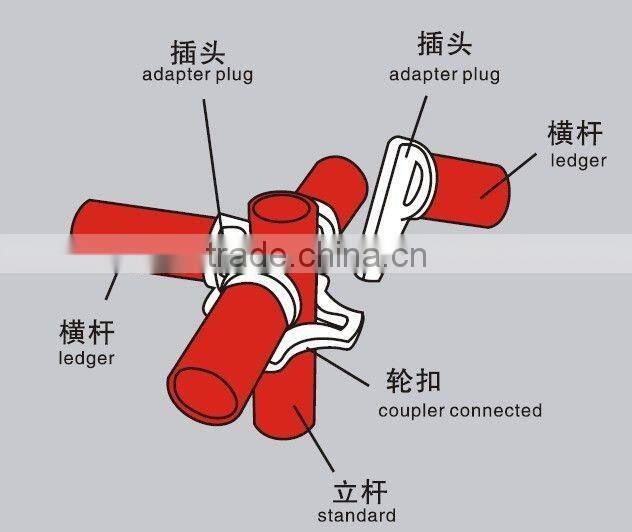

Ringlock scaffolding is the new generation product of cuplock sacffolding.The buckle part is a disc which diameter 133mm,and thickness 10mm. Scaffold vertical is a tube of D48*3.25mm which material is Q235/Q345B. On the vertical welded many disc every specific distance ,there is 8 holes on the disc,used to jonit the posts. On the bottom of vertical post is a base collar used to connect the scaffolding and the ground. Ledger is made by a tube with two wedge welded on the ends separately.
Ringlock Scaffolding features:
1. Ringlock Scaffolding has fewer components, easy and quick assembly.
2. Ringlock Scaffolding with advanced structural design, heavy load bearing capacity.
3. Ringlock Scaffolding overcomes the difficulty of non-standard construction, suited to diverse range of on-site scaffold operations.
4. Single scaffold kit, no extra clamps or accessories required, no need small parts.
5. Ringlock Scaffolding parts can be packed in bundles for easy storage and transportation.
6. Ringlock Scaffolding surface Finished: Electric/hot galvanized or plastic coated

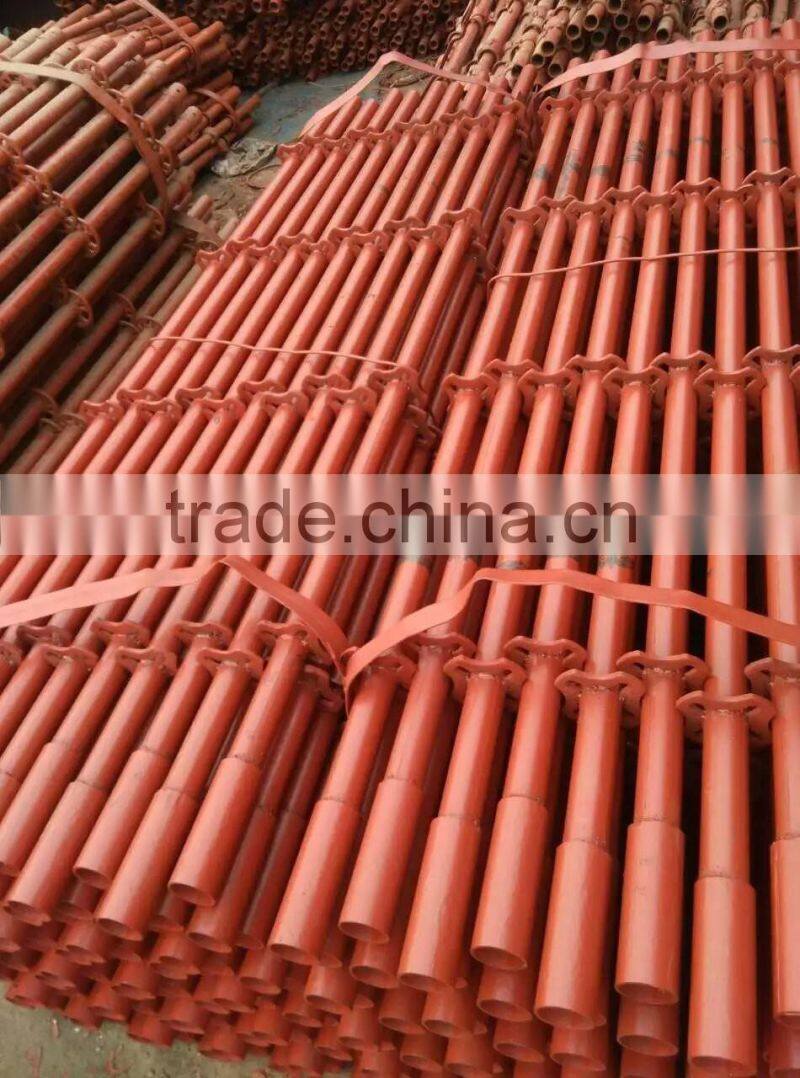

7. Ringlock Scaffolding Packing detail: Palletized in steel pallet and baled with steel tape
8. We also can manufacture as per customers requirements

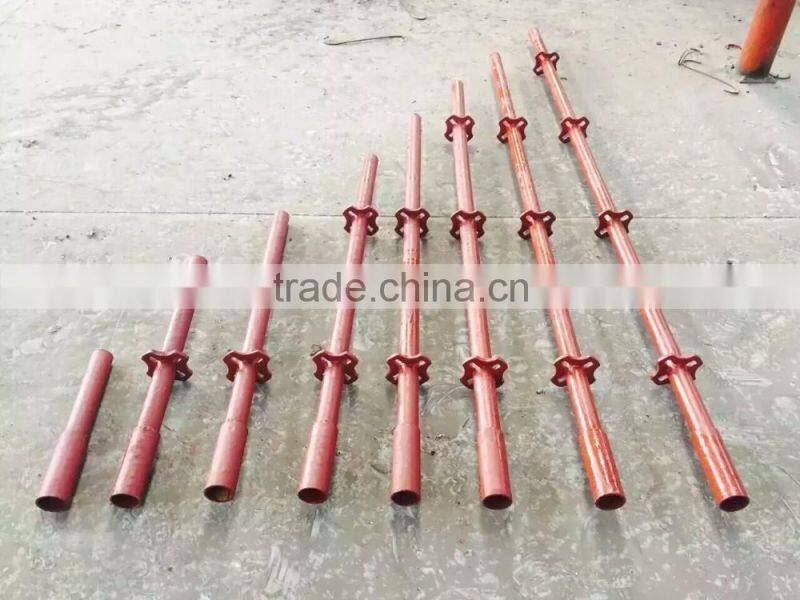

The Standards(Verticals)
Standards are the vertical members of Ringlock scaffolding. The standard provides the vertical support for scaffolding.
Specifications:
| Code | Length(mm) |
Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
| RS-S-3000 | 3000 | 3/3.25 | 48 | HDG/Painted |
| RS-S-2500 | 2500 | 3/3.25 | 48 | HDG/Painted |
| RS-S-2000 | 2000 | 3/3.25 | 48 | HDG/Painted |
| RS-S-1500 | 1500 | 3/3.25 | 48 | HDG/Painted |
| RS-S-1000 | 1000 | 3/3.25 | 48 | HDG/Painted |
| RS-S-500 | 500 | 3/3.25 | 48 | HDG/Painted |
The Ledgers(Horizontals)
Ledgers are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid-rail and top or hand rail, guardrails.
Specifications:
Code |
Length(mm) | Effective Length(mm) |
Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
| RS-L-2000 | 2000 | 2050 | 3/3.25 | 48 | HDG/Painted |
| RS-L-1770 | 1770 | 1820 | 3/3.25 | 48 | HDG/Painted |
| RS-L-1150 | 1150 | 1200 | 3/3.25 | 48 | HDG/Painted |
The Diagonal Brace
Diagonal Braces are used for the lateral bracing of Ringlock scaffolding.
Specifications:
| Code | Length(mm) |
Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
RS-D-2411 |
2411 | 3 | 48 | HDG/Painted |
RS-D-2244 |
2244 | 3 | 48 |
HDG/Painted |

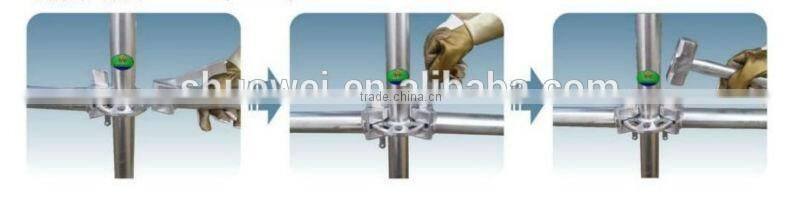

Ringlock Scaffolding erection sequence:
We are Supplier and Manufacturer
all kinds of scaffolding systems, scaffolding accessories, formwork systems, concrete machines, construction machines and construction tools.
If you are interested in our products, plz feel free to contact me!!
SW are always on your service!!
