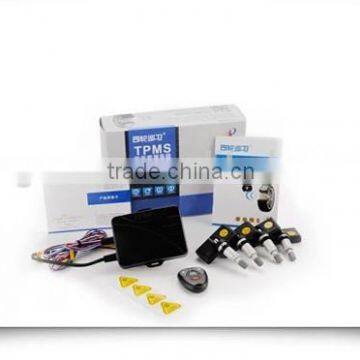

TPMS tire pressure monitoring system internal tpms tool
Product advantage:
(1) Infineon chip from Germany imported
(2) Maxell batteries from Japan imported
(3) Our proprietary RF technology ,unique low-power hardware and software design
(4) Sensors life of up to 5-8 years,sensors gas nozzle 30°adjustable
(5)Speed up to 200km / h signal transceiver remains stable

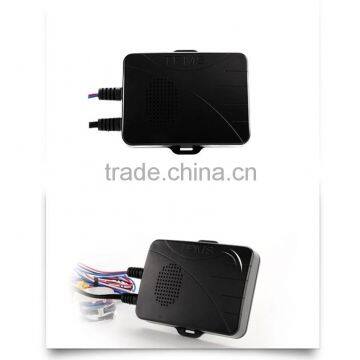

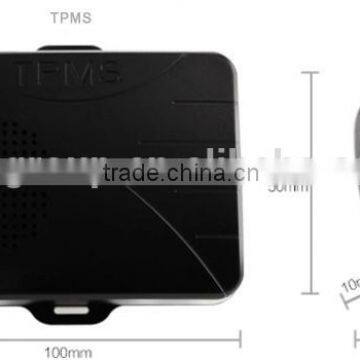

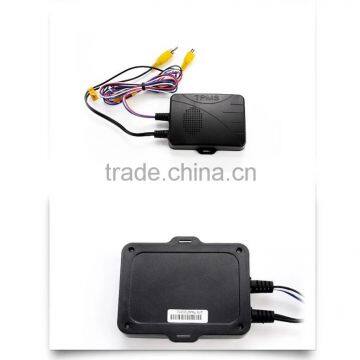

TPMS receiving host:
Voltage/current: 12V/500mA
Equipment Storage Temperature: -20℃-85℃
Operating Temperature: -30℃ -80℃
Operating Humidity: MAX 95%
Weight:142g+/-3g
Protection grade:None
Receiving Frequency: 433.925 MHZ+/-3KHZ
Receiver sensitivity: -100dBm
Overview of the characteristics:
1.All models with vehicle DVD and built-in AV input port.
2.The data on the six wheels display at the same time.
3.Bilingual intelligent menu interface and voice prompt can be customized using car brand.
4.Alarm parameters can be set and voice alarm.
5.Temperature pressure support multi unit switch.
6.Intelligent gas leakage monitoring , strong interference resistance.
No false alarm, no missing alarm.

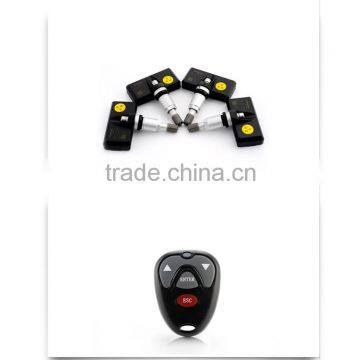

Sensors:
Resistance aluminum alloy gas nozzle
Data sampling rate: 1 time/ second
Transmission interval: 10 seconds when driving
Leakage exception handing: real time transmission
Seal type:wide temperature epoxy resin
Gas nozzle angle: adjustable
Working life: 5-8 years
Battery capacity: 550mAH
Protection grade: IP44
Voltage/Current:3.0V/16mA(the emission transient current)
Equipment storage temperature:-20-85℃
Operation temperature: -40-125℃
Operation humidity: MAX95%
Pressure range:0-350Kpa (relative pressure)
Pressure measurement precision: 1.37Kpa
Temperature range: -40-125℃
Temperature measurement precision: 3℃
Launching frequency:433.925MHz±3KHz
Transmitting power:≤10dBm
Weight:26g±2g ( not including the gas nozzle)
Payment and Shipping:
Contact me:
| Skype | sales04-ele |
| 493157804 | |
| +86 13420988102 |
Any questions,please feel free to contact me,I will reply to you within 24 hours.
Many thanks for your attention!
