2.4 Ghz wireless air mouse keyboard smart remote control anti-shake algorithm









1 Product Overview



      This product is a set of air mouse, keyboard, remote control and somatosensory Andrews control functions as one-sided multifunctional smart remote control.



2 Features



       (1): perfect touch, the classic double-sided, full keyboard curve design;

       (2): 2.4G wireless connectivity with low-power, anti-stem worry ability, has a connection status LED indicator;

       (3): supports low-voltage operation: 3.3-4.5V;

       (4): intelligent anti-shake algorithm, smooth mouse cursor stability;



3 Specification



The acceleration sensor 3-axis gyroscope

Gyro sensor 3-axis acceleration sensor

2.4 Ghz wireless communication

Wireless distance 10-20 meters

Radio frequency 2.400-2.483Ghz

Current << 20mA

<< 20uA standby current

Battery Rechargeable Lithium Battery

Two-color LED indicator lights

Remote control Dimensions 146 * 53 * 15mm (L * W * H)

Receiver Size 18.58 * 14.59 * 6.7mm (L * W * H) mini-receiver

Weight 80g

USB Type USB2.0

System requirements compatible with Windows, Mac OS, Linux, Android



4 ways for code



      Warning: This operation may destroy the original pairing, non-special circumstances please use caution.

1) while pressing the left mouse button over 3 seconds, LED1 flash

2) the product close to the receiver wants pairing, put on the table to maintain the level still around LED1 lit three seconds, LED1 flash

3.) LED1 stops blinking rapidly, then the pairing is successful.



5 mouse cursor calibration



     Under normal circumstances the following actions need to use: If you find that the cursor has a drift (voltage state indicates normal)

1) while pressing the left mouse button over 3 seconds, LED1 flash

2) the product close to the receiver wants pairing, put on the table to maintain the level still around LED1 lit three seconds, LED1 flash

3.) LED1 stops blinking rapidly, then the cursor calibration was successful.

     Note: When absolute calibration still keep a handle, if there is movement, calibration data may be incorrect, need to re-operate.



6 Sleep and Wake



To save power to extend battery life, the remote control without any operation goes to sleep after 10 seconds, press any key to wake up empty rats during sleep.



7 cursor speed adjustment



The mouse pointer speed adjustment: Press the left arrow key / direction right three seconds adjustable pointer speed, total third gear speed.



8 working condition Description



After the rat somatosensory air terminal device pairing connection is successful, LED1 will be with the keys



Press and bright, loosen that off.



Lithium-powered, when the power is low, LED1 LED2 lights flashing, you need to recharge.



9.Attention.



1 battery power: Make sure the battery is fully charged, when the battery voltage is low, the cursor stability will be affected.

2 The use of distance: the distance of the actual use of the product will vary affected by electromagnetic fields, make sure that the receiver is not blocked metal objects.

3 LED: This product has a left-color LED lights, green and red respectively, and charge status indication under running state:

     Green: long light indicates that the connection is normal, flashes to indicate when the connection is lost, check the receiver is properly connected to the host, or metal barrier.

     Red: long light is charging.

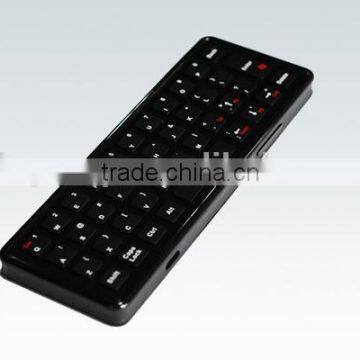

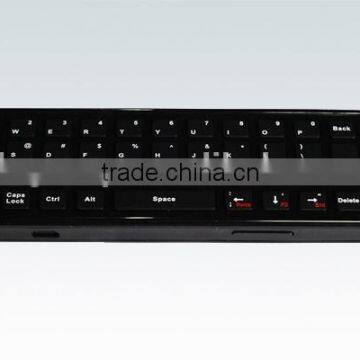

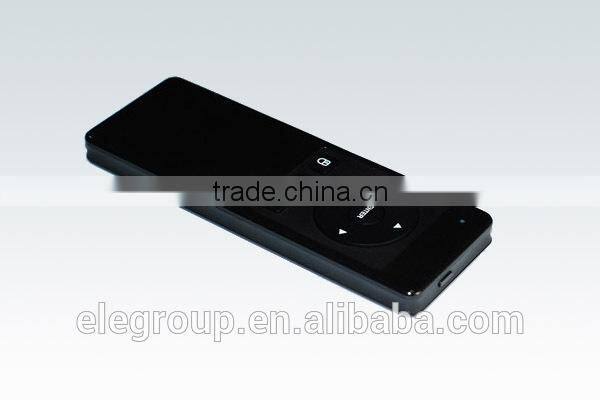

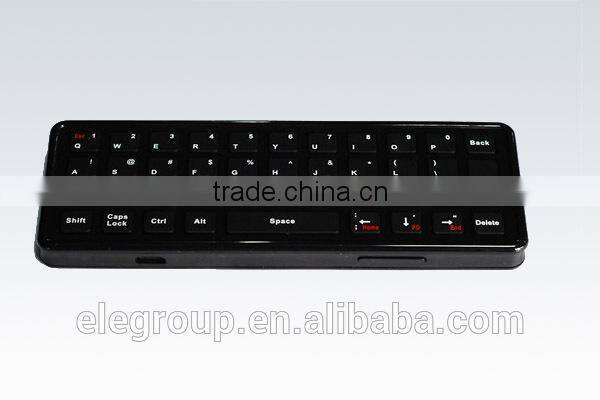

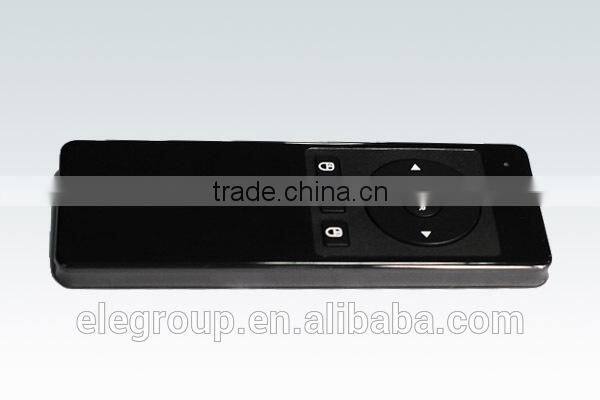

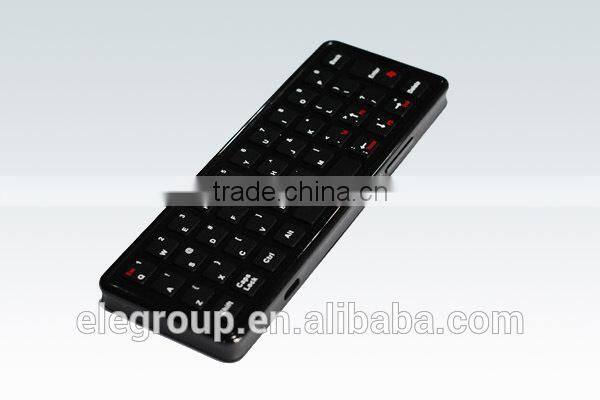

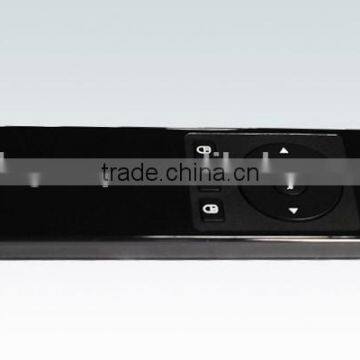

Product Pictures:



2.4 Ghz wireless air mouse keyboard smart remote control anti-shake algorithm2.4 Ghz wireless air mouse keyboard smart remote control anti-shake algorithm2.4 Ghz wireless air mouse keyboard smart remote control anti-shake algorithm2.4 Ghz wireless air mouse keyboard smart remote control anti-shake algorithm
