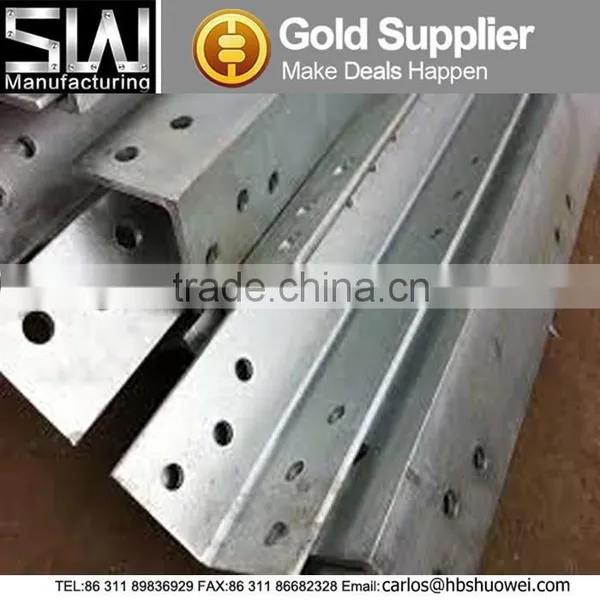

ASTM A36 galvanized steel angle iron with punched holes
Steel Iron is a flat metal rod that has been folded to a 90 degree angle along it's length,resulting in a L-shaped piece.For equal angles the two sides of the angle are of equal length. Angle iron has a very wide range of applications,it can be applied to a variety of enigneering structures and is also used in a variety of metal components and factory framework.Other important uses for angle iron include making field signal towers and transmission tower applications, so we can see angle iron steel plays a key role.If you are looking for a realiable supplier of angle iron steel in China. Welcome to inquiry to us.
Specification of angle iron steel:
| Specifications for (Un)Equal Angle Bar | |||||||
|
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
| 20*20*3 | 0.889 | 63*63*5 | 4.822 | 25*16*3 | 0.912 | 63*40*7 | 5.339 |
| 25*25*3 | 1.124 | 63*63*6 | 5.721 | 32*20*3 | 1.171 | 75*50*5 | 5.339 |
| 25*25*4 | 1.459 | 63*63*8 | 7.469 | 40*25*3 | 1.484 | 75*50*6 | 4.808 |
| 30*30*3 | 1.373 | 70*70*5 | 5.397 | 40*25*4 | 1.936 | 75*50*7 | 5.699 |
| 30*30*4 | 1.786 | 70*70*6 | 6.406 | 40*28*3 | 1.687 | 75*50*8 | 7.431 |
| 40*40*3 | 1.852 | 70*70*7 | 7.398 | 40*28*4 | 2.203 | 80*50*6 | 5.935 |
| 40*40*4 | 2.422 | 70*70*8 | 8.373 | 45*30*4 | 2.251 | 90*56*6 | 6.717 |
| 40*40*5 | 2.976 | 75*75*5 | 5.818 | 50*32*3 | 1.908 | 90*56*7 | 7.756 |
| 45*45*4 | 2.736 | 75*75*6 | 6.905 | 50*32*4 | 2.494 | 90*56*8 | 8.779 |
| 50*50*4 | 3.059 | 75*75*7 | 7.976 | 56*36*3 | 2.153 | 100*63*6 | 7.55 |
| 50*50*5 | 3.77 | 75*75*8 | 9.03 | 56*36*4 | 2.818 | 100*63*7 | 8.722 |
| 50*50*6 | 4.465 | 80*80*6 | 7.376 | 56*36*5 | 3.466 | 100*63*8 | 9.878 |
| 56*56*4 | 3.446 | 80*80*7 | 8.525 | 63*40*4 | 3.185 | 100*63*10 | 12.142 |
| 56*56*5 | 4.251 | 80*80*8 | 9.658 | 63*40*5 | 3.92 | 100*80*7 | 9.656 |
| 56*56*6 | 5.06 | 63*40*6 | 4.638 | ||||

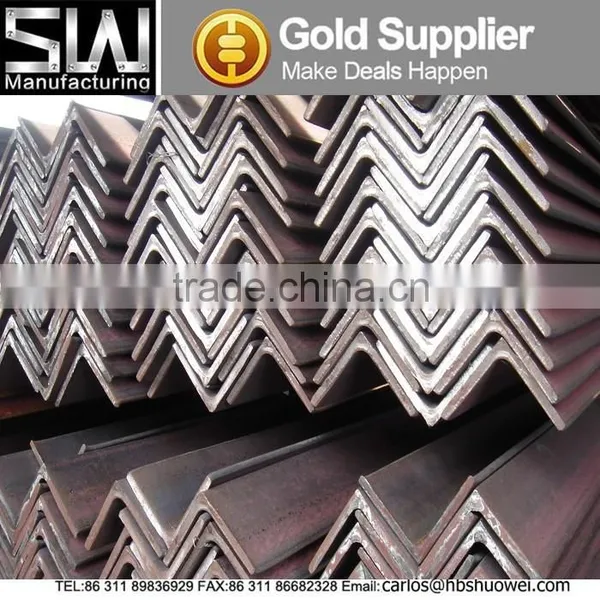

Equal steel Iron angle bar
Application of angle iron steel
