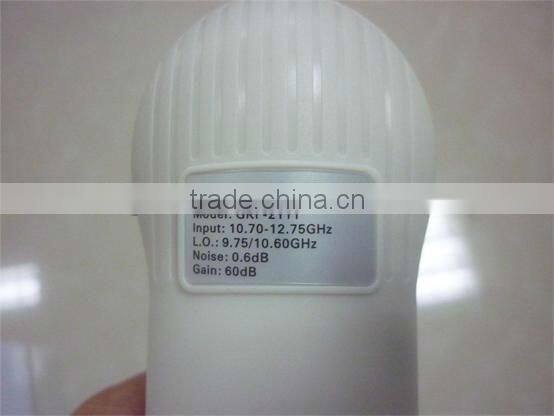

Help CenterLow Noise Figure Single LNB Satellite LNBF
Related Products
Specifications
single lnb, universal LNB for satellite receiver, lowest Noise Figure LNB ku bandSPECIFICATIONS:
1) Input Frequency: 10.70~12.75GHz
2) Output Frequency: 950~2150MHz
3) LO Frequency: 9.75/10.6GHz;9.75/10.75GHz
4) Noise Figure: 0.3dB(Typ.)
5) Conversion Gain: 60dB(Typ.)
6) F/D Radio: 0.6
7) Input Interface: Wave guide WR-75
8) Cross Pol. Isolation: 20dB(Typ.)
9) Image Rejection: 45dB(Min.)
10) Polarity Switching Voltage:Vertical: 12-14.5V ;Horizontal:16-18V
11) Operating Voltage: Vertical:11.5 ~ 14 Vdc ;Horizontal:16 ~19 Vdc
12) Band Switching Pulse: 0/22kHz tone
13) Gain Flatness: (more or less)0.5dB/27MHz 14) D.C.Current Consumption: 160mA(Max.)
15) LO phase noise: -70dB/Hz at 10kHz;-90dB/Hz at 100kHz;-110dB/Hz at 1MHz
16) Output power(at 1dB gain compression): 10dB(Min.)
17) Out put VSWR: 2.5:1(Max.)
18) Output connector: 75 F type female
19) Operating Temperature: -40 ~ +60
20) Storage Temperature: -55 ~ +80
