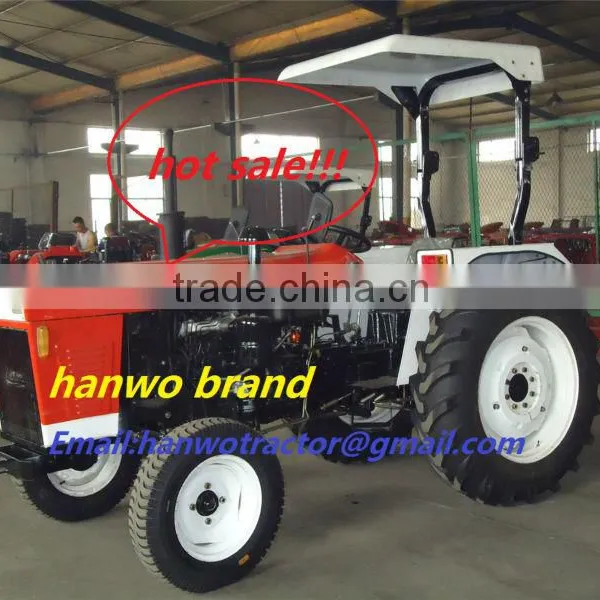

2WD Farm Tractor With 45hp John Deere Chassis

2WD Farm Tractor With 45hp John Deere Chassis thumbnail-1
2WD Farm Tractor With 45hp John Deere Chassis photo-1
US$ 3,899 - 4,299 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Baili Tractor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 33.1kw
Certificate CE
Brand Name Hanwo
Model Number HW450
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available

Specifications

multi-cylinder with powerful ,4WD, kind of options,ROPS&sunshade, double valves, air brake, turf tires, cabin etc.

Main technical specifications

Model

HW204

HW254

HW304

HW354

HW404

Type

4×4 WD

Dimensions

of tractor

(mm)

















Length(without ballast and linkage)

2950

3000

3150

Width

1530

1530

1550

Height (to exhaust)

1970

1970

1980

Height (to Cabin Top)

2250

Tread



Front Wheel

1200 (optional 1000, 1300)

Rear Wheel

1200 (optional 1000, 1300)

Wheel base

1450

Min. Ground Clearance

277

Min. Radius of

Turning(m)



One-side braking

2.4

No braking

2.8

Dry Mass(kg)

1300

Engine









Model



JD295IT



JD2100IT/

LD385

LD3T30/

LD390

LD4L22BT



LD4L23BT



Type

Vertical, Water Cooled and 4-stroke

Rated Power(KW)

14.7

18.4

22.1

25.7

29.4

Fuel

Diesel

Fuel consumption (g/kW.h)

≤250

≤248

≤238

≤238

≤245

Rated Rev.(r/min)

2400

Walking & turning

System







Tire



Front tire

6.00-16

Rear tire

9.5-24(optional 8.3-24,11.2-24)

Connection between engine and clutch

Shaft connection



Clutch

Single Disc, Dry-Friction, Single Stage

Transmission Box

(4+1)×2 Mechanical Type

Steering

Mechanical or Hydraulic Type

Suspension Type

Post positioned Tri-point Suspension, Catalogue I

PTO





Type and Rev.(r/min)

Single speed non-independent type 720 or double speed Non-independent 540/1000

Spline Size(mm)

Post positioned I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)




FAQ



  Q. I'm a complete tractor rookie, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.

Q: What lubrication of the tractor require?
A: there are different oil holes for the engine oil ,fuel ,gearbox ,lifting.

Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage

Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.

Q: What speed and power does the PTO deliver?
A: The PTO has single 720 RPM or dual speeds: 540 / 1000 RPM.

Q: What type of brakes does the tractor have?
A: Drum Brakes on the rear wheels,or air brake.





2WD farm tractor with 45hp john deere chassis2WD farm tractor with 45hp john deere chassis
