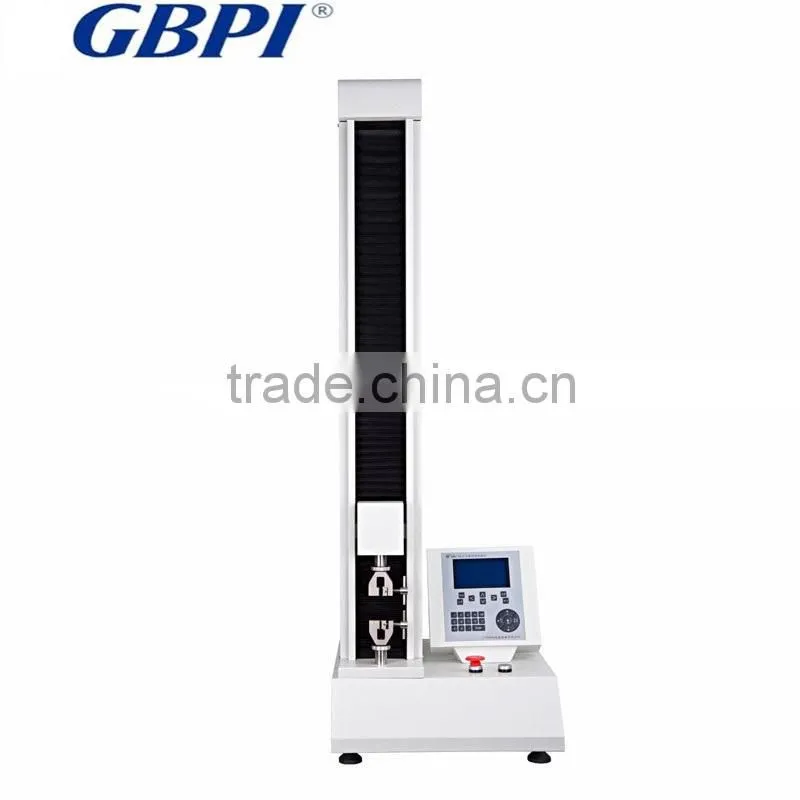

GBH-1 Electronic Tensile Meter
Electronic Tensile Meter
Standards:
GB/T8946, GB 8808, GB 13022, GB/T1040, GB4850, GB/T7753, GB/T7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GBT 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358.
Function:
To test the traction, stripping, sealing, tear, piercing, compression, bending and cutting of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of plastic films, packaging, pharmaceuticals, food, inspection agency, research institute, college and so on.
Application:
* Films
Rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
Engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
Paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Techinical Parameter:
Force range |
0~500N (0~3000N optional ), 1500% elongation |
Force accuracy |
within ±0.5% of the displayed value (grade 0.5) |
Test speed |
0-500mm/min (infinitely variable speeds) |
Displacement |
within ±0.5% of the displayed value |
Test width range |
30mm |
Travel distance range |
800mm |
Instrument size |
600×600×1300mm |
Power |
1000W |
Weight |
70kg |
Features:
1. Accurate test data, simple layout, use friendly;
2. Versatile test functions such as tensile, flexure, puncture, sealing, peeling etc;
3. Measurement force range 0-500N is best value for flexible packaging materials test;
4. Automation save and print test reports;
5. Connecting computer to operate or without computer to test separately;
6. LCD screen on real time display, easily modify parameters;
7. adopts superior components;
8. Versatile operation languages support.
Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
