HOT Selling 1080P FULL HD DVB S2 & T2 Openbox v8 Combo hd Receiver With Best Price MOQ From 1 Piece
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
openbox
Model Number:
openbox V8 COMBO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Hot Selling Openbox V8 DVB-S2 + DVB-T2 Twin Tuner HD Satellite Receiver Supported 3G,GPRS,LAN,USB WiFi Iptv Openbox V8NegotiableMOQ: 1 Piece -
2014 Original Li-V8 Satellite Receiver Support WebTV CCcam Newcamd Set Top Box DVB-S2 DVB-S Full HD 1080P DVB S2 MPEG-5NegotiableMOQ: 1 Piece
-
Hot Sell Full HD 1080P DVB-S2 Set Top Box Dual Core Libertview V8 With Good PriceNegotiableMOQ: 1 Piece
-
Full HD 1008P Satellite Receiver Dvb-s2 Mpeg4 Receiver hd Dual-core Libertview V8NegotiableMOQ: 1 Piece
-
HD Digital Satellite tv Receiver DVB-S2 Set Top Box Dual Core Libertview V8 With Good PriceNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
openbox
Model Number
openbox V8 COMBO
FTA(Free To Air)
Yes
Type
Digital
High Definition
Yes
HOT selling 1080P FULL HD DVB S2 & T2 Openbox v8 combo hd receiver with Best price MOQ from 1 piece
Specification:
| DVB COMBO S2&T2 | ||||
| I. Brief Function: | ||||
| 1, 1080P FULL HD DVB S2&T2 | ||||
| 2, CAS,USB,PVR Ready | ||||
| 3, DVB COMBO S2&T2 | ||||
| 4, Support Network Sharing,Twin Protocol | ||||
| 5, Support USB Wifi,Youtube,Youporn,Weather forecast,Google map,IPTV,3G | ||||
| Note: We reserve the right to change the design and OEM/ODM supported | ||||
| II. Detail in the product: | ||||
| Product Size (MM) | 220*151.5*40(L*W*H) | Packaging | 10pcs/ctn | |
| Panel display | Yes | Display Color | Green | |
| Button | Power/Menu/OK/CH+/CH-/VOL+/VOL- | |||
| USB | USB 2.0 High Speed Host | |||
| CAS | Card Reader support | |||
| IR | Exit IR for 38KHz | |||
| Output Interface | HDMI, RS232, ETHERNET, USB, CVBS+AUDIO L/R, Coaxial,RF Modulator(Ch. 21 fixed) | |||
| HDMI | HDMI(up to 1080P) output | |||
| III. Main Features: | ||||
| Standard | HD DVB-S2 ; HD DVB-T2 Complian | |||
| Encrypt | yes | |||
| RF Video Modulator | Option | |||
| GPRS Module | Option | |||
| Power Supply | Input 220V ~240V, 50/60Hz | |||
| Video Decode | MPEG-2 MPHL;MPEG4/H.264 BP MP&HPL4.1;AVS profileL6.1/4.0/2.0 | |||
| PAL/NTSC | Automatic PAL/NTSC conversion | |||
| Channels Number | 10000 channels TV and Radio programmable | |||
| Favorites | 8 different favorite groups selection | |||
| OSD Language | English German French Portuguese Spanish Italian Russian Turkish Polish Arabic Farsi | |||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||
| Picture | JPEG,BMP,PNG,GIF Supported | |||
| OSD Color | 16-bit OSD with anti-flickering | |||
| Channel Search | Channel search in automatic, manual and network search | |||
| Channel Edit | Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||
| Parental Ctrl | Parental control for channels | |||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | |||
| SoftUpgrade | Software upgrade through USB | |||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||
| Subtitle | Subtitle support | |||
| Teletext | VBI insertion for Teletext,CC and WSS | |||
| Save Channel | Automatic save for last channel | |||
| Ethernet | Support RMII interface, Internet Sharing | |||
| RS232S | Support TWIN and Software upgrade | |||
| CAS | Smartcard reader built-in | |||
| IV.Electric Performance: | ||||
| 1.Memory Size: | ||||
| Flash Memory | 64MB Serial Flash | |||
| DDR2 Memory | 1GB | |||
| 2.DVB-S2 Part | ||||
| Input Frequency Range | 950MHZ-2150MHZ | |||
| RF input Signal LEVEL | -80/-20dBM | |||
| Active Ant Power | 13/18V DC 400mA MAX,Overload Protection | |||
| MPEG Profile Level | MPEG-2 MPHL;MPEG4/H.264 BP MP&HPL4.1;AVS profileL6.1/4.0/2.0 | |||
| Demodulation | QPSK,8PSK,16APSK,32APSK | |||
| DiSEqC Protocols | DiSEqC 1.0, 1.1, 1.2, 1.3 USALS Compatible | |||
| 3.DVB-T2 Part | ||||
| Input Frequency Range | 174~230MHz,470~862MHz | |||
| RF input Signal LEVEL | -15- -75dBm | |||
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD | |||
| Active Ant Power | 5V DC 100mA MAX,Overload Protection | |||
| Demodulation | QPSK,16QAM,64QAM,256QAM | |||
| OFDM Spectrum | 2K,4K, 8K,16K,32K | |||
| Band Width | 7MHz,8MHz | |||
| 4.USB Decode | ||||
| PVR | Support | |||
| Media Supporting | USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card | |||
| File system | FAT32, NTFS (only support first partition) | |||
| USB | PVR with USB HDD, Time shifting with USB HDD | |||
| 5.Multimedia support format | ||||
| movie | mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp | |||
| music | mp3 | |||
| photo | JPG, BMP, PNG, GIF | |||
| 6.Video Decode | ||||
| Video Decode | High Definition MPEG4 AVC/H.264 HPL4.1,MPEG-2 MPHL/ML | |||
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||
| 7.Audio Decode | ||||
| Audio Decode | MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC | |||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||
| Sampling Frequency | 32KHz, 44.1KHz, 48KHz | |||
| 8.Environment | ||||
| Input Voltage | Input 220V ~240V, 50/60Hz | |||
| Consumption | 20W Max | |||
| Temperature | 0℃ to +50℃ | |||
| Humidity | <95% | |||

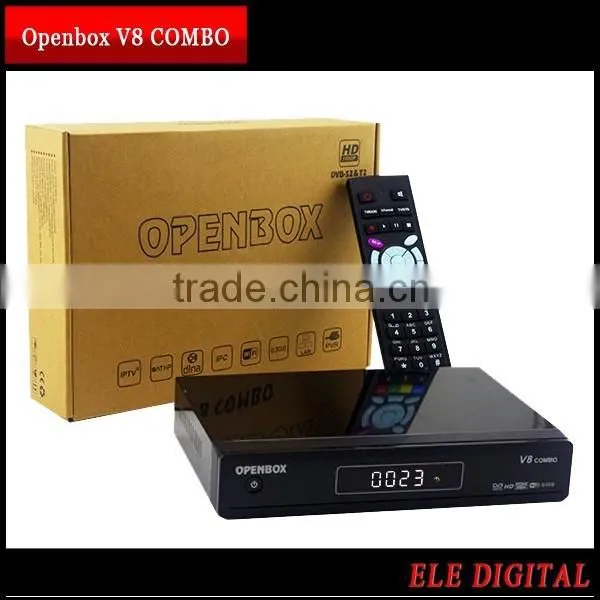

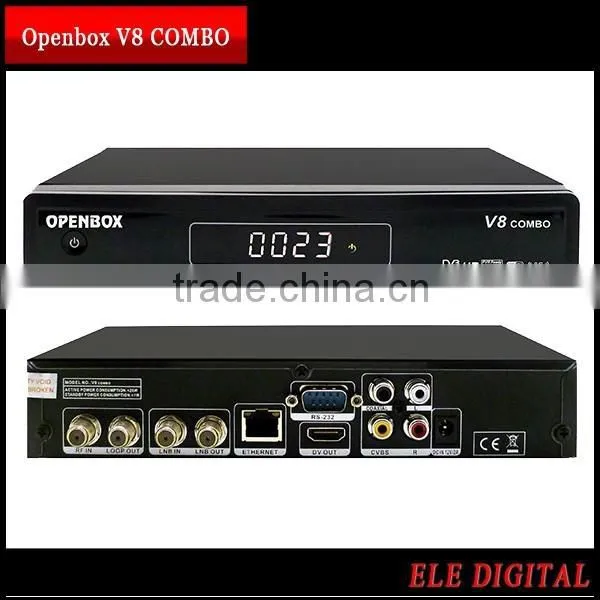

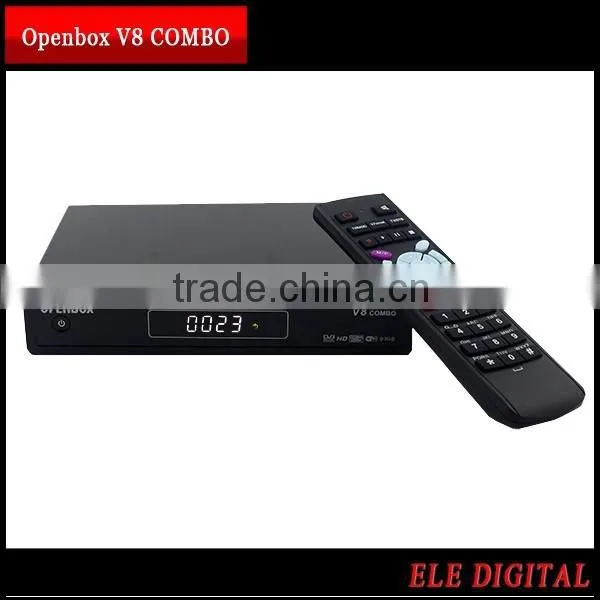

Product photos:
