GBH Tensile Tester (Universal testing machine)
Usage:
It is applicable in the tensile tests of plastic films, laminated films, flexible packaging materials, adhesives, adhesive tapes, pressure sensitive tape, rubber, paper, aluminum-plastic boards and so on.
Tensile Tester can do the test of tensile, tensile resistance and elongation ratio test, hot seal strength, tearing strength, 180 degree peel (include T peel), and 90 degree peel.
standards :
ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, and ASTM F904, ISO 37, JIS P8113.
Our customers:
Specifications:
Computer Servo Tensile Tester | |
Capacity (optional) |
0~500N 1500%elongation |
Unit (Switchable) |
G, KG, N, LB |
Load Resolution |
1/100,000 of the full range of the sensor |
Load Accuracy |
≤0.25% |
Stroke (exclude the grips) |
800mm |
Stroke Resolution |
0.1 mm |
Test speed |
0~500 mm/min selectable |
Weight (exclude the grips) |
70Kg |
Display |
LCD ( linkable to PC ) |
Motor |
Servo Motor ( Panasonic) |
Dimension(W×D×H)-Main Unit |
600×600×1300mm |
Power |
220V/ 15A or designated |
Accessories |
Tensile grips 1 set |

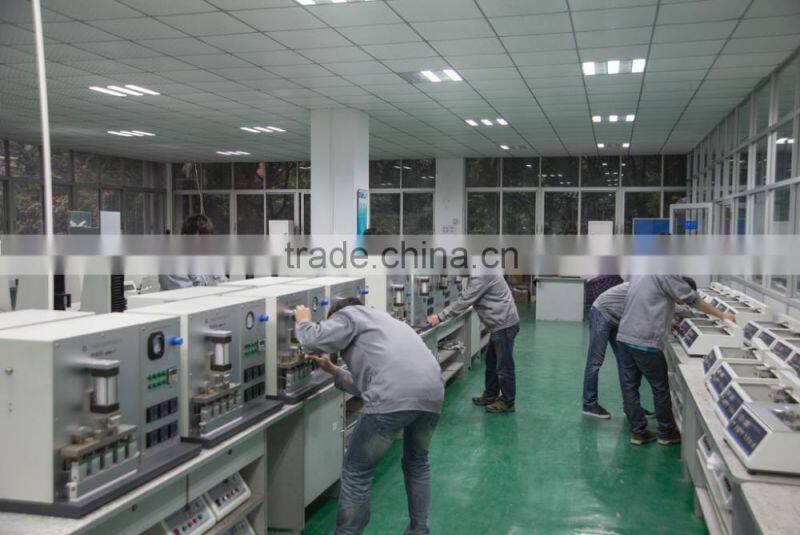

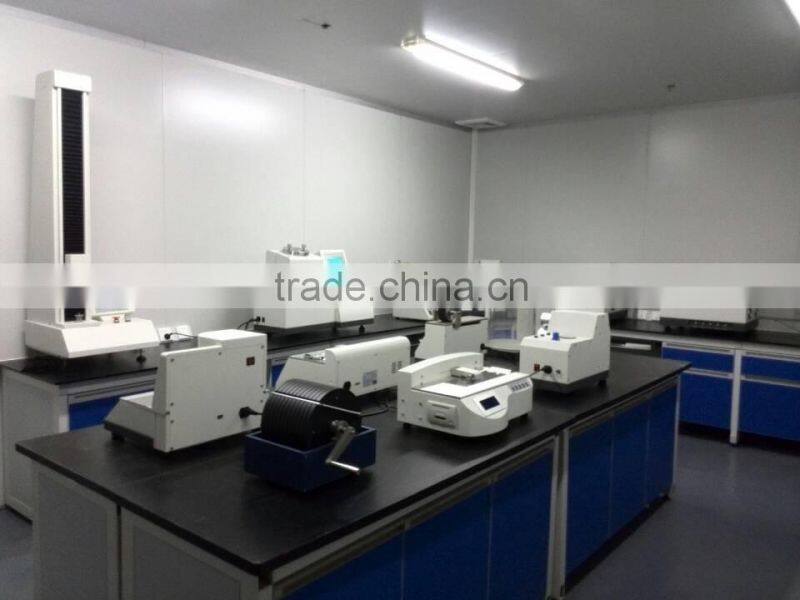

Lab:

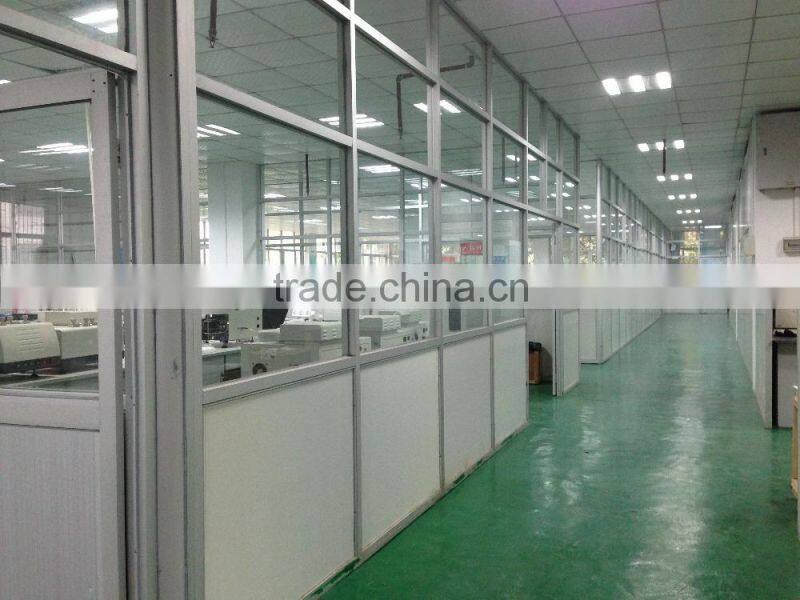

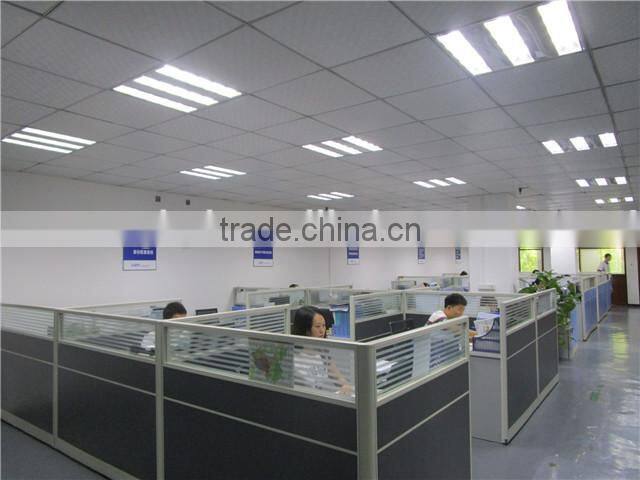

Company view:
