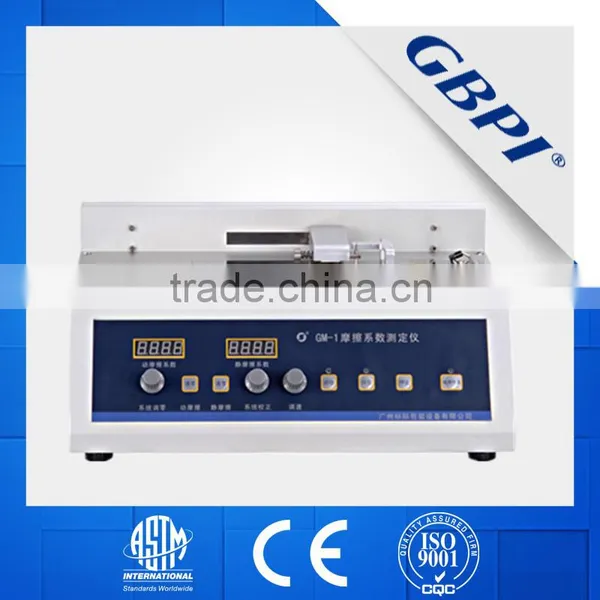

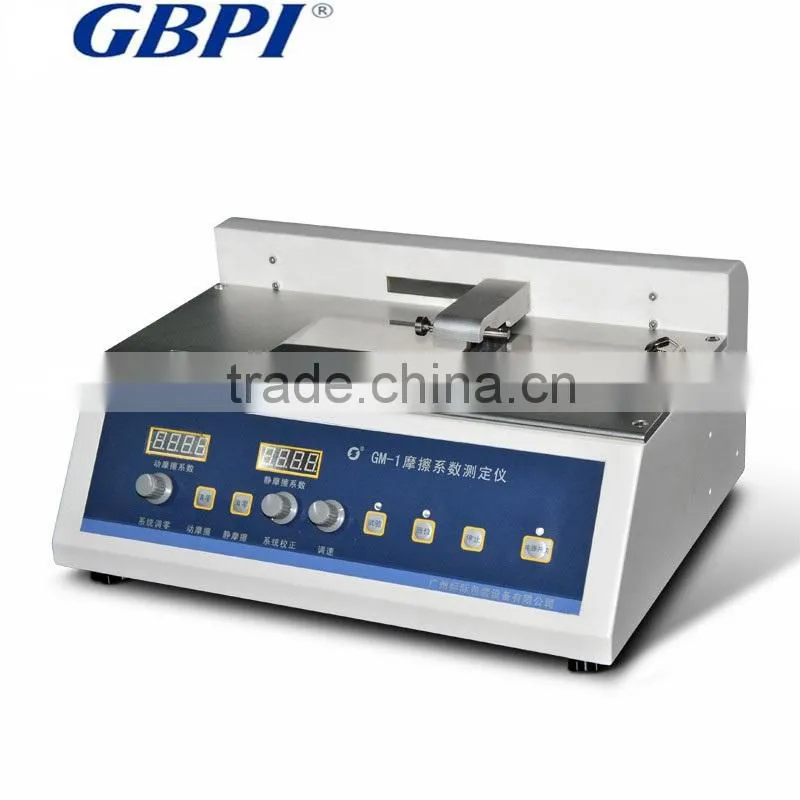

GM-1 Slip and Friction Tester
Standards:
ASTM D 1894 -1990,GB 10006 -1988, TAPPI 816 wd-00,ISO 8295 -1995.
Function:
By testing the friction efficient number judges the smoothness, uniformity of film, efficiently to prevent it’s smoothness level avoiding the quality defects. Used in packaging industry, membrane industry, inspection agency and so on.
Slip and Friction Tester
Application:
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Techinical Parameter
Test range |
0.01 ~ 0.99 |
Test accuracy |
0.01 |
Force range |
0 ~ 2N |
Sliding speed |
100±10mm/min |
Sample thickness |
≤2mm |
Slider size |
63×63mm |
Slider weight |
200±2g |
Platform size |
200×470mm |
Instrument size |
470x340x220mm |
Features:
1.Stable performance, accurate test data;
2.Use friendly and durably;
3.Computer control, test results directly show in the window; connecting computer with professional software online show the test curve and can save the test report as well as print;
4.Import superior components, longer lift time;
5.Simple calibration method;
6.Versatile operation language support
Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
