Box Compression Testing Machine (ASTM D642)
- 15 Set / Sets per Month
- Guangzhou
- T/T
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | GBPI | Model Number: | GBN2000Z |
| Power: | Electronic | Usage: | Compression Testing Machine |
Product Description

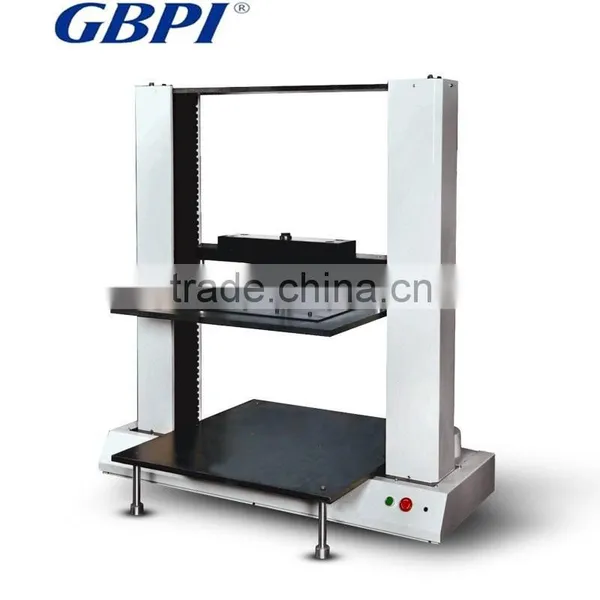

GBN2000Z Box Compression Testing Machine
Box Compression Testing Machine
Standards:
GB/T16491, GB4857.16, ASTMD642, ASTM D4169, TAPPI T804, ISO2872, ISO12048, JISZ0212
Functions:
GBN 2000Z Box compression tester is used to test the compression strength, bending strength ,proof pressure, deformation and stowage for flexible packaging cases , corrugated cases, honeycomb crates, and other packaging cases.
Applications:
Carton boxes and cases
Techinical Parameter
Maximum load | 20KN |
Valid test range | 0.4%-100% |
Test accuracy | ±1% of displayed value (grade 1) |
Force resolution | 0.001N |
Valid test space | 800×800×800mm |
Speed range | 0.01-200mm/min (infinitely variable speeds) |
Speed accuracy | ±1% of displayed value |
Displacement | ±1% of displayed value |
Lifting device speed | 200mm/min, 10mm/min |
Instrument size | 1360×500×1400mm |
Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
Contact Us
- Guangzhou Biaoji Packaging Equipment Co., Ltd.
- Contact nameSusan Zhao
- Phone0086-020-82222550
- AddressJinxiu Road Guangzhou,Guangdong
