Openbox V8 Pro Satellite Receiver Twins Tuner DVB-S2 + DVB-C / DVB-T2 Support Cccam Newcamd Youtube Biss Key
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
openbox
Model Number:
V8 Pro
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C2 WiFi Wecast Miracast Dongle Display Receiver,NegotiableMOQ: 1 Piece -
2015 New Arrival 1080P Wecast Wireless Display Dongle Android Miracast Dongle NO Need EZcast DriverNegotiableMOQ: 1 Piece
-
Wecast c2 2928 Ipush Wireless Display Wifi Dongle Android Ios Google Mac Wind Ows tv StickNegotiableMOQ: 1 Piece
-
WiFi Wecast Miracast Dongle Display ReceiverNegotiableMOQ: 1 Piece
-
2015 New Arrival Easy Use Wecast HD1080P Wifi Miracast tv Dongle Without Apk and Device Upgrade From EZcastNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
openbox
Model Number
V8 Pro
FTA(Free To Air)
Yes
Type
Digital
High Definition
Yes
Openbox V8 Pro Satellite Receiver Twins Tuner DVB-S2 + DVB-C / DVB-T2 Support Cccam Newcamd Youtube Biss Key
DVB COMBO S2&T2&C
| I. Brief Function: | ||||
| 1, 1080P FULL HD DVB-S2&T2&C | ||||
| 2, CAS,USB,PVR Ready | ||||
| 3, Support USB WiFi, 3G | ||||
| 4, Support Network Sharing(CCCAM ,NEW CAM), Twin Protocol | ||||
| 5, Support Youtube,Youporn,Weather forecast,Google map,IPTV, WEBTV, VOD | ||||
| Note: We reserve the right to change the design and OEM/ODM supported | ||||
| Product Size (MM) | 180*145*35(L*W*H) | Packaging | 10pcs/ctn | |
| Panel display | Yes | Display Color | white light | |
| Button | Power/Menu/OK/CH+/CH- | |||
| USB | 2 x USB 2.0 High Speed Host | |||
| CAS | Card Reader support | |||
| IR | Exit IR for 38KHz | |||
| Output Interface | HDMI, RS232, ETHERNET, USB, CVBS+AUDIO L/R, Coaxial,RF Modulator(Optional) | |||
| HDMI | HDMI(up to 1080P) output | |||
| II. Main Features: | ||||
| Standard | HD DVB-S2 ; HD DVB-T2 ;DVB-C Complian | |||
| Encrypt | yes | |||
| RF Video Modulator | Option | |||
| GPRS Module | Option | |||
| Power Supply | Input 220V ~240V, 50/60Hz | |||
| Video Decode | MPEG-2 MP HL;MPEG4/H.264 BP MP&HP L4.1;AVS profile L6.1/4.0/2.0 | |||
| PAL/NTSC | Automatic PAL/NTSC conversion | |||
| Channels Number | 10000 channels TV and Radio programmable | |||
| Favorites | 8 different favorite groups selection | |||
| OSD Language | English German French Portuguese Spanish Italian Russian Turkish Polish Arabic Farsi | |||
| EPG | Fully support to 7 days Electronic Program Guide(EPG);XML EPG | |||
| Picture | JPEG,BMP,PNG,GIF Supported | |||
| OSD Color | 32-bits OSD with anti-flickering | |||
| Channel Search | Channel search in automatic, manual and network search | |||
| Channel Edit | Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||
| Parental Ctrl | Parental control for channels | |||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | |||
| SoftUpgrade | Software upgrade through USB or URAT | |||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||
| Subtitle | Subtitle support | |||
| Teletext | VBI insertion for Teletext,CC and WSS | |||
| Save Channel | Automatic save for last channel | |||
| Ethernet | Support RMII interface, Internet Sharing | |||
| RS232S | Support TWIN and Software upgrade | |||
| CAS | Smartcard reader built-in | |||
| III.Electric Performance | ||||
| 1.Memory Size: | ||||
| Flash Memory | 64M Bits Serial Flash | |||
| DDR2 Memory | 1G Bits | |||
| 2.DVB-S2 Part | ||||
| Input Frequency Range | 950MHZ-2150MHZ | |||
| RF input Signal LEVEL | -80/-20dBM | |||
| Active Ant Power | 13/18V DC 400mA MAX,Overload Protection | |||
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD | |||
| Demodulation | QPSK,8PSK,16APSK,32APSK | |||
| DiSEqC Protocols | DiSEqC 1.0, 1.1, 1.2, 1.3 USALS Compatible | |||
| 3.DVB-T2 Part | ||||
| Input Frequency Range | 174~230MHz,470~862MHz | |||
| RF input Signal LEVEL | -15- -75dBm | |||
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD | |||
| Active Ant Power | 5V DC 100mA MAX,Overload Protection | |||
| Demodulation | QPSK,16QAM,64QAM,256QAM | |||
| OFDM Spectrum | 2K,4K, 8K,16K,32K | |||
| Band Width | 6MHz ,7MHz,8MHz | |||
| 4.DVB-C Part | ||||
| Input Frequency Range | 50MHz ~862MHz | |||
| RF input Signal LEVEL | -15- -75dBm | |||
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD | |||
| Active Ant Power | 5V DC 100mA MAX,Overload Protection | |||
| Demodulation | 16QAM,32QAM,64QAM,256QAM | |||
| 5.USB Decode | ||||
| PVR | Support | |||
| Media Supporting | USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card | |||
| File system | FAT32, NTFS (only support first partition) | |||
| USB | PVR with USB HDD, Time shifting with USB HDD | |||
| 6.Multimedia support format | ||||
| movie | mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp | |||
| music | mp3 | |||
| photo | JPG, BMP, PNG, GIF | |||
| 7.Video Decode | ||||
| Video Decode | High Definition MPEG4 AVC/H.264 HP L4.1,MPEG-2 MP HL/ML | |||
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||
| 8.Audio Decode | ||||
| Audio Decode | MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC | |||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||
| Sampling Frequency | 32KHz, 44.1KHz, 48KHz | |||
| 9.Environment | ||||
| Input Voltage | Input 220V ~240V, 50/60Hz | |||
| Consumption | 20W Max | |||
| Temperature | 0℃ to +50℃ | |||
| Humidity | <95% | |||

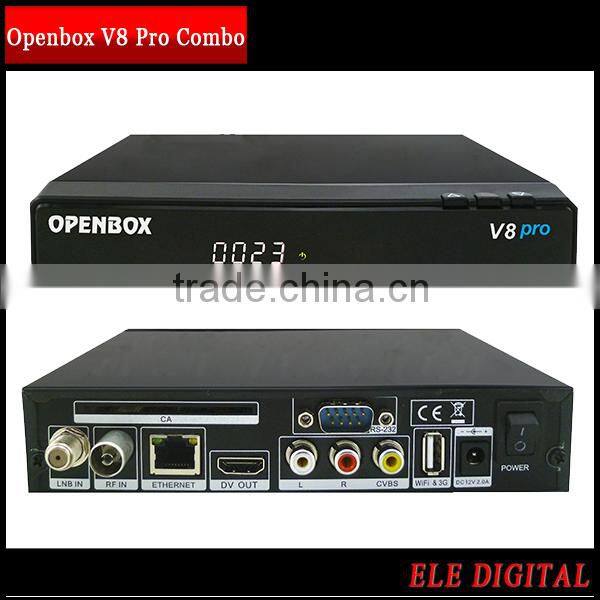

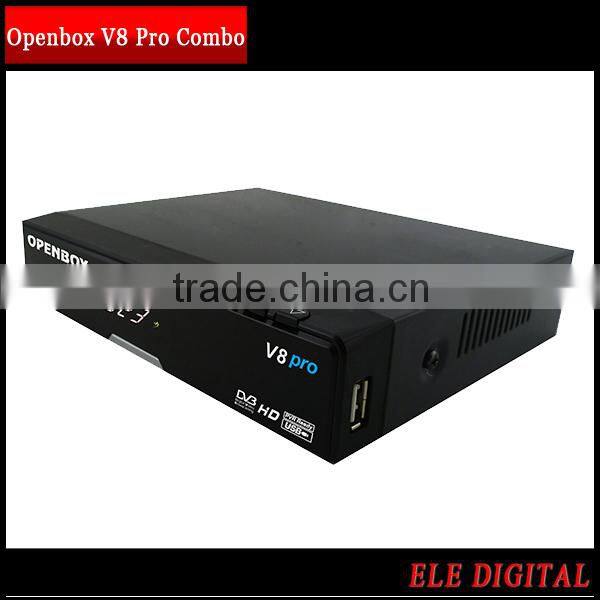

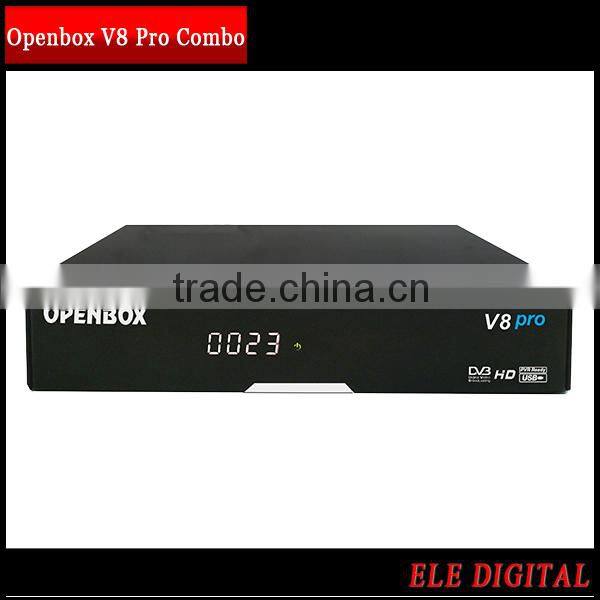

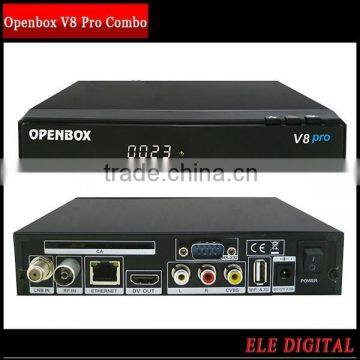

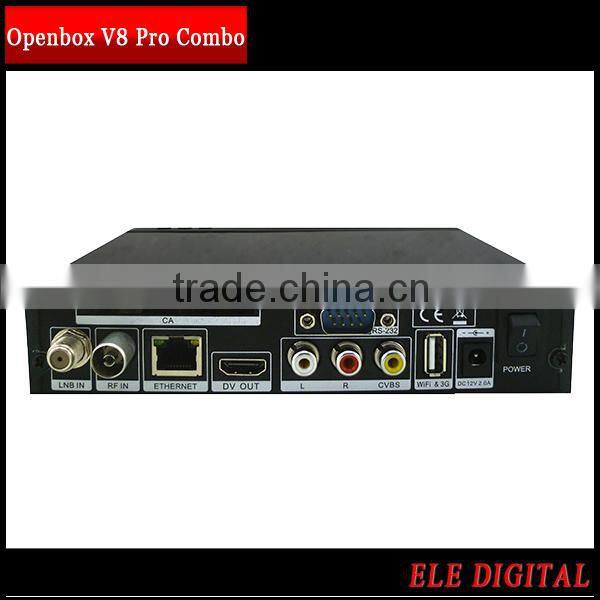

Product photos:
