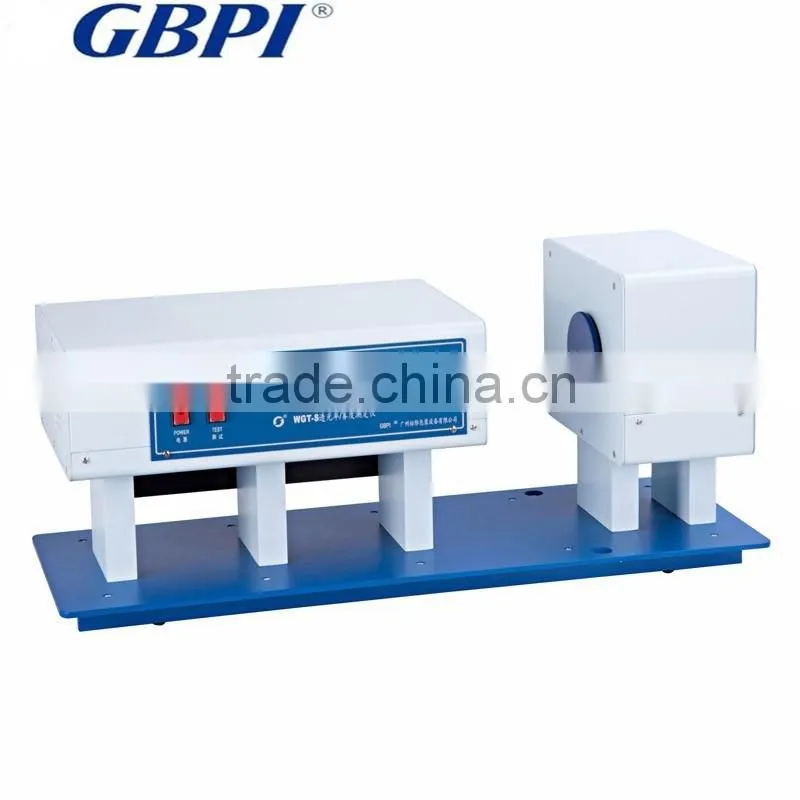

WGT-S Digital Haze Meter
Functions
WGT-S Light Transmittance Rate and Haze Test Instrument applies to test all transparent and semi-transparent parallel plane samples (plastic plates, sheets, etc.) light transmittance, haze test, liquid samples (water, drinks, etc.) and determination of turbidity or clarity. It is suitable for scientific research units, universities, plastic products, packaging films, coatings, printing ink and other related industries.
Digital Haze Meter
Standards
GB2410-2008, ASTMD1003-2007, JISK7105-81
Techinical Parameter
Warm-up time: 30min
Accuracy: light transmittance: 1%; haze degree: 0.1% for H ≤ 0.5%, 0.3% for H > 0.5%
Repeatability: light transmittance: 0.5%; haze degree: 0.05% for H ≤ 0.5%, 0.1% for H > 0.5%
Test range: light transmittance 0 ~ 100.0%, haze degree 0 ~ 30.00%
Minimum reading: light transmittance 0.1%, haze degree 0.01%
Instrument size: 740x270x320mm
Features:
Optical system: collimated illumination, diffusion, integrating sphere receiving
Sample size(diameter): into window 25mm, out of window 21mm
Light source: C type (DC12V50W halogen tungsten + color temperature chip)
Receiver: silicon photonic battery + vision function correction chip (conform to V (in) standard value)
Electronic system: LED digital display; BCD code print output serial interface; automatic operation system; auto switch of light transmittance and haze degree, auto measuring, auto calibration; microcomputer data processing; consecutive testing; average value display.
Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
