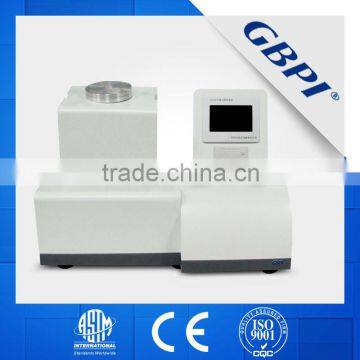

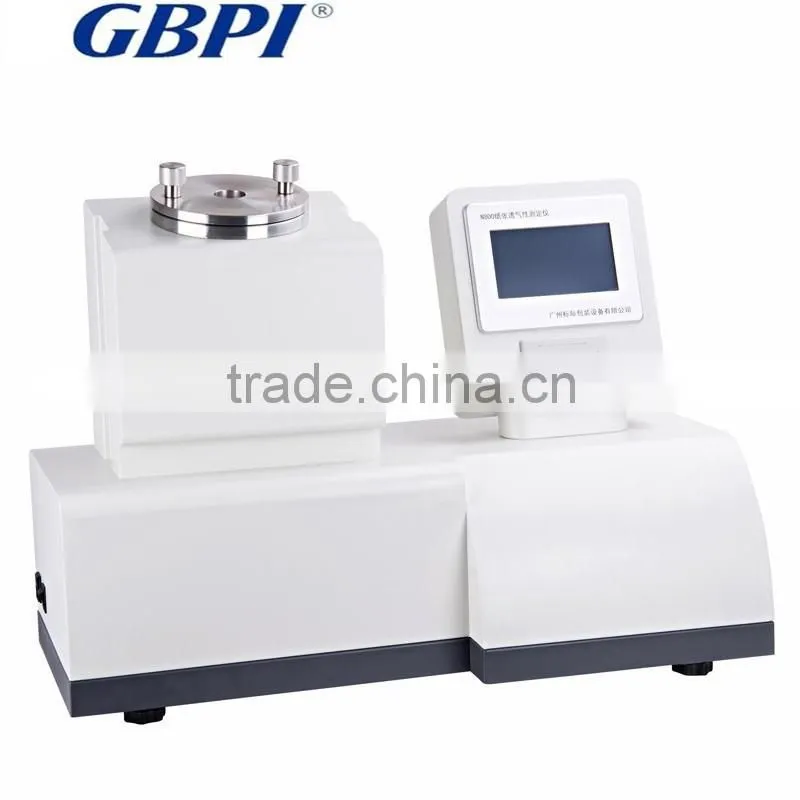

N800 Gas Transmission Rate Tester for Papeboard
Gas Transmission Rate Tester for Papeboard
Standards:
GB/T 22819-2008, QBT1667-1998, GBT458-2008
Function:
This instrument tests the gas transmission rate of paper, paper board and so on.
Application:
*Paper and paper board
Working principle
Keeping a pressure difference, test the flow volume of gas vertically penetrating the test area of sample in a certain period of time, so as to calculate the gas transmission rate.
Techinical parameter:
Test range | 0.1~39000μm/(Pa.s) |
Test accuracy | 0.1μm/(Pa.s) |
Pressure range | 0.1~200Pa |
Test area | 38.5cm2 |
Sample thickness | ≤ 10mm |
Features:
1. Pressure adjustable; auto measure, auto calculate.
2. Can connect to computer and print report.
3. Easy and simple to operate.
4. Dynamic display of data, clear to see.
5. Support unit conversions.
After sale Service:
1. 2 years coverage
2. Speedy reply, 12hrs response to customer questions
3. Software free update
4. Minor maintenance ---parts ship within 24 hrs
5. Major maintenance---Technical will be sent within 15 days
6. Free inhouse training for customer operator
