QUICK 870 Hot Plate Smd Rework Machine

QUICK 870 Hot Plate Smd Rework Machine photo-1
QUICK 870 Hot Plate Smd Rework Machine photo-2
QUICK 870 Hot Plate Smd Rework Machine photo-3
QUICK 870 Hot Plate Smd Rework Machine photo-4
QUICK 870 Hot Plate Smd Rework Machine photo-5
QUICK 870 Hot Plate Smd Rework Machine photo-6
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
QUICK
Model Number:
QUICK 870
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name QUICK
Model Number QUICK 870
Voltage 110V/220V
Current N/A
Rated Capacity 800W
Rated Duty Cycle N/A
Dimensions 280*290*100mm
Weight 5.8kg
Usage Desoldering
Certification ISO9001
After-sales Service Provided Overseas third-party support available

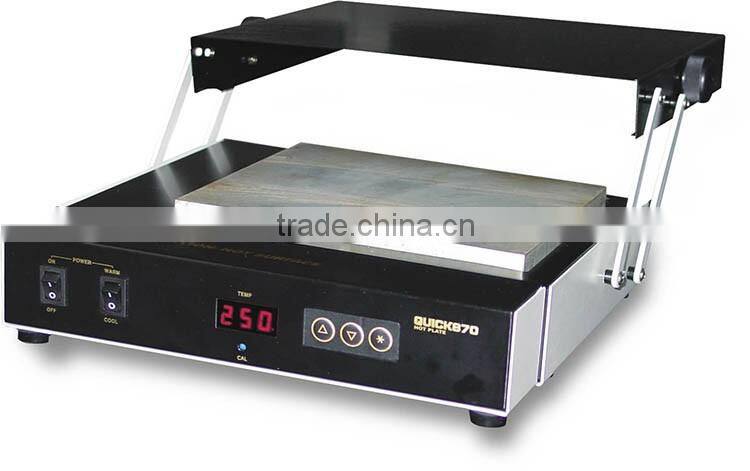

QUICK 870 hot plate smd rework machine

 QUICK 870 hot plate smd rework machine

Product Description

Festures of QUICK 870 pre-heat/reflow hot plate for desoldering heating:

1.special heater,surface temperature distributes evenly.

2.closed-loop sensor,PID control,precise and stable temperature.

3.two switches control power supply and heating separately.actual temperature of the plate displays even under unheated conditions,can avoid accidents.

4.suitable for PCB preheating and other proess which requires whole and even heating.

Specifications:

Power consumption800W
Plate area180*200mm
Plate materialaluminum
Temperature sensorK-type thermocouple
Temperature range50-300℃
Ambient conditions0-40℃
Temperature stability±2℃
Dimensions280(L)*290(W)*100(H)mm
Weightabout 5.8kg
Related Products



There are many other soldering rework stations and accessories,please kindly see below.

If there is any model you like,please feel free to contact with us!



QUICK 870 hot plate smd rework machineQUICK 870 hot plate smd rework machine

Certifications

QUICK , as a leading company of soldering station products,has got CE certificates for most of our products,and also approved ISO9001 & ISO14001.

QUICK 870 hot plate smd rework machine

Company Information

QUICK 870 hot plate smd rework machine

  Established in 1994 and located in Changzhou,QUICK Soldering has grown to be the leading manufacturer of soldering station equipments and other productions in China.It is widely recognized as a comprehensive solution provider in eletronics assembly industry.

  QUICK Soldering takes pride in its professional teams of R&D,manufacturing and sales.ISO9001 Quality Management and ISO14001 Environment Protection System are both implemented to improve and perfect it in all aspects.

  Nowadays,QUICK products consists of various types of soldering equipments,such as solderingstation,rework soldering station,soldering robot,laser soldering robot,quantitative solder melting&dropping soldering robot,infrared&hot air BGA rework system and other related equipments like dispensing robot,screwing robot,fume extractor,static eliminator etc.Automantic assembly lines combined with soldering,dispensing,screwing,AOI and jig-returing etc can also be customized as per different applications.

  QUICK Soldering adheres to the principle of providing customers with superior quality products at reasonable prices and excellent services.As it dis in the past,QUICK Soldering will continue to offer customers an sll-round support in future.It's the sincere wish to establish a long term business relationship with customers who are interested in the products.

OUR WORKSHOP & SHOWROOM:

QUICK 870 hot plate smd rework machine

Exhibition

QUICK 870 hot plate smd rework machine

Why choose QUICK?

1.We are the largest and most professional manufacturer of soldering station products.

2.Our company has passed ISO9001 & ISO14001.

3.Over 60 R&D engineers, with more than 20 years experience.

4.Have global users in many countries such as Korea,Vietnam,India,Mexico,Brazil,North Africa,European countries etc.

5.High quality & competitive price.

6.Most products have CE certificates.

7.100% NEW from QUICK factory.

8.100% QC inspect before shipment.

9.OEM is acceptable.

Warranty

  All products purchased in QUICK are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts. If quality problems happen in guarantee period,our company provides technical supports and fittings.Our local distributor will help to solve your problems timely after receiving telephone or emails. If you are caught in some problems when using our products, welcome to contact us at any time.

Contact

QUICK is a leading company which is specialized in providing soldering station and other electronic soldering equipments.

If there is anything you'd like to know,please contact us without hesitation.

You can contact us as bellow:

QUICK 870 hot plate smd rework machineQUICK 870 hot plate smd rework machine
